Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > AMC 20 ...28 splines

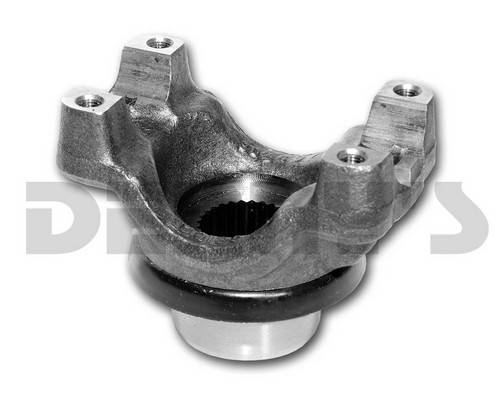

Dana Spicer 3-4-11931-1X Pinion Yoke fits AMC 20 Rear End 28 splines fits 1350 series u-joint 3.625 x 1.188

Part Number:
3-4-11931-1X

UPC:

023913231651

Your Cost $155.93

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 3-4-11931-1X

1350 Pinion Yoke fits AMC 20 Rear End

1350 series
Fits AMC 20 rear end with 28 spline pinion
Strap and Bolt style
SPLINE OD = 1.229
D = 1.188
E = 3.625
Q = 1.375
R = 1.844
S = 3.031
Counterbore Depth = .120

Spicer

Dana Spicer 3-4-11931-1X Pinion Yoke fits AMC 20 Rear End 28 splines fits 1350 series u-joint 3.625 x 1.188

Dana Spicer 3-4-11931-1X Pinion Yoke fits AMC 20 Rear End 28 splines fits 1350 series u-joint 3.625 x 1.188

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $155.93

Dana Spicer 3-4-11931-1X

1350 Pinion Yoke fits AMC 20 Rear End

1350 series
Fits AMC 20 rear end with 28 spline pinion
Strap and Bolt style
SPLINE OD = 1.229
D = 1.188
E = 3.625
Q = 1.375
R = 1.844
S = 3.031
Counterbore Depth = .120
