DANA SPICER 3-70-28X Strap and Bolt set
Part #:
3-70-28X
Your Cost $5.25

DANA SPICER 3-70-28X

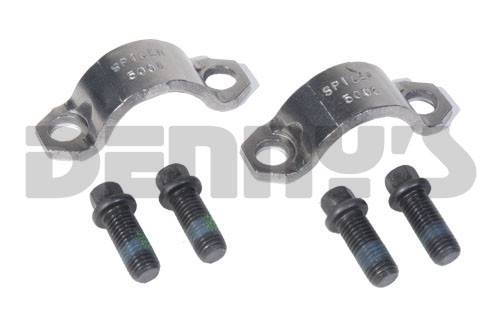

Strap and Bolt Set for Dana 1350 and 1410 Series pinion yoke.

  • Comes with 2 straps and 4 bolts.
  • Use on DANA 1350 and 1410 series pinion yokes and transfer case yokes
  • FITS BEARING CAP = 1 3/16 (1.187) inches
  • CL to CL = 1.806 inches
  • THREAD = 5/16 - 24 (.312 - 24)
  • BOLT LENGTH = .750
  • RECOMMENDED TORQUE = 25 - 30 LB. FT

Alternate part number





Spicer
DANA SPICER 3-70-28X Strap and Bolt set
DANA SPICER 3-70-28X Strap and Bolt set
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $5.25

DANA SPICER 3-70-28X

Strap and Bolt Set for Dana 1350 and 1410 Series pinion yoke.

  • Comes with 2 straps and 4 bolts.
  • Use on DANA 1350 and 1410 series pinion yokes and transfer case yokes
  • FITS BEARING CAP = 1 3/16 (1.187) inches
  • CL to CL = 1.806 inches
  • THREAD = 5/16 - 24 (.312 - 24)
  • BOLT LENGTH = .750
  • RECOMMENDED TORQUE = 25 - 30 LB. FT

Alternate part number


Model/Part #:  3-70-28X
Series 1350/1410
Fits Brg. Cap Dia. 1.187
Thread Dia. .312-24
Bolt Length .750
Strap No. 3-70-89
Bolt No. 231142
C/L to C/L 1.806
Bolt Torque (lb.ft) 25-30



DANA SPICER 3-70-28X Strap and Bolt set

DANA SPICER 3-70-28X Strap and Bolt set
