Dennys Driveshafts and Driveline Parts - PINION YOKES - Front and Rear End

Driveline Parts - PINION YOKES - Front and Rear End

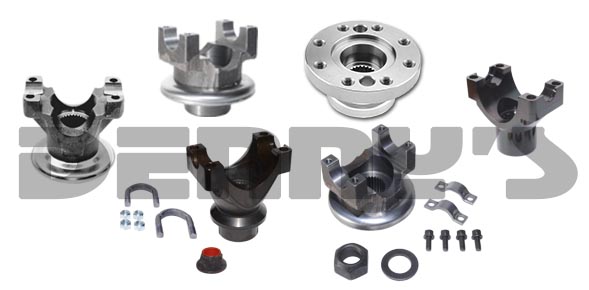

PINION YOKES and PINION FLANGES

Denny's Driveshafts offers a complete line of standard and high performance rear end pinion yokes and pinion flanges as well as four wheel drive truck front and rear end pinion yokes and transfer case yokes. They come in 1310, 1330, 1350, 1410 and 1480 series, GM 3R series and Dodge 7260 and 7290 series.

PINION YOKES and PINION FLANGES

Denny's Driveshafts offers a complete line of standard and high performance rear end pinion yokes and pinion flanges as well as four wheel drive truck front and rear end pinion yokes and transfer case yokes.   They come in 1310, 1330, 1350, 1410 and 1480 series, GM 3R series and Dodge 7260 and 7290 series.

Please select from the choices listed

image/jpeg



FOR OUTSIDE SNAP RING STYLE U-JOINTS ....

Select 1310, 1330, 1350 and 1410 Series pinion yokes and transfer case yokes WITH LOCATING TABS.



 image/jpeg

FOR INSIDE "C" CLIP STYLE U-JOINTS ....

Select GM 3R Series or DODGE 7260 and 7290 Series pinion yokes and transfer case yokes WITHOUT LOCATING TABS.

.

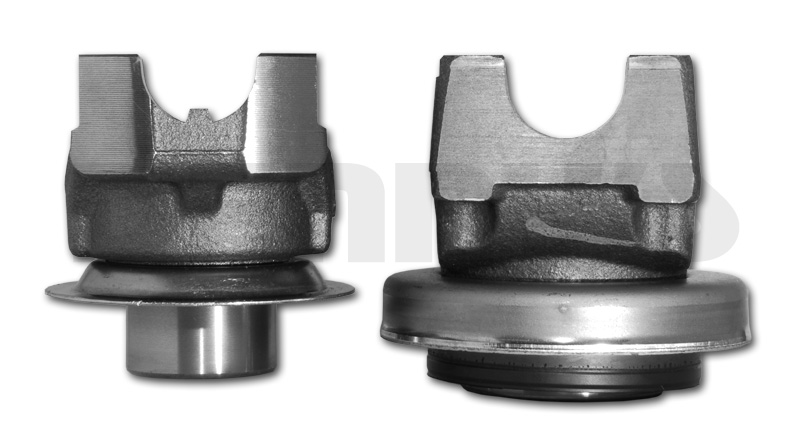

Take a look at the two pinion yokes below....Look at the area that holds the u-joint

The yoke on the LEFT has LOCATING TABS....Yoke on the RIGHT DOES NOT have Tabs

    • LEFT is typical of 1310, 1330, 1350, 1355, 1410, 1415, 1480 and 1485 series
    • RIGHT is typical of GM 3R Series and DODGE 7260 & 7290 Series
    • You will need to know which one you have to select the proper yoke

The pinion yoke on the LEFT has Locating Tabs ...The yoke on the Right DOES NOT have Tabs

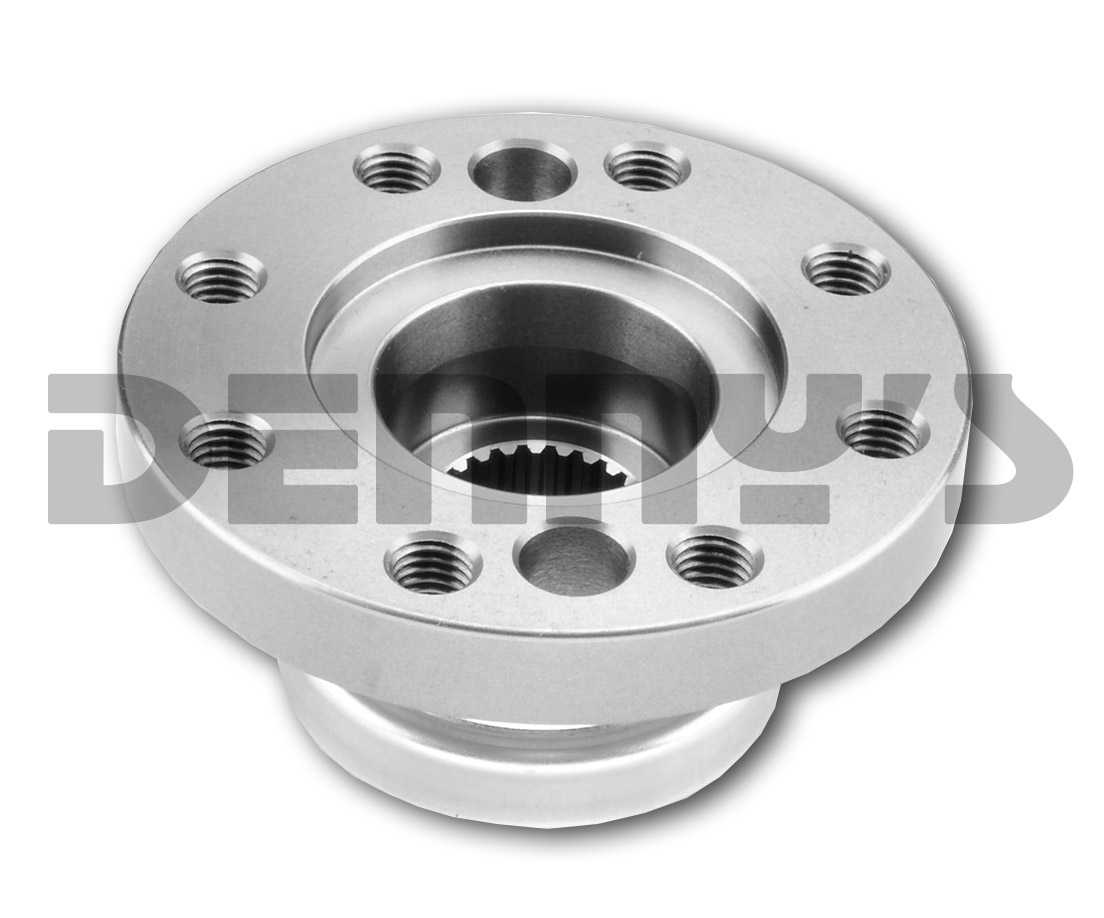

A Pinion Flange or Companion Flange requires a Flange Yoke on the driveshaft to match the bolt circle and pilot dimensions.

  • You will need to know the bolt circle and pilot dimensions to select the correct pinion flange to match your flange yoke



Pinion flanges in stock at Denny's Driveshafts

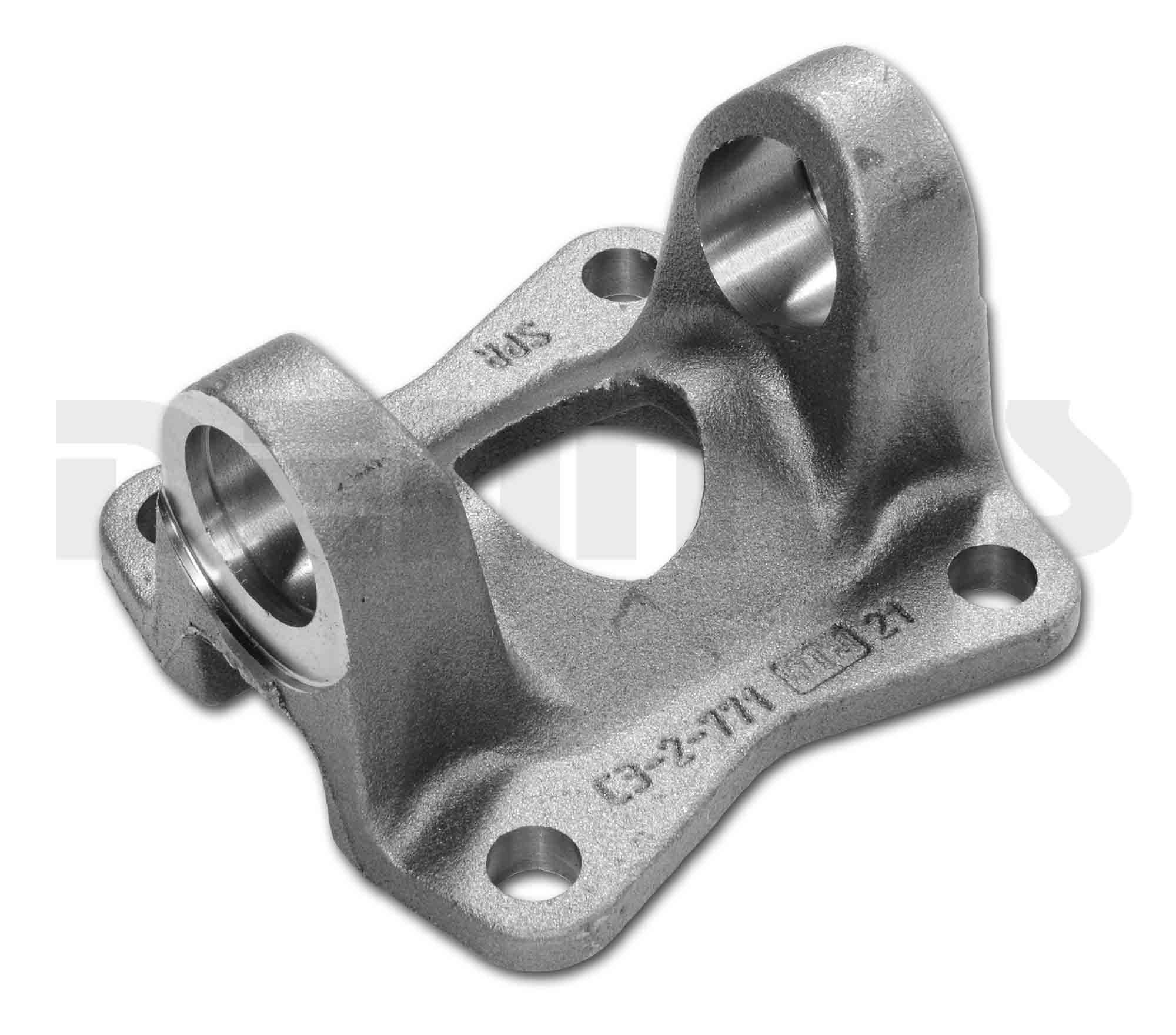

Flange Yokes come in a variety of u-joint sizes to match your driveshaft.

  • You will need to know the bolt circle, pilot and u-joint dimensions to purchase the correct flange yoke

Flange yokes in stock at Denny's Driveshafts

.



Click on the PARTS Below to see more info!



     You can find MORE INFO and PRICING about PINION YOKES & TRANSFER CASE YOKES for your specific car or truck by selecting the appropriate LINK at the TOP or BOTTOM of this page

 .
