Driveshaft and Driveline Parts > SPLINES for use with SLIP YOKE

Copyright Denny's Driveshafts

Scroll Down to view complete list of Splines

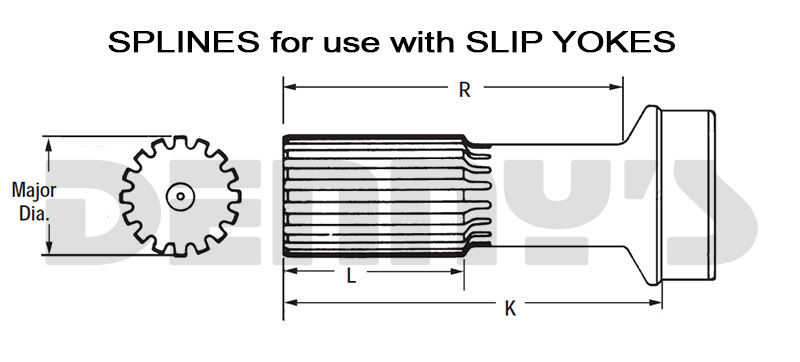

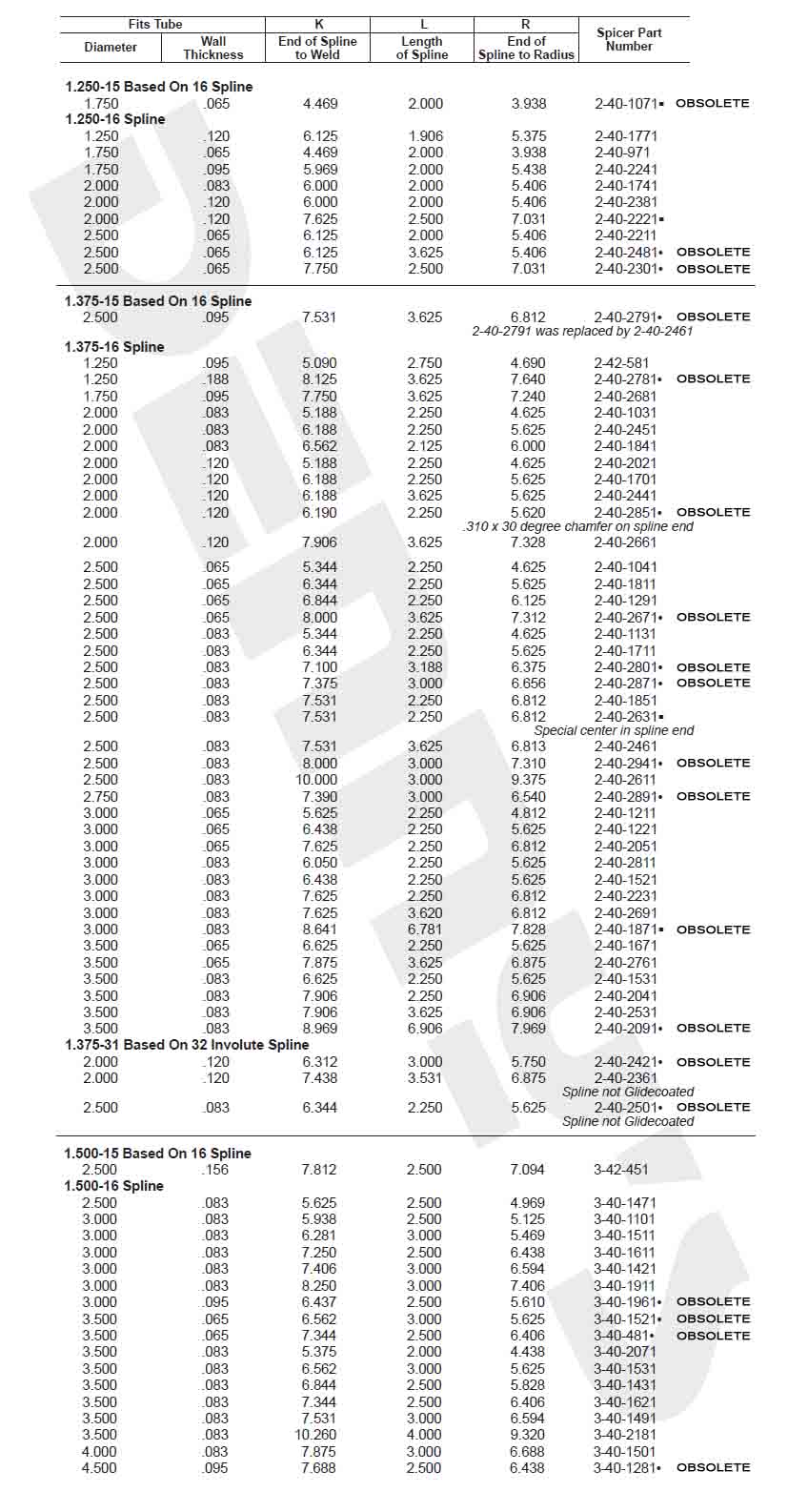

SPLINES for use with SLIP YOKE

Use with 1.250 x .095 TUBING

	Dana Spicer 1-42-31 SPLINE 4.281 inches Fits 1.25 inch .095 wall tube 1.062 x 16 splines for PTO power take off shaft applications CLICK HERE for More Details Part Number: 1-42-31	$132.55	IN STOCK FREE SHIPPING

Use with 1.250 x .120 TUBING

	DANA SPICER 2-40-1771 SPLINE 6.125 inches Fits 1.25 inch .120 wall tube CLICK HERE for More Details Part Number: 2-40-1771	$64.66	IN STOCK

Use with 2.000 x .083 TUBING

	DANA SPICER 2-40-2451 SPLINE 6.188 inches Fits 2.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 2-40-2451	$72.23	FACTORY DIRECT

Use with 2.000 x .120 TUBING

1.335 - 19/20 splines

	Dana Spicer 2-40-5023529 Spline long travel 8.875 inches 19/20 splines fits 2.0 OD x 0.120 wall tubing CLICK HERE for More Details Part Number: 2-40-5023529	$138.68	IN STOCK

1.375 - 16 splines

	DANA SPICER 2-40-1701 SPLINE 6.188 inches Fits 2.0 inch .120 wall tube 1.375 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 2-40-1701	$43.21	IN STOCK

	DANA SPICER 2-40-2661 SPLINE 7.906 inches Fits 2.0 inch .120 wall tube 1.375 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 2-40-2661	$75.95	IN STOCK

	NEAPCO N2-40-1701-2 SPLINE 7.750 inches 1.375 x 16 Fits 2.0 inch .120 wall tube CLICK HERE for More Details Part Number: N2-40-1701-2	$105.44	IN STOCK

1.375 - 31/32 splines

	DANA SPICER 2-40-2361 SPLINE 7.438 inches Fits 2.0 inch .120 wall tubing 1.375 inch Diameter with 31/32 Splines CLICK HERE for More Details Part Number: 2-40-2361	$69.95

1.500 - 16 splines

	NEAPCO N3-40-2012 SPLINE 8.76 inches Fits 2.0 inch .120 wall tube CLICK HERE for More Details Part Number: N3-40-2012	$137.74	IN STOCK FREE SHIPPING

Use with 2.500 x .083 TUBING

1.375 - 16 splines

	DANA SPICER 2-40-1711 SPLINE 6.344 inches Fits 2.5 inch .083 wall tube 1.375 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 2-40-1711	$44.55	IN STOCK

	DANA SPICER 2-40-1851 SPLINE 7.531 inches Fits 2.5 inch .083 wall tube 1.375 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 2-40-1851	$64.24	IN STOCK

1.500 - 16 splines

	Dana Spicer 3-40-1471 SPLINE 5.625 inches Fits 2.5 inch .083 wall tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1471	$97.41	FACTORY DIRECT

	NEAPCO N3-40-2508 SPLINE 8.76 inches fits 2.5 inch .083 wall tube CLICK HERE for More Details Part Number: N3-40-2508	$129.95	IN STOCK FREE SHIPPING

Use with 2.500 x .095 TUBING

1.375 - 16 splines

	NEAPCO N2-40-1712 SPLINE 6.34 inches Fits 2.5 inch .095 wall tube CLICK HERE for More Details Part Number: N2-40-1712	$76.47	IN STOCK

	NEAPCO N2-40-2791-1 SPLINE 8.12 inches Fits 2.5 inch .095 wall tube CLICK HERE for More Details Part Number: N2-40-2791-1	$110.95	IN STOCK FREE SHIPPING

1.500 - 16 splines

	NEAPCO N3-40-2509 SPLINE 8.76 inches fits 2.5 inch .095 wall tube CLICK HERE for More Details Part Number: N3-40-2509	$137.74	IN STOCK FREE SHIPPING

Use with 2.500 x .120 TUBING

	NEAPCO N3-40-2512 SPLINE 8.76 inches fits 2.5 inch .120 wall tube CLICK HERE for More Details Part Number: N3-40-2512	$137.74	IN STOCK FREE SHIPPING

Use with 2.750 x .065 TUBING

	Neapco N2-40-1221-1 Spline 6.44 inches fits 2.75 inch .065 wall tube CLICK HERE for More Details Part Number: N2-40-1221-1	$88.21	IN STOCK

Use with 3.000 x .083 TUBING

1.375 - 16 splines

	Dana Spicer 2-40-1521 SPLINE 6.438 inches Fits 3.0 inch .083 wall tube CLICK HERE for More Details Part Number: 2-40-1521	$57.95	IN STOCK

	Dana Spicer 2-40-2231 SPLINE 7.625 inches Fits 3.0 inch .083 wall tube CLICK HERE for More Details Part Number: 2-40-2231	$79.43	IN STOCK

	NEAPCO N2-40-2231 SPLINE 7.625 inches Fits 3.0 inch .083 wall tube CLICK HERE for More Details Part Number: N2-40-2231	$87.26	IN STOCK

1.375 - 31/32 splines

	NEAPCO N3-53-1181 SPLINE 8.81 inches Fits 3.0 inch .083 wall tube CLICK HERE for More Details Part Number: N3-53-1181	$101.28	IN STOCK FREE SHIPPING

1.500 - 16 splines

	Dana Spicer 3-40-1101 SPLINE 5.938 inches Fits 3 inch .083 wall tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1101	$84.83	IN STOCK

	Dana Spicer 3-40-1511 SPLINE 6.281 inches Fits 3 inch .083 wall tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1511	$86.61	IN STOCK

	Dana Spicer 3-40-1611 SPLINE 7.250 inches Fits 3 inch .083 wall tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1611	$69.43	IN STOCK

	NEAPCO N3-40-1611 SPLINE 7.250 inches Fits 3.0 inch .083 wall tube CLICK HERE for More Details Part Number: N3-40-1611	$73.72	IN STOCK

	Dana Spicer 3-40-1421 SPLINE 7.406 inches Fits 3 inch .083 wall tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1421	$86.40	IN STOCK

	Dana Spicer 3-40-1911 SPLINE 8.250 inches Fits 3 inch .083 wall tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1911	$106.95	IN STOCK FREE SHIPPING

Use with 3.500 x .083 TUBING

1.375 - 16 splines

	Dana Spicer 2-40-1531 SPLINE 6.625 inches Fits 3.5 inch .083 wall tube CLICK HERE for More Details Part Number: 2-40-1531	$87.06	IN STOCK

	Neapco N2-40-2091 SPLINE 8.97 inches fits 3.5 inch .083 wall tube CLICK HERE for More Details Part Number: N2-40-2091	$139.95	IN STOCK FREE SHIPPING

1.500 - 16 splines

	NEAPCO N3-40-3508 SPLINE 8.76 inches Fits 3.5 inch .083 wall tube CLICK HERE for More Details Part Number: N3-40-3508	$137.74	IN STOCK FREE SHIPPING

	Dana Spicer 3-40-1491 Driveshaft Spline 7.531 inches 1.5 inch x 16 fits 3.5 inch .083 wall steel tube CLICK HERE for More Details Part Number: 3-40-1491	$92.55	IN STOCK

	Dana Spicer 3-40-1621 Driveshaft Spline 7.344 inches 1.5 inch x 16 fits 3.5 inch .083 wall steel tube CLICK HERE for More Details Part Number: 3-40-1621	$73.89	IN STOCK

1.562 - 16 splines

	Dana Spicer 3-40-1411 SPLINE 10.750 inches Fits 3.5 inch .083 wall Driveshaft tube 1.562 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1411	$144.88	FACTORY DIRECT

	Dana Spicer 3-40-1571 SPLINE 6.750 inches Fits 3.5 inch .083 wall Driveshaft tube 1.562 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1571	$90.39	IN STOCK

	Dana Spicer 3-40-1871 SPLINE 8.750 inches Fits 3.5 inch .083 wall Driveshaft tube 1.562 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1871	$96.23	IN STOCK

Use with 3.500 x .095 TUBING

1.750 - 16 splines

	Dana Spicer 4-40-1031 SPLINE 12.0 inches Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 4-40-1031	$192.19

	Dana Spicer 4-40-721 SPLINE 9.219 inches Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 4-40-721	$157.52

	Dana Spicer 4-40-761 SPLINE 6.781 inches Fits 3.5 inch .095 wall tube 1.750 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 4-40-761	$97.73	FACTORY DIRECT

2.000 - 16 splines

	Neapco N5-40-501 Spline 9.562 inches fits 3.5 inch .095 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: N5-40-501	$187.90	FACTORY DIRECT

	Dana Spicer 5-40-451 SPLINE 7.562 inches Fits 3.5 inch .095 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-451	$202.51

	Dana Spicer 5-40-501 SPLINE 9.562 inches Fits 3.5 inch .095 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-501	$181.29

Use with 3.500 x .134 TUBING

	Dana Spicer 4-40-891 SPLINE 7.844 inches Fits 3.5 inch .134 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 4-40-891	$118.59	FACTORY DIRECT

	Dana Spicer 5-40-1011 SPLINE 9.688 inches Fits 3.5 inch .134 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-1011	$118.40	FACTORY DIRECT

	Dana Spicer 5-40-1041 SPLINE 10.188 inches Fits 3.5 inch .134 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-1041	$198.73	FACTORY DIRECT

	Dana Spicer 5-40-1151 SPLINE 8.562 inches Fits 3.5 inch .134 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-1151	$177.22

	Dana Spicer 5-40-1191 SPLINE 7.562 inches Fits 3.5 inch .134 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-1191	$191.53	FACTORY DIRECT

Use with 3.500 x .156 TUBING

	Dana Spicer 4-40-951 SPLINE 6.781 inches Fits 3.5 inch .156 wall tube 1.750 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 4-40-951	$94.55	FACTORY DIRECT

	Dana Spicer 5-40-1031 SPLINE 9.562 inches Fits 3.5 inch .156 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-1031	$225.72

Use with 3.550 x .207 TUBING

	Dana Spicer 6-40-701 SPLINE 10.344 inches Fits 3.550 inch .207 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-701	$312.04

Use with 4.000 x .083 TUBING

1.500 - 16 splines

	Dana Spicer 3-40-1501 SPLINE 7.875 inches Fits 4 inch .083 wall Driveshaft tube 1.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1501	$75.43	IN STOCK

1.562 - 16 splines

	Dana Spicer 3-40-1381 SPLINE 6.940 inches Fits 4 inch .083 wall Driveshaft tube 1.562 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1381	$215.76	IN STOCK FREE SHIPPING

	Dana Spicer 3-40-1551 SPLINE 8.940 inches Fits 4 inch .083 wall Driveshaft tube 1.562 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 3-40-1551	$136.94	FACTORY DIRECT

1.750 - 16 splines

	Dana Spicer 4-40-781 SPLINE 6.938 inches Fits 4.0 inch .083 wall tube 1.750 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 4-40-781	$160.50

Use with 4.000 x .134 TUBING

2.000 - 16 splines

	Dana Spicer 5-40-1051 SPLINE Fits 4.0 inch .134 wall tube 2.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 5-40-1051	$162.18	FACTORY DIRECT

2.500 - 16 splines

	Dana Spicer 6-40-521 SPLINE Fits 4.0 inch .134 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-521	$107.87	FACTORY DIRECT FREE SHIPPING

	Dana Spicer 6-40-541 SPLINE Fits 4.0 inch .134 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-541	$114.27	FACTORY DIRECT

	Dana Spicer 6-40-711 SPLINE Fits 4.0 inch .134 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-711	$273.92

Use with 4.095 x .180 TUBING

	Dana Spicer 6-40-851 SPLINE Fits 4.095 inch .180 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-851	$402.67

Use with 4.500 x .134 TUBING

2.500 - 16 splines

	Dana Spicer 6-40-621 SPLINE Fits 4.5 inch .134 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-621	$248.19	FACTORY DIRECT

	Dana Spicer 6-40-631 SPLINE Fits 4.5 inch .134 wall tube 2.5 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6-40-631	$315.13	FACTORY DIRECT

3.000 - 16 SPLINES

	Dana Spicer 6.5-40-191 SPLINE Fits 4.5 inch .134 wall tube 3.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6.5-40-191	$159.94	FACTORY DIRECT

	Dana Spicer 6.5-40-201 SPLINE Fits 4.5 inch .134 wall tube 3.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 6.5-40-201	$154.20	FACTORY DIRECT

Use with 4.500 x .259 TUBING

	Dana Spicer 8-40-101 SPLINE Fits 4.5 inch .259 wall tube 3.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 8-40-101	$260.54	FACTORY DIRECT FREE SHIPPING

	Dana Spicer 8-40-91 SPLINE Fits 4.5 inch .259 wall tube 3.0 inch Diameter with 16 Splines CLICK HERE for More Details Part Number: 8-40-91	$315.13	FACTORY DIRECT

GREASE

	Timken GR217C Premium All Purpose Industrial Grease Cartridge 14 oz. NLGI No. 2 Extreme Pressure Lubricant CLICK HERE for More Details Part Number: GR217C	$8.95	SOLD OUT

	DANA SPICER SPL1051 Ultra Premium Synthetic Spline and Slip Yoke Grease lubricant 14-oz. Tube CLICK HERE for More Details Part Number: SPL1051 TUBE	$17.94	IN STOCK
