Neapco N2-4-5341 CV YOKE 1310 Series 32 Spline for NP 203 205 208 241 Transfer Case

Part Number:
N2-4-5341

UPC:

083869002682

Your Cost $83.95

STATUS: IN STOCK

NEAPCO N2-4-5341

1310 Series CV Yoke NP203 NP205 NP208 Transfer Case 32 spline

Neapco N2-4-5341 CV YOKE 1310 Series 32 Spline for NP 203 205 208 241 Transfer Case

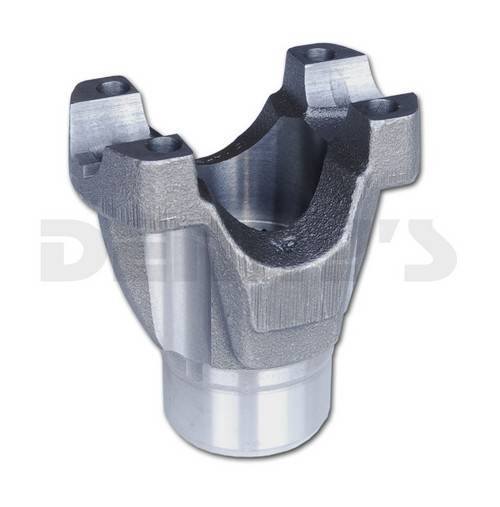

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $83.95

NEAPCO N2-4-5341

1310 Series NP203 NP205 NP208 Transfer Case 32 spline CV style yoke

Use this 1310 series CV Yoke to replace your original equipment NON CV yoke when installing a 1310 Series CV Driveshaft onto any fixed yoke style New Process Transfer Case with a 32 spline output

32 spline
1.875 seal diameter
- This yoke will require a new rear output seal. Please see the bottom of this page for our CV Yoke Replacement Seals
1310 Series is 3 7/32 between tabs with 1.062 bearing cap diameter
Requires 1 1/8 inch Socket Head Nut. See listing at bottom of page.
- This yoke may require the purchase of a new nut to replace original. To be sure if you will need the new nut please check your original nut and if you need a socket larger than 1 1/8 inch to remove your original nut then you will need the new nut. Please see the bottom of this page for CV Yoke Replacement Nut.
Requires 4 CV Bolts to connect 1310 CV Driveshaft to this yoke. See listing at bottom of page
SPLINE OD = 1.401
D = 1.062
E = 3.219
Q = 2.000
R = 1.875
S = 3.875

Neapco N2-4-5341 CV YOKE 1310 Series 32 Spline for NP 203 205 208 241 Transfer Case

You May Also Need These Parts to Complete the Job

DANA SPICER 44189 NUT for REAR OUTPUT NP 203, 205, 208 and 241 Transfer Case Part#: 44189 $2.95	CV Yoke Bolts .312 x 24 Fine Thread for NP 203, 205, 208 and 241 CV Yokes Part#: 4289-516 $2.95
S1875-1 Rear output seal for CV Yoke 2.750 OD with 1.875 ID for 1973-1979 NP 203 Part#: S1875-1 $14.95	S1875-2 Rear output seal use with CV Yoke 3.066 OD with 1.875 ID for 1971-1979 NP 205 Part#: S1875-2 $13.95
