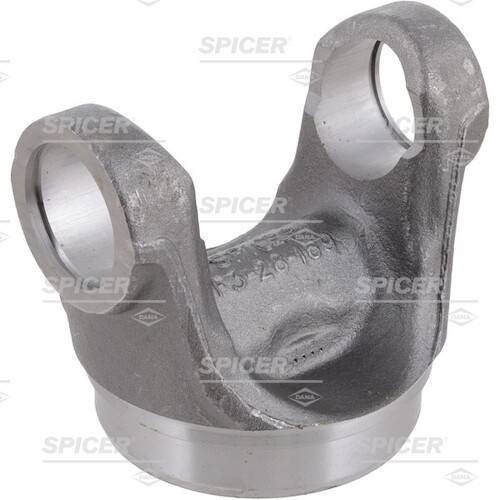

DANA SPICER 3-28-547 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tube - 35 degree joint angle
Part Number:
3-28-547


UPC:
023913214609
Your Cost $51.41 Sale Price $43.05
You Save $8.36
STATUS:  IN STOCK

DANA SPICER 3-28-547

1480 Series Weld Yoke

  • Fits 3.5 inch OD X .083 wall tubing
    • F - Butt Diameter = 3.345
  • Series = 1480
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 4.187
  • D - Universal Joint Bore = 1.375
  • H - Center of u-joint bore to point of weld = 2.312
  • This yoke has a 35 degree joint angle
  • Special Notes: USE KIT 5-188X, SPL55X

Spicer
DANA SPICER 3-28-547 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tube - 35 degree joint angle
DANA SPICER 3-28-547 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tube - 35 degree joint angle
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $51.41 Sale Price $43.05
You Save $8.36

DANA SPICER 3-28-547

1480 Series Weld Yoke

  • Fits 3.5 inch OD X .083 wall tubing
    • F - Butt Diameter = 3.345
  • Series = 1480
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 4.187
  • D - Universal Joint Bore = 1.375
  • H - Center of u-joint bore to point of weld = 2.312
  • This yoke has a 35 degree joint angle
  • Special Notes: USE KIT 5-188X, SPL55X



CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions

image/jpeg
DANA SPICER 3-28-547 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tube - 35 degree joint angle

DANA SPICER 3-28-547 Weld Yoke 1480 Series to fit 3.5 inch .083 wall tube - 35 degree joint angle

You May Also Need These Parts to Complete the Job

Dana Spicer 5-188X UNIVERSAL JOINT 1480 series Greaseable U-joint
$29.25
Dana Spicer SPL55X Universal Joint 1480 series NON Greaseable u-joint
$40.94
