7884112 Forged Pinion Yoke 1350 series U-Bolt Style Fits Dana 30, 44, 44IFS, 50, 50IFS with 26 spline pinion Chevy, GMC, Jeep, Ford, Dodge, International

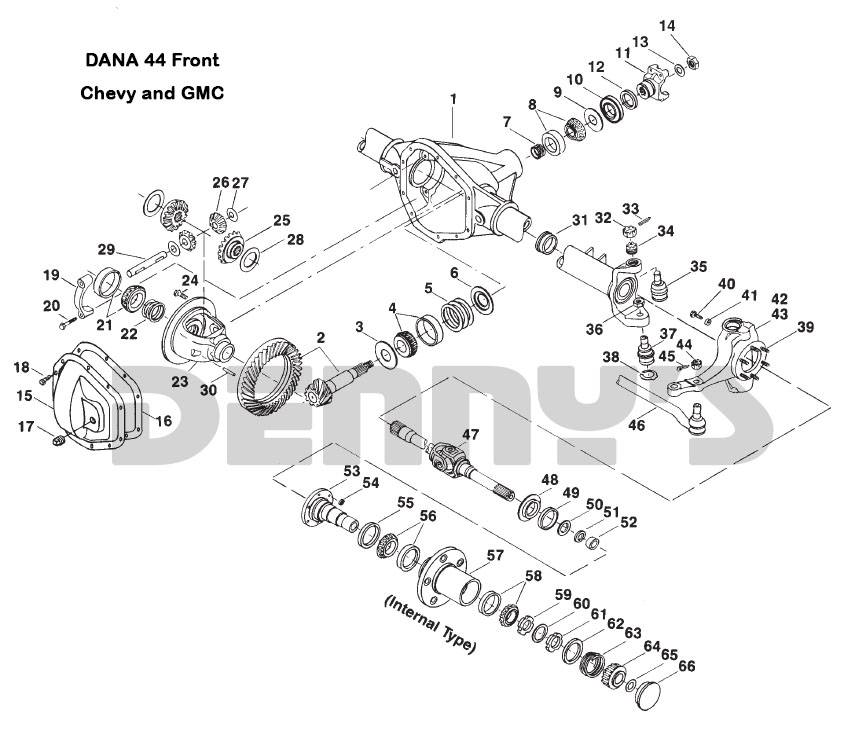

Diagram Number: 11
7884112

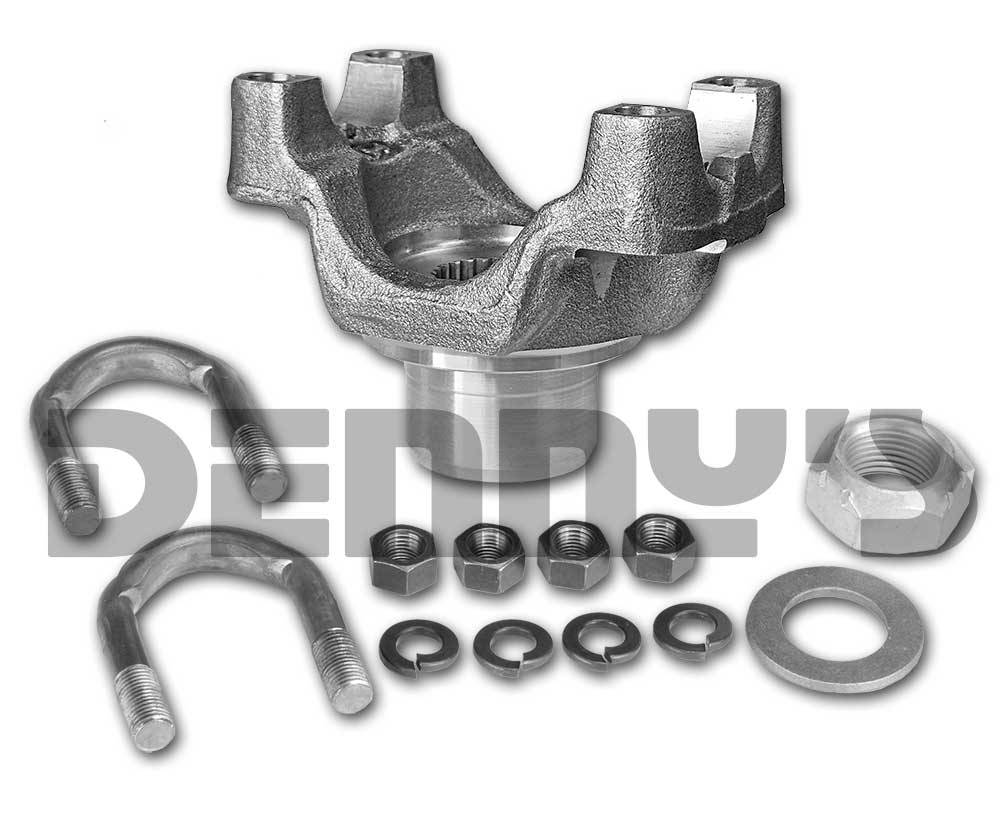

FORGED PINION YOKE
Fits Dana 30, 44, 44IFS, 50, 50IFS with 26 spline pinion
- U-Bolt set included
- 1350 series
- 26 SPLINE
Limited Supply: only 1 remaining
Pricing:
$149.95
Description
7884112
FORGED PINION YOKE
Fits Dana 30, 44, 44IFS, 50, 50IFS with 26 spline pinion
- U-Bolt set included
- 1350 series
- 26 SPLINE
- SPLINE OD = 1.146
- D = 1.188
- E = 3.625
- Q = 1.500
- R = 1.552
- S = 3.000
Details
- 7884112
- 7884112
- Spicer
- Available
- New
Categories
- CHEVY and GMC 4X4 Front - DANA 44 FRONT - CHEVY - PINION YOKE
- JEEP 4X4 Front and Rear - DANA 30 - DISCONNECT FRONT - PINION YOKE
- JEEP 4X4 Front and Rear - DANA 30 - FRONT - PINION YOKE
- JEEP 4X4 Front and Rear - DANA 44 FRONT - TJ RUBICON 03-06 - PINION YOKE - NUT - SEAL
- JEEP 4X4 Front and Rear - DANA 44 REAR - JEEP 1967 to 1996 - PINION YOKE
- JEEP 4X4 Front and Rear - DANA 44 REAR - JEEP TJ 1997 to 2006 - PINION YOKE
- AXLES and FRONT DIFF Parts 4X4 - CHEVY and GMC 4X4 Front - DANA 44 FRONT - CHEVY
- PINION YOKES - DANA 44 with 26 Spline Pinion - 1350 Series for Dana 44
- REAR AXLES and DIFFERENTIAL PARTS - DANA 44 REAR - JEEP 1967 to 1996 - PINION YOKE
- REAR AXLES and DIFFERENTIAL PARTS - DANA 44 REAR - JEEP TJ 1997 to 2006 - PINION YOKE
- DANA 30 FRONT - 1967-1971 FORD U-100 BRONCO - PINION YOKE - 1350 SERIES
- DANA 44 FRONT - FORD - PINION YOKE - 1350 SERIES
- DANA 44 IFS INDEPENDENT FRONT - FORD Bronco, F150, F250 1980-1996 - PINION YOKE - NUTS - SEAL - PINION YOKE
- DANA 50 IFS INDEPENDENT FRONT - FORD F250, F350 1980 to 1998 - PINION YOKE - 1350 series
- DANA 50 FRONT - FORD F250, F350, Excursion 1999 to 2002 - PINION YOKE - 1350 series
- PINION YOKE
