DANA 44

Front Axle and Diff Parts

Chevy K5 Blazer, K10, K20, GMC Jimmy, K15, K25



Dana 44 front axle parts for Chevy and GMC K5, K10, K20 at Denny's Driveshafts

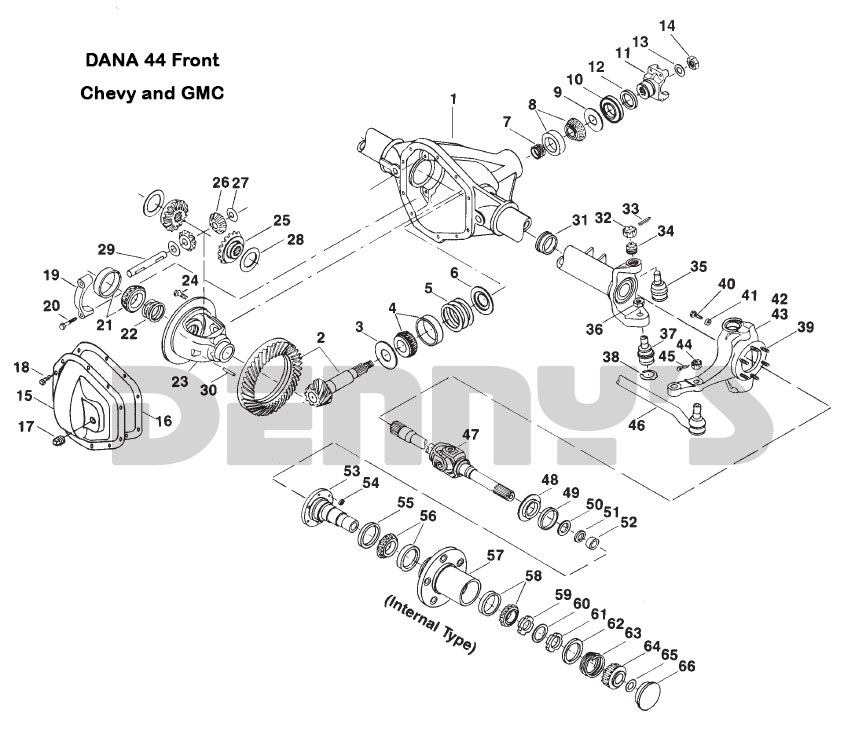

Diagram # Part # Description Diagram #
 Part #
 Description
 1  ****  Housing - for referrence only  39  36326-2  Spindle Stud and nut
 2  Multiple  Ring and Pinion Gear Set  40  ****  Stop Screw
 3  30764  Slinger - Inner Pinion Bearing  41  ****  Jam nut
 4  706031X  Inner Pinion Bearing  42  Multiple  AXLE shaft parts
 5  Multiple  Shims - Diff and Pinion kit  43  ****  Knuckle
 6  30765  Baffle  44  ****  Nut
 7  Multiple  Shims - Diff and Pinion kit  45  ****  Cotter Pin
 7  Multiple  Shims  46  ****  Tie Rod
 8  706030X  Outer Pinion Bearing  47  Multiple  AXLE shaft parts
 9  13575  Slinger - for Outer Bearing  48  36364  Dust shield
 10  44895  Pinion Seal  49  38128  Seal - see 706527X
 11  Multiple  Pinion Yoke  50  38106  Thrustwasher - see 706527X
 12  ****  Dust shield for pinion yoke  51  36361  Seal - see 706527X
 13  30186  Pinion Washer  52  550759  Inner Spindle bearing
 14  30185  Pinion Nut  53  Multiple  Spindle

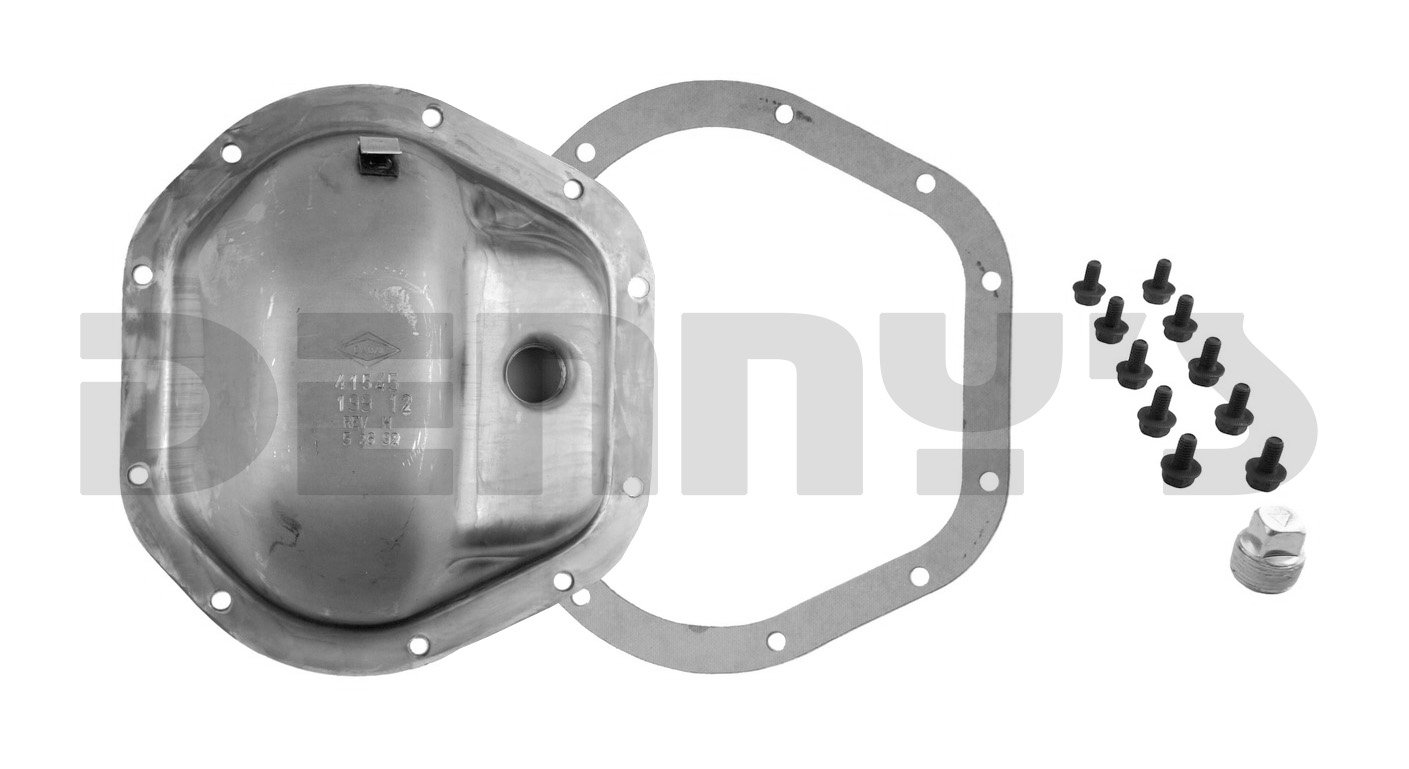

 15  706112X  Diff Cover  54  CLN375-24  Nut
 16  38615  Cover Gasket - RTV  55  Multiple  Wheel Hub Seal
 17  36472  Plug  56  Multiple  Inner Wheel Bearing
 18  34279  Cover bolts  57  ****  Hub
 19  ****  Diff bearing cap  58  Multiple  Outer Wheel Bearing
 20  48632-1  Cap bolt  59  21588  Inner Nut with Pin
 21  706032X  Diff Bearings  60  36569  Washer with holes
 22  Multiple  Shims  61  31139  Outer Nut
 23  Multiple  Diff Case  62  32589  Cup for spring
 24  41221  Ring Gear Bolt  63  35218  Spring
 25  40194  Diff Large Spider Gear  64  42667  Gear
 26  17717  Diff Small Spider Gear  65  31624  Snap ring
 27  13338-3  Cupped thrustwasher  66  44328  Cap
 28  32121  Flat Thrustwasher
 25, 26, 27, 28, 29, 30  706027X  Spider Gear Kit
 29  39194  Cross pin
 30  13449  Lock pin
 31  Multiple  Axle tube seal
 32 - 38  706116X  Ball Joint Set
