DANA 44 DISCONNECT Front Axle

DODGE RAM 1500 and RAM 2500LD with DISCONNECT on PASSENGER SIDE (Right Side)

1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001

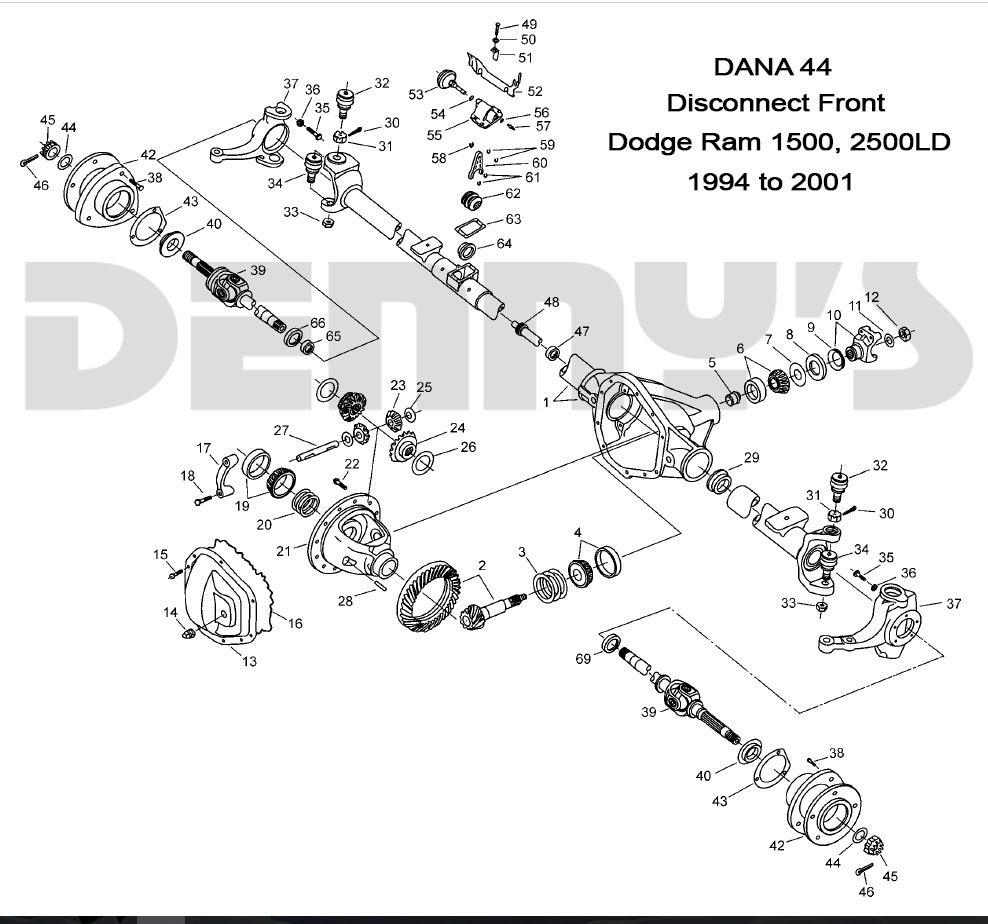

Denny's Driveshafts exploded view 1999 to 2001 Dodge Ram 1500, 2500LD with Dana 44 disconnect front axle

Diagram #	Part #	Description	Diagram #	Part #	Description
1	****	Housing - For reference only	35	*****	Bolt
2	Multiple	Ring and Pinion Gear Set	36	*****	Nut
3	701112X	SHIMS Kit - Inner Pinion Bearing	37	Dealer	Knuckle RH
4	706015X	INNER Pinion Bearing Kit	37	Dealer	Knuckle LH
5	44896	Collapsible Spacer/Crush Collar	38		Bolt
6	706030X	OUTER Pinion Bearing Kit	39	Multiple	Axle Shaft
7	13575	Slinger for outer pinion brg	40	45942	Slinger - Outer Stub Axle
8	Multiple	Pinion Seal	41	45918	Tone Ring
9	47762	Seal for end yoke	42	*****	Hub Assy
10	Multiple	Pinion Yoke	43	*****	Spacer
11	30186	Washer for Pinion nut	44	45523	Washer
12	30185	Pinion Nut	45	46085	Nut
13	707014X	Diff Cover	46	In Kit	Cotter Pin
14	36472	Plug	47	50429	Bushing
15	34279	Cover Bolt	48 and 65	75265X	Intermediate Shaft
16	Multiple	Cover Gasket / RTV Sealant	49 - 57	*****
17	****	Diff Bearing Cap	58	621097	Snap Ring
18	****	Bolt - Diff Brg Cap	59	620979	Snap Ring 2 required
19	706032X	Diff Side Bearings	60	42585	Shift FORK
20	706086X	SHIM Kit - Diff Brg	61	621059	Clip
21	Multiple	Diff Case	62	46401	Clutch Collar - Disconnect
22	41221	Ring Gear Bolt	63	41494	Gasket
23	45872	Small Spider Gear	64	Multiple	TUBE SEAL - RIGHT
24	45870	Large Spider Gear	65	43337	Bushing
25	13338-3	Thrustwasher for Sm Spider	66	50382	Seal - OBSOLETE
26	32121	Thrustwasher for Lg Spider	66	49254	Seal - OBSOLETE
27	39194	Diff Cross PIN
28	13449	Lock pin
29	620216	TUBE SEAL - LEFT
30 - 34	Multiple	Ball Joint Set

DANA 44 - RAM DISCONNECT FRONT - DODGE

AXLE PARTS

AXLE U-JOINTS

	Dana Spicer 5-760X Front Axle Universal Joint fits 1994 to 2001 DODGE Ram 1500, 2500LD DANA 44 Disconnect Front Axle CLICK HERE for More Details Part Number: 5-760X	$28.56	IN STOCK

AXLE NUT and WASHER

	Dana Spicer 46085 Nut and 45523 Washer set 1994 to 2002 Dodge Ram 1500, 2500, 3500 Outer Axle 4x4 with Dana 44 and Dana 60 Front CLICK HERE for More Details Part Number: 46085/45523 Diagram Number: 44-46	$9.20	IN STOCK

AXLE TUBE SEAL

Left Side

	Dana Spicer 620216 LEFT SIDE TUBE Seal 2.280 OD fits 1994 to 2001 Dodge RAM 1500, RAM 2500 LD with Dana 44 disconnect front axle replaces 48489 CLICK HERE for More Details Part Number: 620216 Diagram Number: 29	$5.95	IN STOCK

Right Side

	DANA SPICER 43154 Front Axle TUBE Seal fits RIGHT SIDE 1994 to 1999 DODGE RAM 1500, 2500 with DANA 44 DISCONNECT AXLE CLICK HERE for More Details Part Number: 43154 Diagram Number: 64	$8.66	IN STOCK

	Dana Spicer 48488 TUBE Seal fits RIGHT SIDE DODGE 1999 to 2001 RAM 1500, RAM 2500 with Dana 44 DISCONNECT Front Axle CLICK HERE for More Details Part Number: 48488 Diagram Number: 64	$16.41	IN STOCK

AXLES - OUTER

	Dana Spicer 74917X OUTER AXLE SHAFT Fits RAM 1500, 2500LD with DANA 44 DISCONNECT 1994 to 2001 with ABS BRAKES CLICK HERE for More Details Part Number: 74917X Diagram Number: 39-OUTER	$125.52	IN STOCK FREE SHIPPING

	DANA SPICER 49991 DANA 44 DISCONNECT OUTER AXLE fits 1994 to 2001 Dodge Ram 1500 and 2500 WITHOUT ABS BRAKES CLICK HERE for More Details Part Number: 49991 Diagram Number: 39-OUTER	$80.85	SOLD OUT

	DANA SPICER 45942 - SLINGER for Outer Axle 49991 CLICK HERE for More Details Part Number: 45942 Diagram Number: 40	$8.35	IN STOCK

AXLES - INNER

	DANA SPICER 76815-1X RIGHT SIDE 15 SPLINE INNER AXLE fits 1994 to 2001 Dodge Ram 1500 & 2500 with DANA 44 DISCONNECT CLICK HERE for More Details Part Number: 76815-1X Diagram Number: 39-IN	$280.95	FACTORY DIRECT FREE SHIPPING

	DANA SPICER 76814-1X LEFT SIDE INNER AXLE 30 Spline fits 1994 to 2001 Dodge Ram 1500 & 2500 with DANA 44 Disconnect Front Axle CLICK HERE for More Details Part Number: 76814-1X Diagram Number: 39-IN	$252.95	FACTORY DIRECT

AXLES - INTERMEDIATE

	Dana Spicer 75265X Intermediate Shaft 15 spline fits Passenger Side Disconnect 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle CLICK HERE for More Details Part Number: 75265X Diagram Number: 48	$119.68	IN STOCK FREE SHIPPING

AXLES - COMPLETE NO ABS

	Dana Spicer 10016892 Left Side complete axle assembly fits 1994 to 2000 Dodge Ram 1500 & 2500LD with Dana 44 NO ABS Brakes replaces old number 76813-1X CLICK HERE for More Details Part Number: 10016892 Diagram Number: 39	$249.95	IN STOCK FREE SHIPPING

	DANA SPICER 76812-1X DANA 44 RIGHT SIDE COMPLETE AXLE fits 1994 to 2001 Dodge Ram 1500 NO ABS CLICK HERE for More Details Part Number: 76812-1X Diagram Number: 39	$395.95	IN STOCK FREE SHIPPING

AXLES - COMPLETE WITH ABS

	DANA SPICER 74759-1X DANA 44 RIGHT SIDE COMPLETE AXLE fits 1994 to 2001 Dodge Ram 1500 WITH ABS CLICK HERE for More Details Part Number: 74759-1X Diagram Number: 39	~~$529.59~~ $446.14	FACTORY DIRECT

	Dana Spicer 74760-1X Left side complete axle fits 1994 to 2001 Dodge Ram 1500, 2500LD with Dana 44 WITH ABS Brakes CLICK HERE for More Details Part Number: 74760-1X Diagram Number: 39	~~$1,053.89~~ $887.82	FACTORY DIRECT

DISCONNECT PARTS

	Dana Spicer 42585 Shift Fork DODGE RAM 1500, 2500 with Dana 44 Disconnect Front Axle CLICK HERE for More Details Part Number: 42585 Diagram Number: 60	$16.95	IN STOCK

	Dana Spicer 620979 Shift Fork Snap Ring DODGE RAM 1500, 2500 with Dana 44 Disconnect Front Axle - Requires 2 CLICK HERE for More Details Part Number: 620979 Diagram Number: 59	$0.54	IN STOCK

	Dana Spicer 621059 Shift Fork Clip DODGE RAM 1500, 2500 with Dana 44 Disconnect Front Axle CLICK HERE for More Details Part Number: 621059 Diagram Number: 61	$0.92	IN STOCK

	Dana Spicer 621097 Shift Fork Snap Ring Fits Dana 44 Disconnect Front Axle CLICK HERE for More Details Part Number: 621097 Diagram Number: 58	$3.10	IN STOCK

	Dana Spicer 41494 Axle Disconnect Housing Cover Gasket Drivers Side 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect front axle CLICK HERE for More Details Part Number: 41494 Diagram Number: 63	$1.79	IN STOCK

	Dana Spicer 43337 BUSHING for Inner Axle Shaft Passenger Side 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 RIGHT Side Disconnect CLICK HERE for More Details Part Number: 43337 Diagram Number: 65	$7.95	IN STOCK

	Dana Spicer 46401 Disconnect Clutch Collar 15 spline fits 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 Disconnect CLICK HERE for More Details Part Number: 46401 Diagram Number: 62	$48.80	IN STOCK

	Dana Spicer 50429 BUSHING for Intermediate Shaft Passenger Side 1994 to 2001 DODGE Ram 1500, 2500LD with Dana 44 RIGHT Side Disconnect CLICK HERE for More Details Part Number: 50429 Diagram Number: 47	~~$39.46~~ $34.25	IN STOCK

BALL JOINTS

	Dana Spicer 707315X BALL JOINT SET for 1994 to 1999 DODGE RAM 1500 with DANA 44 DISCONNECT Front CLICK HERE for More Details Part Number: 707315X Diagram Number: 30-34	~~$93.82~~ $78.58	IN STOCK

	Dana Spicer 708072 BALL JOINT SET for 2000 to 2001 DODGE RAM 1500, 2500LD with DANA 44 DISCONNECT Front CLICK HERE for More Details Part Number: 708072 Diagram Number: 30-34	~~$152.21~~ $127.47	IN STOCK

DIFF PARTS

CRUSH SLEEVE / COLLAPSABLE SPACER

	Dana Spicer 44896 Dana 44 Crush Sleeve / Collapsable Spacer 1994 to 2001 DODGE RAM 1500, 2500LD CLICK HERE for More Details Part Number: 44896 Diagram Number: 5	$6.92	IN STOCK

DIFF CASE - EMPTY NO SPIDERS

	Dana Spicer 706024X Diff Case Kit NO SPIDERS fits Dana 44 front or rear 3.73 and down gear ratios CLICK HERE for More Details Part Number: 706024X Diagram Number: 21	~~$165.86~~ $138.90	IN STOCK

	Dana Spicer 706025X Diff Case Kit NO SPIDERS fits Dana 44 front or rear 3.92 and up gear ratios CLICK HERE for More Details Part Number: 706025X Diagram Number: 21	~~$156.51~~ $131.08	IN STOCK FREE SHIPPING

DIFF CASE and SPIDERS

	Dana Spicer 13338-3 Thrust Washer for Dana 44 cupped to fit small spider gear fits both OPEN DIFF and TRACK LOK Dana 44 Front 1994 to 2001 Dodge Ram 1500, 2500LD CLICK HERE for More Details Part Number: 13338-3 Diagram Number: 25	$0.26	IN STOCK

	Dana Spicer 707021-1X DANA 44 OPEN Standard Diff CARRIER ASSEMBLY LOADED Case Fits 1994 to 2001 Dodge Ram 1500, 2500LD with 3.73 and DOWN gear sets use with 30 spline axles FREE SHIPPING CLICK HERE for More Details Part Number: 707021-1X Diagram Number: 21	$465.95	IN STOCK FREE SHIPPING

	Dana Spicer 707022-1X DANA 44 Diff CARRIER ASSEMBLY LOADED Case fits 1994 to 2001 Dodge Ram 1500, 2500LD with 3.92 and UP gear sets use with 30 spline axles FREE SHIPPING CLICK HERE for More Details Part Number: 707022-1X Diagram Number: 21	$485.95	IN STOCK FREE SHIPPING

	Dana Spicer 707025-1X SPIDER Gear Kit for Dana 44 standard OPEN Diff fits 1.31 - 30 spline axles CLICK HERE for More Details Part Number: 707025-1X Diagram Number: 23-28	$199.95	IN STOCK FREE SHIPPING

DIFF COVER

	Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 44 front axle 1994 to 2002 Dodge Ram 1500, 2500LD CLICK HERE for More Details Part Number: 34279 Diagram Number: 15	$2.25	IN STOCK

	Dana Spicer 38615 Loctite SI 5699 High Performance RTV Silicone Gasket Maker Sealer CLICK HERE for More Details Part Number: 38615 Diagram Number: 16	$7.65

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10 Diagram Number: 16	$4.94	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40 Diagram Number: 16	$23.64	IN STOCK

	Dana Spicer 707014X Steel Differential COVER and GASKET 1994 to 2001 DODGE Ram 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 707014X Diagram Number: 13	~~$55.12~~ $49.56

	Dana Spicer 36472 Plug for Differential Cover CLICK HERE for More Details Part Number: 36472 Diagram Number: 14	$8.83	IN STOCK

DIFF CROSS PIN

	Dana Spicer 13449 ROLL PIN for Diff Spider Cross shaft fits both OPEN DIFF and TRACK LOK Dana 44 FRONT 1994 to 2001 Dodge Ram 1500, 2500LD CLICK HERE for More Details Part Number: 13449 Diagram Number: 28	$0.45	IN STOCK

	Dana Spicer 39194 Cross Shaft fits Dana 44 Open diff and Track Lok diff case 1994 to 2001 Dodge Ram 1500, 2500LD CLICK HERE for More Details Part Number: 39194 Diagram Number: 27	$12.38	IN STOCK

DIFF SETUP SHIMS

	Dana Spicer 701005X SHIM Kit for DANA 44 differential side bearings package of 16 shims CLICK HERE for More Details Part Number: 701005X Diagram Number: 20	$6.85	IN STOCK

	Dana Spicer 706086X DIFFERENTIAL BEARING SHIMS for 1994 to 2001 DODGE Ram 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 706086X Diagram Number: 20	$18.09

DIFFERENTIAL BEARINGS

	Dana Spicer 706032X DIFFERENTIAL CARRIER BEARING KIT for 1994 to 2001 DODGE Ram 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 706032X Diagram Number: 19	~~$52.35~~ $45.95	IN STOCK

PINION BEARINGS

	Dana Spicer 13575 SLINGER for Outer Pinion Bearing fits Dana 25, 27, 30, 44, 50 front and rear ends 1953 to 2013 CLICK HERE for More Details Part Number: 13575 Diagram Number: 7	$0.74	IN STOCK

	Dana Spicer 706015X INNER PINION BEARING KIT for 1994 to 2001 DODGE Ram 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 706015X Diagram Number: 4	~~$34.18~~ $29.55	IN STOCK

	Dana Spicer 706030X OUTER PINION BEARING KIT for 1994 to 2001 DODGE Ram 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 706030X Diagram Number: 6	~~$41.52~~ $36.25	IN STOCK

PINION NUT and WASHER

	Dana Spicer 30185 Pinion NUT fits 1994 to 2001 DODGE RAM 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 30185 Diagram Number: 12	$0.72	IN STOCK

	Dana Spicer 30186 Pinion WASHER fits 1994 to 2001 DODGE RAM 1500, 2500LD with DANA 44 Disconnect front axle CLICK HERE for More Details Part Number: 30186 Diagram Number: 11	$0.35	IN STOCK

PINION SEAL

	Dana Spicer 44895 PINION SEAL fits 1985 to 1999 DODGE Ram 1500, 2500LD with Dana 44 Disconnect Front Axle CLICK HERE for More Details Part Number: 44895 Diagram Number: 8	$7.10	IN STOCK

	Dana Spicer 50092 PINION SEAL fits 2000, 2001 DODGE RAM 1500, 2500LD with DANA 44 Disconnect Front axle CLICK HERE for More Details Part Number: 50092 Diagram Number: 8	$10.63	IN STOCK

	Dana Spicer 47762 Outer PINION OIL SEAL optional fits Dana 44 keeps dirt away from pinion seal CLICK HERE for More Details Part Number: 47762 Diagram Number: 9	$8.82	IN STOCK

RING GEAR BOLT

	Dana Spicer 41221 RING GEAR BOLT .375-24 thread fits Dana 28, Dana 30, Dana 35, Dana 44 Front and Rear diff CLICK HERE for More Details Part Number: 41221 Diagram Number: 22	$0.42	IN STOCK
