DANA 44 DISCONNECT Front Axle

DODGE RAM 1500 and RAM 2500LD with DISCONNECT on PASSENGER SIDE (Right Side)

1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001

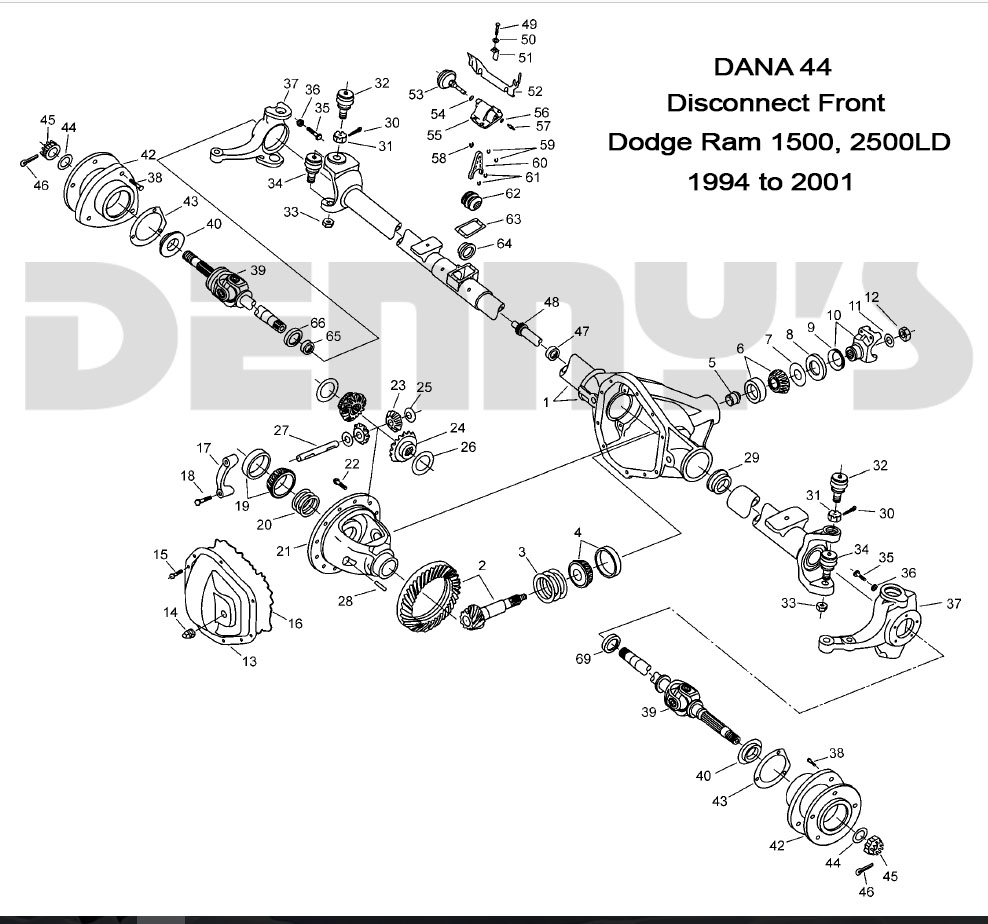

Denny's Driveshafts exploded view 1999 to 2001 Dodge Ram 1500, 2500LD with Dana 44 disconnect front axle

 Diagram # Part #
Description Diagram # Part # Description
 1  ****  Housing - For reference only  35  *****  Bolt
 2  Multiple  Ring and Pinion Gear Set  36  *****  Nut
 3  701112X  SHIMS Kit - Inner Pinion Bearing  37  Dealer  Knuckle RH
 4  706015X  INNER Pinion Bearing Kit  37  Dealer  Knuckle LH
 5  44896  Collapsible Spacer/Crush Collar  38    Bolt
 6  706030X  OUTER Pinion Bearing Kit  39  Multiple  Axle Shaft
 7  13575  Slinger for outer pinion brg  40  45942  Slinger - Outer Stub Axle
 8  Multiple  Pinion Seal  41  45918  Tone Ring
 9  47762  Seal for end yoke  42  *****  Hub Assy
 10  Multiple  Pinion Yoke  43  *****  Spacer
 11  30186  Washer for Pinion nut  44  45523  Washer
 12  30185  Pinion Nut  45  46085  Nut
 13  707014X  Diff Cover  46  In Kit  Cotter Pin
 14  36472  Plug  47  50429  Bushing
 15  34279  Cover Bolt  48 and 65  75265X  Intermediate Shaft
 16  Multiple  Cover Gasket / RTV Sealant  49 - 57  *****
 17  ****  Diff Bearing Cap  58  621097  Snap Ring
 18  ****  Bolt - Diff Brg Cap  59  620979  Snap Ring 2 required
 19  706032X  Diff Side Bearings  60  42585  Shift FORK
 20  706086X  SHIM Kit - Diff Brg  61  621059  Clip
 21  Multiple  Diff Case  62  46401  Clutch Collar - Disconnect
 22  41221  Ring Gear Bolt  63  41494  Gasket
 23  45872  Small Spider Gear  64  Multiple  TUBE SEAL - RIGHT
 24  45870  Large Spider Gear  65  43337  Bushing
 25  13338-3  Thrustwasher for Sm Spider  66  50382  Seal - OBSOLETE
 26  32121  Thrustwasher for Lg Spider  66  49254  Seal - OBSOLETE
 27  39194  Diff Cross PIN
 28  13449  Lock pin
 29  620216  TUBE SEAL - LEFT
 30 - 34  Multiple  Ball Joint Set
