Dodge 3R Series Double Cardan CV Flange Yoke

Part Number:
N3R-83-482

UPC:

083869000039

Your Cost $95.94

STATUS: IN STOCK

Double Cardan 3R Series CV Flange Yoke to replace original equipment Dodge 4x4 CV Flange Yoke. Use this to replace your worn out CV flange yoke.

Comes with ball socket centering parts already installed for easy installation.

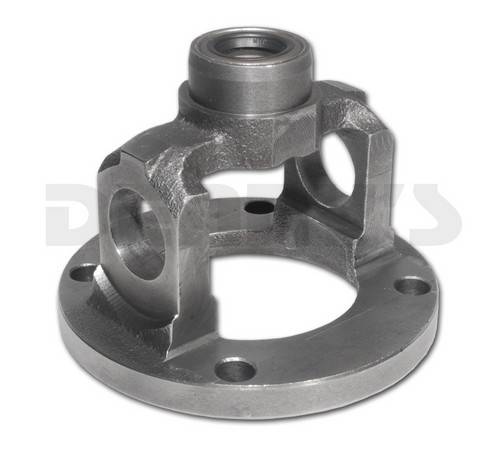

Dodge 3R Series Double Cardan CV Flange Yoke

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $95.94

Double Cardan 3R Series CV Flange Yoke to replace original equipment Dodge 4x4 CV Flange yoke. This yoke is used to replace the 4x4 double cardan CV Flange yoke located on the Front Driveshaft of a 4x4 Dodge original equiment driveshaft. CV Flange yoke comes complete with ball socket centering parts already loaded. Bolt pattern for mounting to rear differential flange is 4 1/4 inches (4.250 inches) measured diagonally and the pilot hole in the center of the flat flange is 3 1/8 inches (3.125 inches). It has 4 equally spaced holes that measure 3 inches from center of hole to center of hole.

Dodge 3R Series Double Cardan CV Flange Yoke
Bolt Pattern.... 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter... 3.125 inches (3 1/8 inches)
Typically found on Dodge 4x4 Front Driveshafts 1973 and newer with inside "C" Clip style u-joints.
Requires Inside "C" Clip style 3R Series u-joints listed below
Centering ball socket comes fully assembled and ready to install

Dodge 3R Series Double Cardan CV Flange Yoke

You May Also Need These Parts to Complete the Job

SPICER 5-3147X Universal Joint fits 1974 to 1993 RAMCHARGER, 1/2, 3/4 and 1 ton Front CV Driveshaft with inside clips Part#: 5-3147X $19.25	Dana Spicer 5-795X Universal Joint 3R Series Non greaseable Part#: 5-795X $27.27

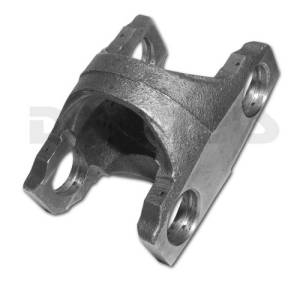

Dodge 3R Series Replacement Double Cardan CV center "H" Yoke for inside "C" clip u-joints Part#: N3R-26-057 ~~$68.32~~ $62.35
