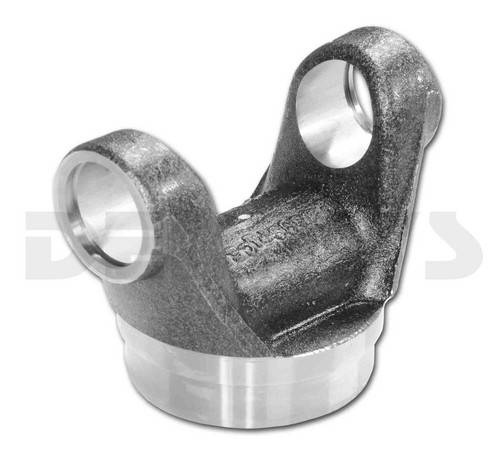

DANA SPICER 3-28-97 Weld Yoke 1410 Series to fit 3 inch .083 wall tubing
Part #:
3-28-97
Your Cost $24.95

DANA SPICER 3-28-97

1410 Series Weld Yoke



Spicer
DANA SPICER 3-28-97 Weld Yoke 1410 Series to fit 3 inch .083 wall tubing
DANA SPICER 3-28-97 1410 series Weld Yoke
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $24.95



DANA SPICER 3-28-97

1410 Series Weld Yoke

  • Fits 3.0 inch OD X .083 wall tubing
    • F - Butt Diameter = 2.845
  • Series = 1410
  • Lock up style = OUTSIDE SNAP RING
  • E - Universal Joint Width = 4.187
  • D - Universal Joint Bore = 1.187
  • H - Center of u-joint bore to point of weld = 2.125
  • Special Notes: USE KIT 5-160X, 5-1410X



CLICK HERE : For ALL DANA SPICER Weld Yoke Part Numbers, Specifications and Dimensions
