200120-51 Spline and Slip yoke set 1310 series fits 2 inch 0.120 wall steel tube allows maximum 3 inches of slip travel

Part Number:
200120-51

UPC:

Your Cost $118.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

200120-51

Spicer Spline and Slip yoke set

Fits 2.0 inch steel tube OD with 0.120 wall thickness
Fits 1310 series universal joint (see choices at bottom of page)
- 3.219 wide cap to cap
- 1.062 cap diameter
- outside snap rings
Maximum of 3 inches slip travel
Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
- Spline butt diameter to press fit into tube - 1.770 inches

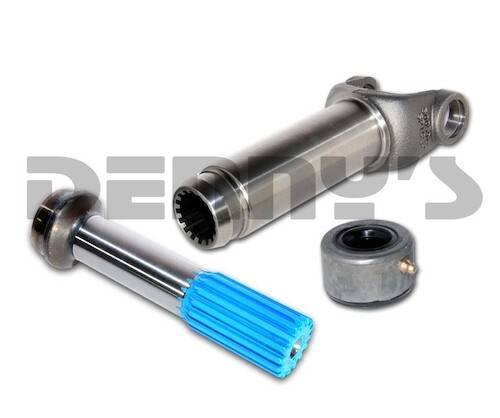

200120-51 Spline and Slip yoke set 1310 series fits 2 inch 0.120 wall steel tube allows maximum 3 inches of slip travel

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $118.95

200120-51

Spicer Spline and Slip yoke set

Fits 2.0 inch steel tube OD with 0.120 wall thickness
Fits 1310 series universal joint (see choices at bottom of page)
- 3.219 wide cap to cap
- 1.062 cap diameter
- outside snap rings
Maximum of 3 inches slip travel
Spicer Slip yoke 1.375 x 16 splines has press on seal with grease fitting
Spicer Spline is glidecoated (blue coating) 2.25 inches for wear resistance if properly lubricated
- Spline butt diameter to press fit into tube - 1.770 inches

The following dimensions are taken with the supplied seal installed.

**CL to weld Collapsed Dimension - 7.750 inches
**CL to weld Dimension at MID travel - 9.250 inches
CL to weld Fully Extended Dimension - 10.750 inches

**Caution --- Using a rubber boot in place of the seal will lengthen the collapsed and mid point dimensions. You must factor this into your build dimensions before cutting, welding and building the driveshaft

Copywrite Denny's Driveshafts

200120-51 Spline and Slip yoke set 1310 series fits 2 inch 0.120 wall steel tube allows maximum 3 inches of slip travel

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.09	Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
