Driveshaft and Driveline Parts > Universal Joints > COMBINATION-CONVERSION U-Joints > Combo U-Joint 1330 to 1350 series 3.625 X 3.625 > 1.125 X 1.188 Bearing Cap Diameter

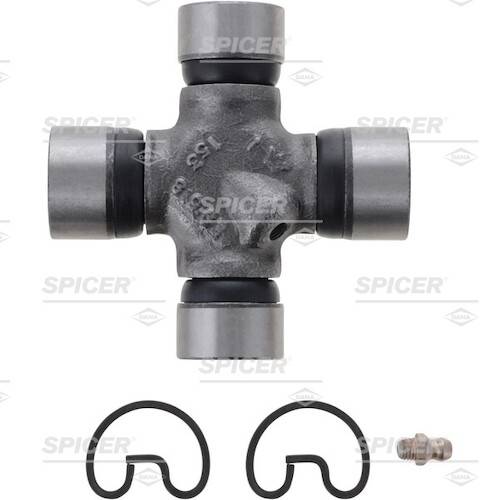

Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style

Part Number:
5-3248X

UPC:

Your Cost $41.95

STATUS: IN STOCK

Dana Spicer 5-3248X

1330 to 1350 Series Spicer Combination Universal Joint.

Use this to connect 1330 series Big Cap FORD end yokes to 1350 series driveshafts.

GREASEABLE U-Joint

Grease Fitting in body of u-joint

DIMENSIONS

1330 series Ford BIG CAP dimensions
- Dimension A = 3.625 inches wide
- Dimension C = 2 bearing caps are 1.125 inch diameter
- Fits 1330 Big Cap FORD u-bolt style end yokes, pinion yokes, transfer case yokes, transmission yokes
1350 series dimensions
- Dimension B = 3.625 inches wide
- Dimension D = 2 bearing caps are 1.188 inch diameter
- Outside snap rings

Spicer

Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style

Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $41.95

Dana Spicer 5-3248X

1330 to 1350 Series Spicer Combination Universal Joint.

Use this to connect 1330 series Big Cap FORD end yokes to 1350 series driveshafts.

GREASEABLE U-Joint

Grease Fitting in body of u-joint

DIMENSIONS

1330 series Ford BIG CAP dimensions
- Dimension A = 3.625 inches wide
- Dimension C = 2 bearing caps are 1.125 inch diameter
- Fits 1330 Big Cap FORD u-bolt style end yokes, pinion yokes, transfer case yokes, transmission yokes
1350 series dimensions
- Dimension B = 3.625 inches wide
- Dimension D = 2 bearing caps are 1.188 inch diameter
- Outside snap rings

image/jpeg

Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style

Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style
