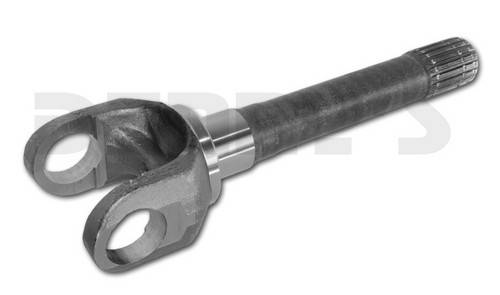

Dana Spicer 41677 OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle
|
|
Your Cost
$59.95
STATUS:
IN STOCK
|
|
Dana Spicer 41677
- OUTER AXLE SHAFT
- Fits DANA 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
- 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
- Genuine DANA SPICER Replacement Front Axle Shaft
UPC: 023913140823
Part Number: 41677
|
Dana Spicer 41677 OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$59.95
|
Dana Spicer 41677
- OUTER AXLE SHAFT
- Fits DANA 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
- 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
- Genuine DANA SPICER Replacement Front Axle Shaft
DIMENSIONS
- 19 SPLINES
- Dimension "B1" = 1.250 inch diameter
- Dimension "B" = 9.94 inches
- Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
UPGRADE AVAILABLE:
- See Dana Spicer 10007802 CHROMOLY outer axle shaft upgrade. Replaces Dana Spicer 41677 and 41677-1541
- See bottom of this page
|
|
Dana Spicer 41677 OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle
|
|
