Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series with NON GREASEABLE U-Joints
Part #:
6653305CV
Your Cost $148.95

Part Number 6653305CV

3R Series Double Cardan CV Head - with NON Greaseable u-joints

  • Fits Chevy GMC K5, K10, K15, K20, K25, K30 K35 with 3R series double cardan CV FRONT DRIVESHAFT
    • 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
  • Fits S10 and Sonoma with 5 u-joint driveshaft
    • 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
  • Fits Chevy Full Size Impala, Biscayne, Caprice with 3 u-joint driveshaft
    • 1973, 1974, 1975, 1976, 1977, 1978, 1979
    • will also fit 1971, 1972 if driveshaft is rebuildable.  Most 1971 and 1972 were not serviceable because the stud yoke was not machined for "C" clips.  This will not allow for the u-joint to be installed correctly so you cannot install this unit onto the driveshaft.

This unit is fully assembled and ready to install onto your existing driveshaft. ....all you need to do is install one u-joint into your CV Ball Stud yoke to install this assembly

  • It's as easy as changing one u-joint. Please be sure to measure the bolt pattern and pilot hole diameter prior to ordering.
  • Use this to replace the GM 3R series double cardan CV on your Driveshaft

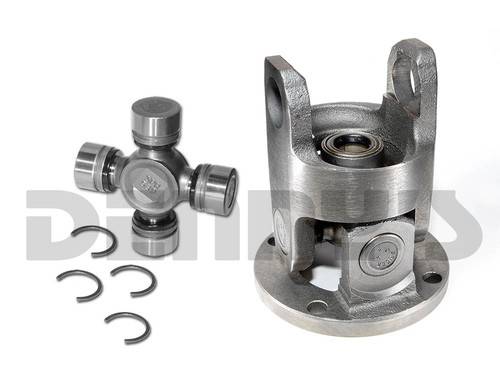

KIT INCLUDES

  • (2) Spicer 5-795X NON Greaseable 3R Series Universal Joints
  • (1) NEAPCO N3R-26-057 "H" Yoke
  • (1) NEAPCO N3R-83-482 CV Flange yoke with ball socket parts installed

DIMENSIONS

  • Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
  • Pilot Diameter = 3.125 inches (3 1/8 inches)
  • 4 bolt holes equally spaced 3 inches center to center
  • INSIDE "C" Clip style

Spicer/Neapco
