AAM 517900 Washer for pinion nut GM 9.5 inch 14 bolt REAR fits up to 2013
$1.70 each
Part Number:
517900
$1.70 each
AAM 517900
Description Fits Axle Model
1981 to 2013 GM 9.5 inch 14 bolt REAR
OEM Numbers and Replacement Numbers
Catalog Number
Status: IN STOCK
AAM 9783762 Pinion nut for 9.5 inch 14 bolt Rear fits up to 2013
$1.95 each
Part Number:
9783762
$1.95 each
AAM 9783762
Description Application
1981 to 2013 GM 9.5 inch 14 bolt rear
OEM Numbers and Replacement Numbers
Catalog Number
Status: SOLD OUT...More Coming Soon

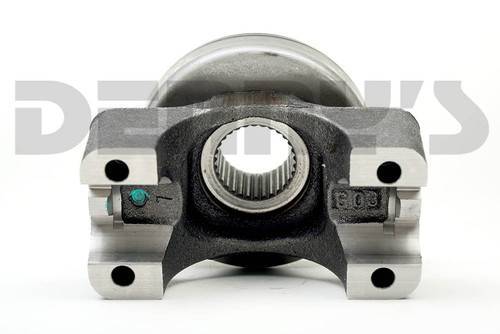

9984216 Pinion Yoke 30 spline 3R series for inside c-clip u-joint fits 1981 to 1997 Chevy and GM light truck 9.5 inch 14 bolt rear end
$59.95 each
Part Number:
9984216
$59.95 each
Part Number 9984216
3R Series Pinion Yoke to replace original equipment
Fits 1981 to 1997 Chevy and GMC light truck 9.5 inch 14 Bolt Rear Ends
30 splines
Fits INSIDE "C" Clip style universal joints listed below
Strap and Bolt Style
DIMENSIONS
21A - Height = 3.375 inches
24 - U-Joint lockup Inside dimension = 2.556 inches
22 - U-Joint saddle diameter = 1.125 inches
25 - Seal surface diameter = 1.938
23 - Spline Diameter = 1.312
Status: IN STOCK
Dana Spicer 3-4-8691-1X Pinion Yoke 1350 Series 1981 to 1997 Chevy and GM fits 9.5 inch 14 Bolt 30 spline Strap and Bolt style
$91.95 each
Part Number:
3-4-8691-1X
$91.95 each
Dana Spicer 3-4-8691-1X
1350 series cast pinion yoke
Strap and Bolt style
Fits 1981 to 1997 Chevy and GM 9.5 inch 14 bolt REAR 30 splines
D = 1.188
E = 3.625
Q = 1.156
R = 1.938
S = 3.125
Status: IN STOCK
AAM 26060881 Pinion Yoke 1350 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end
$53.22 each
Part Number:
26060881
$53.22 each
AAM 26060881
Pinion yoke - OEM Replacement
Fits Chevrolet and GMC light truck 9.5 inch GM 14 bolt
1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
1350/1355 series
30 spline
Fits OUTSIDE Snap Ring style universal joints listed below
Triple lip design
Requires 26064029 pinion seal listed below
DIMENSIONS
Height = 3.375 inches
Tab to Tab inside dimension = 3.625 inches
U-Joint saddle diameter = 1.188 inches
Seal surface diameter = 2.110
Status: SOLD OUT...More Coming Soon
AAM 40055350 Pinion Yoke 1410/1415 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end
$58.93 each
Part Number:
40055350
$58.93 each
AAM 40055350
Pinion yoke - OEM Replacement
Fits Chevrolet and GMC light truck 9.5 inch GM 14 bolt
1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
1410/1415 series
30 spline
Fits OUTSIDE Snap Ring style universal joints listed below
Requires 26064029 pinion seal listed below
DIMENSIONS
Height = 3.375 inches
Tab to Tab inside dimension = 4.188 inches
U-Joint saddle diameter = 1.188 inches
Status: IN STOCK
Neapco 1-0020 strap and bolt set designed for 1.188 bearing cap for 1355 and 1415 series Tab Style pinion yoke GM 9.5 inch rear
$9.19 $8.13 each
Part Number:
1-0020
$9.19 $8.13 each
NEAPCO 1-0020
1355/1415 Series Strap & Bolt Set
Fits GM 9.5 inch rear with 1355/1415 series Tab Style Pinion Yoke
Strap and bolt set comes with (2) Straps (4) 5/16 fine thread Bolts.
Replace that old stretched out original set with a new one.
Same as Spicer 3-70-58X
DIMENSIONS
BEARING SIZE: 1.188
BOLT HOLE DIAMETER: 0.340
CL TO CL: 1.660
Fits SERIES: 1350
BOLT LENGTH UNDER HEAD: 1.500
STRAP WIDTH: 0.750
THREAD SIZE: 0.312 - 24 (5/16 diameter)
Status: IN STOCK
