Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

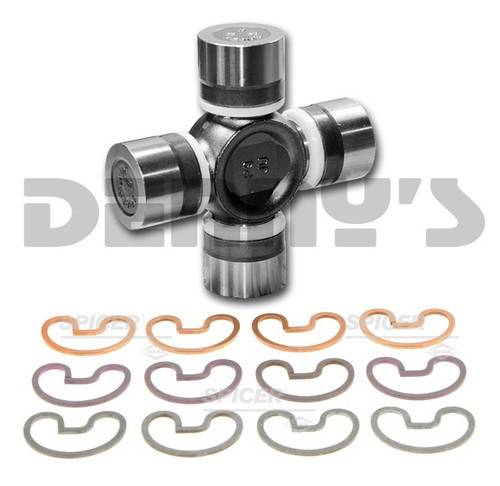

Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series fits Cobra Kit Car driveshafts with outside snap rings 3.625 wide with 1.188 bearing caps
Part Number:
5-1350X


UPC:
023913121150
Your Cost $23.54
STATUS:  IN STOCK

DANA SPICER 5-1350X

1350 SERIES UNIVERSAL JOINT

  • Fits Cobra Kit Cars with 1350 series driveshafts
  • NON GREASEABLE for superior strength
    • Super strong , high mileage with no greasy mess splattered all over your chassis
    • Factory lubed with the correct amount of Dana Spicer synthetic grease for excellent friction reduction
    • Multi lip seals keep the grease in ... water and contaminants out!
  • Cold-forged solid body to ensure better wear and overall strength
  • Heat treated, Case hardened and precision ground bearing caps for durability and the best press fit
  • Thrust washers in the bottom of each bearing cap to eliminate metal on metal contact at the end of the journal to prevent wear and will lower overall operating temperature.
  • Comes with standard thickness copper colored outside style snap rings and also two thicker snap ring versions to allow the experienced installer to control the end play when necessary.

DIMENSIONS

  • Outside Snap Ring Style
  • (A) Cap to Cap installed dimension = 3.625 inches
  • (B) Cap to Cap installed dimension = 3.625 inches
  • (C) Bearing cap diameter = 1.188 inches
  • (D) Bearing cap diameter = 1.188 inches

RECOMMENDATION

It is our opinion here at Denny's Driveshafts that the Dana Spicer 5-1350X universal joint is the absolute best choice when purchasing a 1350 series u-joint.   This is the one to use when building or repairing a high performance street car, 4x4 truck for on or off road use and for all high powered - high rpm drag race, road race and circle track racing applications.

 OPTIONS - see bottom of your screen

  • Greaseable version ...
    • Dana Spicer 5-1350-1X cross drilled body with lube fitting in end of one bearing cap
    • Dana Spicer 5-178X cross drilled body with lube fitting in body
  • Non Greaseable Coated version ....
    • Dana Spicer 5-3615X with coated bearing caps for aluminum drivelines



Spicer
Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series fits Cobra Kit Car driveshafts with outside snap rings 3.625 wide with 1.188 bearing caps
Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series fits Cobra Kit Car driveshafts with outside snap rings 3.625 wide with 1.188 bearing caps
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $23.54

DANA SPICER 5-1350X

1350 SERIES UNIVERSAL JOINT

  • Fits Cobra Kit Cars with 1350 series driveshafts
  • NON GREASEABLE for superior strength
    • Super strong , high mileage with no greasy mess splattered all over your chassis
    • Factory lubed with the correct amount of Dana Spicer synthetic grease for excellent friction reduction
    • Multi lip seals keep the grease in ... water and contaminants out!
  • Cold-forged solid body to ensure better wear and overall strength
  • Heat treated, Case hardened and precision ground bearing caps for durability and the best press fit
  • Thrust washers in the bottom of each bearing cap to eliminate metal on metal contact at the end of the journal to prevent wear and will lower overall operating temperature.
  • Comes with standard thickness copper colored outside style snap rings and also two thicker snap ring versions to allow the experienced installer to control the end play when necessary.

DIMENSIONS

  • Outside Snap Ring Style
  • (A) Cap to Cap installed dimension = 3.625 inches
  • (B) Cap to Cap installed dimension = 3.625 inches
  • (C) Bearing cap diameter = 1.188 inches
  • (D) Bearing cap diameter = 1.188 inches

RECOMMENDATION

It is our opinion here at Denny's Driveshafts that the Dana Spicer 5-1350X universal joint is the absolute best choice when purchasing a 1350 series u-joint.   This is the one to use when building or repairing a high performance street car, 4x4 truck for on or off road use and for all high powered - high rpm drag race, road race and circle track racing applications.

 OPTIONS - see bottom of your screen

  • Greaseable version ...
    • Dana Spicer 5-1350-1X cross drilled body with lube fitting in end of one bearing cap
    • Dana Spicer 5-178X cross drilled body with lube fitting in body
  • Non Greaseable Coated version ....
    • Dana Spicer 5-3615X with coated bearing caps for aluminum drivelines
