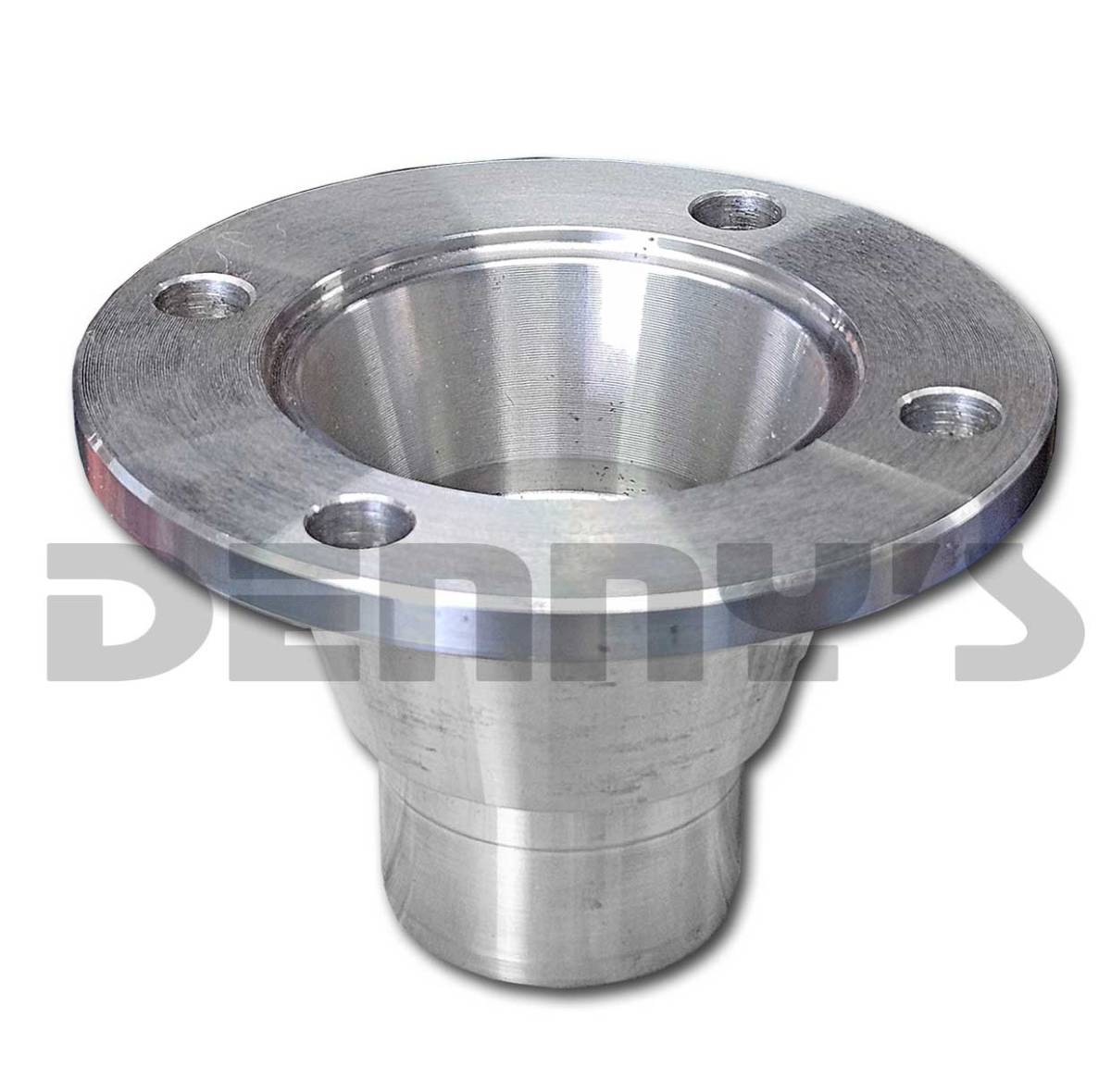

2239501 COMPANION Flange for DANA 30, DANA 44 with 26 spline pinion - replaces Spicer 2-1-1881

2239501 companion flange 26 splines

• Fits 26 spline DANA 30/44 front or rear ends
• For use when a 1310 series flange yoke is required to connect the driveshaft.
• Typically found on Jaguar independent rear ends used in street rods.
• Replaces Spicer 2-1-1881X

Fits 1310 SERIES flange yokes 2-2-329 or 2-2-459

• Spline OD 1.146

• No. of Splines 26

• C) Pilot Dia. female 2.375

• B) Bolt Circle Dia. 3.125

• Bolt Hole Diameter drilled .375

• No. of Holes 4

• E) Hub Dia. 1.552

• F) Length thru Hole 1.500

• G) Flange Face to end of Hub 2.594

• See Figure 1
