Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

DANA SPICER 1-3-18KX Slip Yoke 1100 Series 16 splines Outside snap rings
Part Number:
1-3-18KX


UPC:
023913232597
Your Cost $116.12
Sorry, sold out
STATUS:  SOLD OUT...More Coming Soon

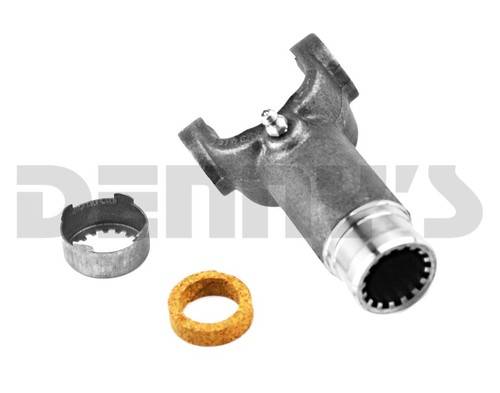

DANA SPICER 1-3-18KX

1100 Series Slip Yoke




Spicer
DANA SPICER 1-3-18KX Slip Yoke 1100 Series 16 splines Outside snap rings
DANA SPICER 1-3-18KX Slip Yoke 1100 Series 16 splines Outside snap rings
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $116.12

DANA SPICER 1-3-18KX

1100 Series Slip Yoke

  • Spline/Hole Outside Diameter = 1.062
  • Number of Splines = 16
  • Series = 1100
  • Lock up style = OUTSIDE
  • Universal Joint Width = 2.411
  • D - Universal Joint Bore = 0.938
  • Dust Cap Part Number = D1A
    • Dust Cap Style = 3 PIECE SCREW ON
  • F - Center of u-joint bore to plug = 0.938
  • J - Center of u-joint bore to End of Slip yoke = 4.312





DANA SPICER 1-3-18KX Slip Yoke 1100 Series 16 splines Outside snap rings

DANA SPICER 1-3-18KX Slip Yoke 1100 Series 16 splines Outside snap rings
