DANA SPICER 1-2-39 Fits 1100/1110 Series flange yoke with 2.250 pilot

14277

DANA SPICER PTO FLANGE YOKE for power take off applications

PART NUMBER: 1-2-39

Not Available
Pricing: $43.95

Description

DANA SPICER FLANGE YOKE for power take off applications

PART NUMBER: 1-2-39

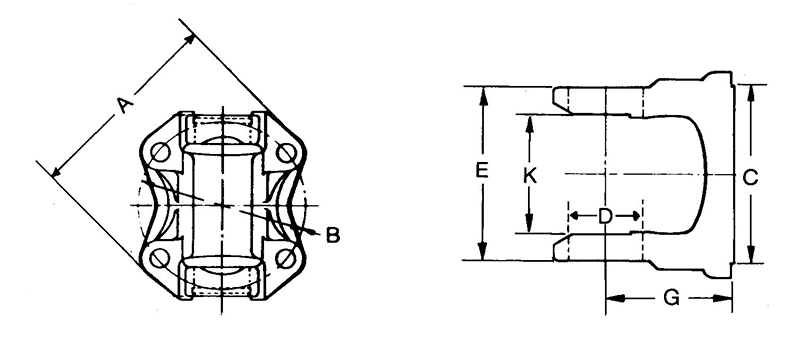

  • SERIES 1100/1110
  • C - MALE PILOT DIAMETER -  2.250 INCHES
  • D - U-JOINT BEARING CAP DIAMETER - .938 INCHES
  • E - WIDTH OF YOKE  -  2.656 INCHES
  • G - FLANGE FACE TO CENTERLINE  - 1.188 INCHES
  • A - FLANGE SWING DIAMETER - 3.5 INCHES
  • B - BOLT CIRCLE DIAMETER - 2.75 INCHES
  • 4 BOLT HOLES .312 DIAMETER
  • JOINT ANGLE   - 18 DEGREES
  • OUTSIDE SNAP RING
"

Details

  • 14277
  • 14277
  • Spicer
  • 0
  • 0
  • Temporarily Not Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W5.0000” x H5.0000” x L2.0000”
