8999544 Forged Pinion Yoke 1410 series U-BOLT Style fits Dana 60, 61, 70 with 29 spline pinion Chevy, GMC, Ford, Dodge, International, Jeep
8999544
8999544

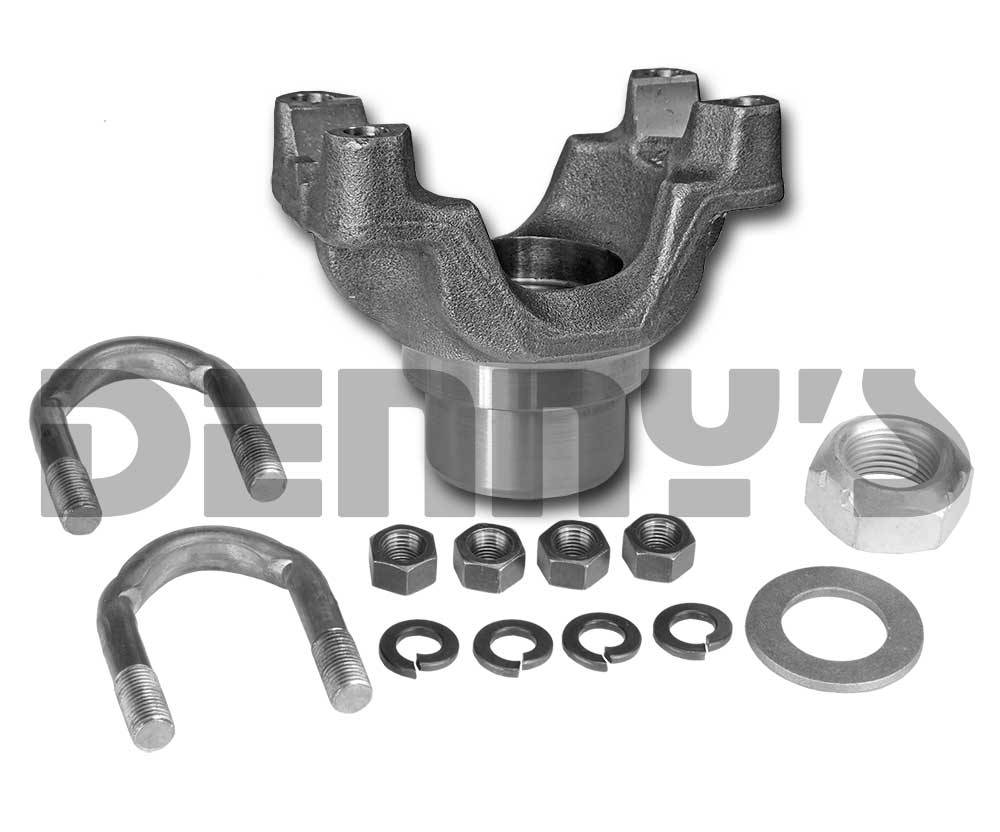

- PINION YOKE - FORGED for additional strength over stock oem cast yokes
- Fits Dana 60, 61, 70 with 29 spline pinion Chevy, GMC, Ford, Dodge, International, Jeep
- DOES NOT FIT 29 spline Dodge 8.75 and 9.25 inch rear ends
- 1410 series
- U-Bolt Style - u-bolt set included
- Pinion nut and washer included
DIMENSIONS
- 29 SPLINE
- SPLINE OD = 1.276
- D = 1.188
- E = 4.188
- Q = 1.500
- R = 1.875
- S = 3.190
Limited Supply: only 1 remaining
Pricing:
$149.95
Description
8999544
- PINION YOKE - FORGED for additional strength over stock oem cast yokes
- Fits Dana 60, 61, 70 with 29 spline pinion Chevy, GMC, Ford, Dodge, International, Jeep
- DOES NOT FIT 29 spline Dodge 8.75 and 9.25 inch rear ends
- 1410 series
- U-Bolt Style - u-bolt set included
- Pinion nut and washer included
DIMENSIONS
- 29 SPLINE
- SPLINE OD = 1.276
- D = 1.188
- E = 4.188
- Q = 1.500
- R = 1.875
- S = 3.190
Fits 1410 series u-joint 4.188 inches (4-3/16) wide with 1.188 inches (1-3/16) bearing cap diameter
Details
- 8999544
- 8999544
- WDDS6A
- Available
- New
Categories
- GENERAL MOTORS REAR ENDS - DANA 60 REAR - CHEVY/GMC C10, C20 - PINION YOKES
- AXLES and FRONT DIFF Parts 4X4 - DODGE 4X4 Front - DANA 70 FRONT 1967-1978 - DODGE W200HD, W300HD, W600HD
- AXLES and FRONT DIFF Parts 4X4 - INTERNATIONAL HARVESTER - DANA 70 FRONT - IHC Model 1300, Model 1600
- AXLES and FRONT DIFF Parts 4X4 - JEEP 4X4 Front and Rear - DANA 60 JK Ultimate Builder Parts
- AXLES and REAR DIFF Parts - JEEP REAR ENDS - DANA 60 JK Ultimate Builder Parts
- DANA 60 FRONT - CHEVY - PINION YOKE - 1410 SERIES
- Dana 60 REAR END - FORD 1978 to 1998 - PINION YOKES - NUTS - WASHER - 1410 series
- Jeep - PINION YOKES and HARDWARE - DANA 60 - with 29 SPLINE PINION
- PINION YOKE/FLANGE - OUTSIDE SNAP RING Style - Fits 4.188 x 1.188 U-Joint - 1410 Series
- DANA 60 FRONT 1975 - 1993 DODGE W200, W250, W300, W350 - PINION FLANGE/YOKE - 1410 SERIES
- DANA 60 FRONT - DODGE 1994 - 2002 - PINION YOKE - 1410 Series
- DANA 60 FRONT - FORD 1975 to 2004 with Front LEAF Springs - PINION YOKE - 1410 SERIES
- Dana 60, 61 and Dana 70 - Yokes - 29 SPLINES - 29 SPLINES - 1410 Series
- DANA SUPER 60 FRONT - FORD 2005 to 2016 with Front COIL Springs - PINION YOKE - 1410 series OPTIONAL
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W6.0000” x H5.0000” x L6.0000”
