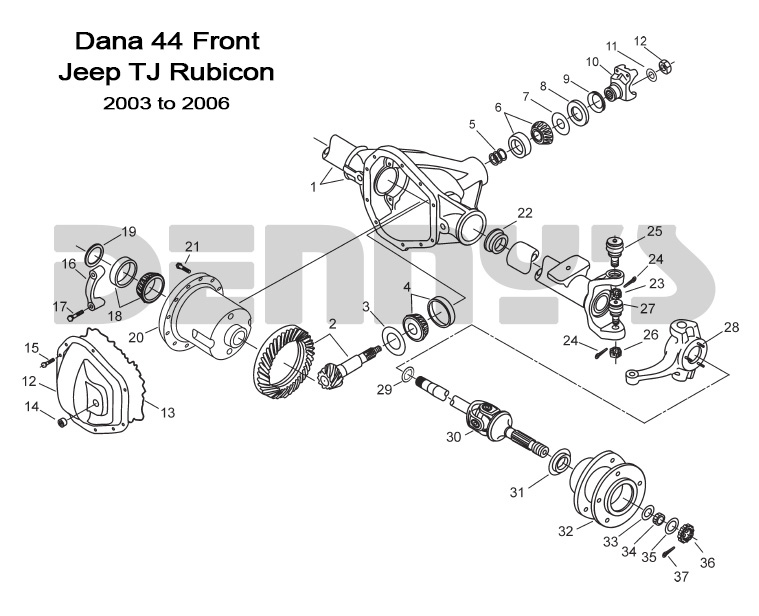

Denny's Driveshafts exploded view of Dana 44 front axle for Jeep TJ Rubicon 2003-2006

Diagram #	Part #	Description	Diagram #	Part #	Description
1	*****	Housing - For reference only	21	45784-2	Ring Gear Bolts (Qty 10)
2	Multiple	Gear Set - See Ring and Pinion Gear	22	54381	Tube Seal
3	44035	Slinger Inner Pinion Brg	23 - 27	706944X	Ball Joint Set
4	706031X	Inner Pinion Bearing Cup and Cone	28	41027	Bolt (Qty 6)
5	Multiple	Pinion Brg Shims - See Shim kits	29	2003627	Axle Shaft Guide
6	706030X	Outer Pinion Bearing	30	Multiple	Axle Shafts and U-Joint
7	13575	Slinger for Outer Pinion Bearing	31	46988	Slinger for outer axle shaft
8	50531	Pinion Seal	32	*****	Hub assembly
9	47762	Dust seal	33	40596	Washer
10	6258114	Pinion Yoke	34	40597	Nut
11	50560	Pinion Nut	35	45749	Washer - Spring Wave
12	707014X	Diff Cover	36	40598	Nut - Retainer
13	34685	Gasket	37	*****	Cotter Pin
13	38615	RTV Sealer
14	43181	Plug for Diff Cover
15	34279	Bolts for Diff Cover Quantity 10
16	*****	Diff Brg Cap - not sold separately
17	48632-1	Bolt for Diff Brg Cap
18	706032X	Diff Bearing Kit Cup and Cone
19	Multiple	Diff Bearing Shim Kit
20	Multiple	Diff Case

DANA 44 FRONT - TJ RUBICON 03-06

AXLE - OUTER

	DANA SPICER 43205 OUTER AXLE fits 2003 to 2006 Jeep WRANGLER TJ and 2004 to 2006 Unlimited Rubicon with DANA 44 Front Axle CLICK HERE for More Details Part Number: 43205	~~$54.99~~ $49.95	IN STOCK

	DANA SPICER 46988 - Outer Axle Dust Shield 2003 TO 2006 Jeep Wrangler TJ and 2004 to 2006 Unlimited Rubicon with Dana 44 CLICK HERE for More Details Part Number: 46988	$3.85	IN STOCK

	Dana Spicer 10007747 CHROMOLY Outer Axle Stub Shaft replaces 43205 CLICK HERE for More Details Part Number: 10007747	~~$167.55~~ $140.32	IN STOCK FREE SHIPPING

AXLE - OUTER NUT and WASHER

	DANA SPICER 40596 JEEP Outer Axle Nut Washer - up to 2006 CLICK HERE for More Details Part Number: 40596	$1.22	IN STOCK

	DANA SPICER 40597 JEEP Outer Axle Nut - up to 2006 CLICK HERE for More Details Part Number: 40597	$18.52	IN STOCK

	DANA SPICER 40598 JEEP Outer Axle Nut Retainer - up to 2006 CLICK HERE for More Details Part Number: 40598	$11.95	IN STOCK

AXLES - INNER

	Dana Spicer 2003627 CLICK HERE for More Details Part Number: 2003627 Diagram Number: 29	$5.95	IN STOCK

	DANA SPICER 84394-1 RIGHT SIDE INNER Axle Shaft fits 2003 to 2006 Jeep WRANGLER TJ and 2004 to 2006 UNLIMITED RUBICON DANA 44 Front CLICK HERE for More Details Part Number: 84394-1	$239.95	IN STOCK FREE SHIPPING

	DANA SPICER 84394-2 LEFT SIDE INNER Axle Shaft fits 2003 to 2006 Jeep WRANGLER TJ and 2004 to 2006 UNLIMITED RUBICON DANA 44 Front CLICK HERE for More Details Part Number: 84394-2	$110.29	IN STOCK

AXLES - COMPLETE

	Dana Spicer 84378-2 LEFT SIDE Axle Assembly fits 2003 to 2006 Jeep WRANGLER TJ and 2004 to 2006 UNLIMITED RUBICON DANA 44 Front CLICK HERE for More Details Part Number: 84378-2	$316.95	SOLD OUT

	Dana Spicer 84378-1 RIGHT SIDE Axle Assembly fits 2003 to 2006 Jeep WRANGLER TJ and 2004 to 2006 UNLIMITED RUBICON DANA 44 Front CLICK HERE for More Details Part Number: 84378-1	$325.95	SOLD OUT

AXLE U-JOINTS

	DANA SPICER 5-760X Front Axle Universal Joint NON Greaseable fits 2003 to 2006 JEEP TJ Rubicon with DANA 44 front CLICK HERE for More Details Part Number: 5-760X	$28.56	IN STOCK

AXLE TUBE SEAL

	Dana Spicer 54381 Tube Seal fits DANA 44 Front 2003 to 2006 Jeep TJ RUBICON - OEM Replacement CLICK HERE for More Details Part Number: 54381	$9.95	IN STOCK

BALL JOINTS

	Dana Spicer 40586 Adjusting sleeve for Jeep upper ball joint CLICK HERE for More Details Part Number: 40586	$10.94	IN STOCK

	Dana Spicer 706944X Ball Joint Set fits 2003 to 2006 Jeep TJ Wrangler, Rubicon and Unlimited with DANA 44 front CLICK HERE for More Details Part Number: 706944X	$78.49	IN STOCK

DIFF PARTS

	Dana Spicer 84650 AIR LOCKER DIFFERENTIAL for Dana 44 FRONT 2003-2006 Jeep TJ Wrangler Rubicon CLICK HERE for More Details Part Number: 84650	$525.00

COVER

	Dana Spicer 38615 Loctite SI 5699 Replaced by 70-31414-10 REINZOSIL RTV Silicone Gasket Maker CLICK HERE for More Details Part Number: 38615	$7.65

	Dana Spicer 707014X Steel Differential COVER and GASKET fits DANA 44 Axle CLICK HERE for More Details Part Number: 707014X	$55.12

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10	$4.94	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40	$23.64

COVER BOLTS

	Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 44 CLICK HERE for More Details Part Number: 34279	$2.25	IN STOCK

	Dana Spicer 43180 Plug for Differential Cover fits Dana 44 Front 2003 to 2006 Jeep TJ Rubicon CLICK HERE for More Details Part Number: 43180	$4.95	IN STOCK

DIFF SIDE BEARINGS

	Dana Spicer 706032X BEARING KIT includes (2) 25590 and (2) 25523 fits Dana 44 FRONT 2003 to 2006 Jeep TJ Rubicon CLICK HERE for More Details Part Number: 706032X	$51.95	IN STOCK

MASTER BEARING KIT

	DT Components DRK-339EMK Master Bearing Kit for Dana 44 Rear Jeep TJ Wrangler 2001-2006 and Dana 44 Front and Rear Jeep TJ Rubicon 2003-2006 CLICK HERE for More Details Part Number: DRK-339EMK	~~$179.95~~ $165.95	IN STOCK FREE SHIPPING

	DANA SPICER 2017101 Differential Bearing Master Kit Fits 2003 to 2006 Jeep Wrangler TJ Rubicon with Dana 44 FRONT with AIR LOCKER CLICK HERE for More Details Part Number: 2017101	~~$440.45~~ $368.88	IN STOCK FREE SHIPPING

PINION BEARINGS

	Dana Spicer 13575 SLINGER for Outer Pinion Bearing fits Dana 44 FRONT 2003 to 2006 Jeep TJ Rubicon CLICK HERE for More Details Part Number: 13575	$0.74	IN STOCK

	Dana Spicer 706030X OUTER Pinion BEARING KIT includes 02820 and 02872 fits Dana 44 FRONT CLICK HERE for More Details Part Number: 706030X	$37.95	IN STOCK

	Dana Spicer 706031X INNER Pinion Bearing KIT includes 31594 and 31520 fits Dana 44 FRONT CLICK HERE for More Details Part Number: 706031X	~~$39.95~~ $36.95	IN STOCK

SHIMS

	Dana Spicer 701005X SHIM Kit for DANA 44 differential side bearings package of 16 shims CLICK HERE for More Details Part Number: 701005X	$6.85	IN STOCK

	Dana Spicer 706086X DIFFERENTIAL BEARING SHIMS for DANA 44 front axle CLICK HERE for More Details Part Number: 706086X	$18.95	SOLD OUT

	Dana Spicer 706358X PINION BEARING SHIMS for DANA 44 front axle CLICK HERE for More Details Part Number: 706358X	$32.95	IN STOCK

	Dana Spicer 706376X PINION and DIFFERENTIAL BEARING SHIM KIT for JEEP DANA 44 front axle CLICK HERE for More Details Part Number: 706376X	~~$41.98~~ $35.16	SOLD OUT

RING GEAR BOLTS

	Dana Spicer 45784 RING GEAR BOLT bolt thread size .437-20 fits Dana 44 Front 2003 to 2006 Jeep TJ Rubicon CLICK HERE for More Details Part Number: 45784	$0.95	SOLD OUT

GEARS

4.10 RATIO

	D44411THK Ring and Pinion gear set THICK 4.11 ratio for Jeep TJ Wrangler Dana 44 front or rear fits 3.73 and down carrier CLICK HERE for More Details Part Number: D44411THK	$262.45	FACTORY DIRECT FREE SHIPPING

	Dana Spicer 85106-6 OEM Ring and Pinion Gear Set Kit 4.10 Ratio fits Dana 44 Front or Rear 2003 to 2006 Jeep TJ Rubicon with .437-20 ring gear bolts CLICK HERE for More Details Part Number: 85106-6	$399.95

4.56 RATIO

	D44456THK Ring and Pinion gear set THICK 4.56 ratio for Jeep TJ Wrangler Dana 44 front or rear fits 3.73 and down carrier CLICK HERE for More Details Part Number: D44456THK	$311.27	FACTORY DIRECT FREE SHIPPING

4.88 RATIO

	D44488THK Ring and Pinion gear set THICK 4.88 ratio for Jeep TJ Wrangler Dana 44 front or rear fits 3.73 and down carrier CLICK HERE for More Details Part Number: D44488THK	$249.32	FACTORY DIRECT FREE SHIPPING

5.13 RATIO

	D44513THK Ring and Pinion gear set THICK 5.13 ratio for Jeep Wrangler Dana 44 front or rear fits 3.73 and down carrier CLICK HERE for More Details Part Number: D44513THK	$286.60	FACTORY DIRECT FREE SHIPPING

PINION YOKE - NUT - SEAL

	Dana Spicer 701035X PINION NUT fits 2003 to 2006 Dana 44 FRONT Jeep TJ Wrangler Rubicon CLICK HERE for More Details Part Number: 701035X	$3.93	IN STOCK

	Dana Spicer 50531 PINION SEAL fits Dana 44 FRONT 2003 to 2006 Jeep TJ Rubicon CLICK HERE for More Details Part Number: 50531	$12.95	IN STOCK

	Dana Spicer 47762 Outer PINION DUST SEAL fits Dana 44 FRONT 2003 to 2006 Jeep TJ Rubicon WITH AIR LOCKER keeps dirt away from pinion seal CLICK HERE for More Details Part Number: 47762	$8.82	IN STOCK

	6258114 Pinion Yoke 1330 series High Angle fits 2003 to 2006 Jeep Rubicon DANA 44 with 26 spline pinion 3.732 tall yoke CLICK HERE for More Details Part Number: 6258114	$72.95	IN STOCK
