Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

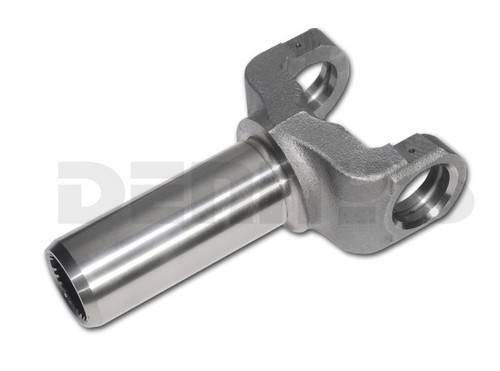

GM 3R Series 27 spline for Muncie M20 M21 & M22 Transmission
Part Number:
N3R-3-6081X


UPC:
083869016061
Your Cost $84.70 Sale Price $82.39
You Save $2.31
STATUS:  IN STOCK

GM 3R Series transmission slip yoke to fit Muncie M20 & M21 and M22 with 27 spline output shaft.   Inside snap ring General Motors 3R series

  • INSIDE "C" Clip Style
  • 1 1/8 Bearing Cap Diameter

Neapco
GM 3R Series 27 spline for Muncie M20 M21 & M22 Transmission
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $84.70 Sale Price $82.39
You Save $2.31

GM 3R Series transmission slip yoke to fit Muncie M20 & M21 and M22 with 27 spline output shaft.   Inside snap ring General Motors 3R series

  • Length to center of u-joint... Dimension #1 = 5 1/2 inches
  • Barrel Diameter... Dimension #2 = 1 1/2 inches
  • Barrel Length... Dimension #3 = 3 5/8 inches
  • U-joint cap diameter... Dimension #4 = 1 1/8 inches
  • U-joint width... Dimension #5A = 2 9/16 inches
  • Series... 3R
  • Spline count... 27

image/jpeg

GM 3R Series 27 spline for Muncie M20 M21 & M22 Transmission
