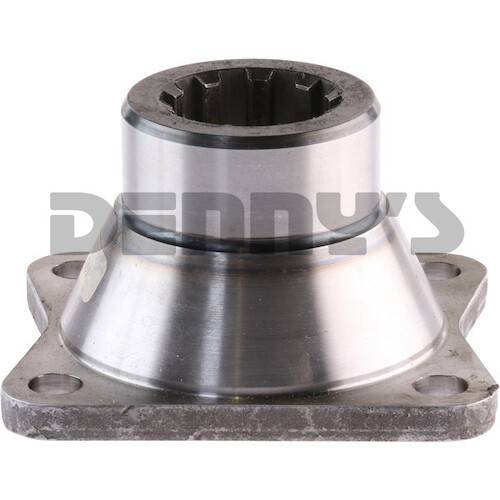

DANA SPICER 4-1-5131 Companion Flange 1410/1480/1550 Series 1.750 x 10 spline with 2.500 Hub

1180103

DANA SPICER 4-1-5131

  • COMPANION FLANGE
  • 1410/1480/1550 Series
  • 1.750 - 10 SPLINE
Not Available
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing: $295.95

Description

DANA SPICER 4-1-5131

  • COMPANION FLANGE
  • 1410/1480/1550 Series
  • 1.750 - 10 SPLINE
Companion Flanges - Splined Hole Model/Part #:  4-1-5131
D.) Spline OD 1.750
No. of Splines 10
C) Pilot Dia. M=male F=female 3.750F
B) Bolt Circle Dia. 4.750
Bolt Hole Dia. (D-drilled T=tapped) .500-D
No. of Holes 4
Drum Pilot Dia. .000
E) Hub Dia. 2.500
F) Len thru Hole 1.938
G) Flg. Face to Hub End 2.734
Figure 1
Slinger Part No.
Series 1410/1480/1550







Details

  • 1180103
  • 1180103
  • Spicer
  • Temporarily Not Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W5.0000” x H5.0000” x L5.0000”
