DANA SPICER 5-1-6471X Companion Flange 1610 series 38 Splines 8 holes
5-1-6471X
DANA SPICER 5-1-6471X
- COMPANION FLANGE
- 1610 SERIES
- 38 SPLINES
- Includes (8) 6-73-725 bolts
Not Available
Pricing:
$329.23
Description
DANA SPICER 5-1-6471X
- COMPANION FLANGE
- 1610 SERIES
- 38 SPLINES
- Includes (8) 6-73-725 bolts

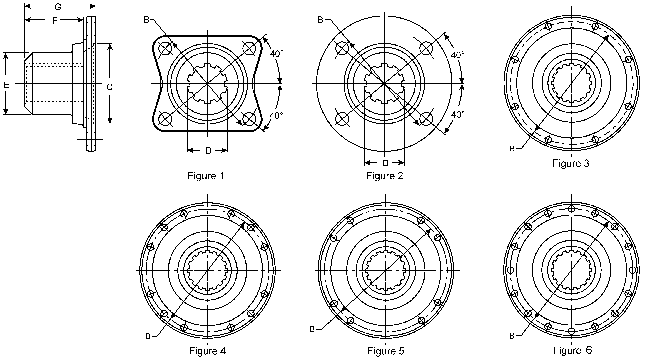

| Companion Flanges - Splined Hole | Model/Part #: 5-1-6471X |
| D.) Spline OD | 1.998 |
| No. of Splines | 38 I |
| C) Pilot Dia. M=male F=female | 5.312-M |
| B) Bolt Circle Dia. | 6.125 |
| Bolt Hole Dia. (D-drilled T=tapped) | .375-D |
| No. of Holes | 8 |
| Drum Pilot Dia. | .000 |
| E) Hub Dia. | 2.750 |
| F) Len thru Hole | 2.125 |
| G) Flg. Face to Hub End | 4.688 |
| Figure | 3 |
| Slinger Part No. | |
| Series | 1610 |
| Assy includes eight 6-73-725 bolts | |
Details
- 5-1-6471X
- 5-1-6471X
- Spicer
- Temporarily Not Available
- New
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W10.0000” x H6.0000” x L10.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
