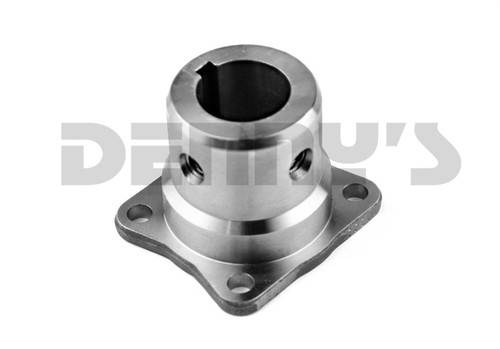

DANA SPICER 1-1-153 Companion Flange 1000/1110 series Fits 1.125 inch Round Shaft with .250 KEY
Part #:
1-1-153
Your Cost $69.40

DANA SPICER 1-1-153

PTO COMPANION FLANGE for power take off applications

1000/1110 series

Spicer
DANA SPICER 1-1-153 Companion Flange 1000/1110 series Fits 1.125 inch Round Shaft with .250 KEY
DANA SPICER 1-1-153 Companion Flange 1000/1110 series Fits 1.125 inch Round Shaft with .250 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $69.40

DANA SPICER 1-1-153

COMPANION FLANGE for power take off applications

  • SERIES 1000, 1110
  • P - FITS 1.125 INCH DIAMETER SHAFT
  • C - FEMALE PILOT DIAMETER -  2.250 INCHES
  • X - KEYWAY WIDTH - .250 INCHES
  • W - KEYWAY LOCATION - 12
  • W - SET SCREW THREAD DIAMETER  - .375 INCHES
  • W - SET SCREW LOCATION - 6 and 9
  • R - HUB DIAMETER - 1.875 INCHES
  • F - LENGTH THROUGH HOLE -  1.5 INCHES
  • G - FLANGE FACE TO END OF HUB  - 2.125 INCHES
  • A - TOTAL SWING DIAMETER - 3.50 INCHES
  • B - BOLT CIRCLE DIAMETER - 2.75 INCHES
  • 4 BOLT HOLES .313 DIAMETER
image/jpeg
DANA SPICER 1-1-153 Companion Flange 1000/1110 series Fits 1.125 inch Round Shaft with .250 KEY

DANA SPICER 1-1-153 Companion Flange 1000/1110 series Fits 1.125 inch Round Shaft with .250 KEY
