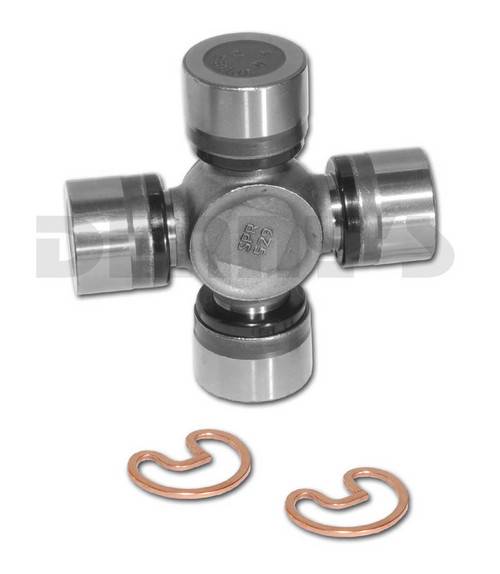

Dana Spicer 5-7439X Non Greaseable Universal Joint fits FORD 8 inch or 9 inch rear has (2) 1.125 inch caps to fit pinion yoke saddle also called Ford Big Cap u-joint
5-7439X
Dana Spicer 5-7439X
1310 Series NON Greaseable Universal Joint...FORD Rear Universal Joint.
- For use at rear of 1310 series Driveshaft where 1.125 cap diameter is required to fit Ford 8 inch or 9 inch Rear end pinion yoke.
- Also called Ford Big Cap u-joint
- Same as obsolete Dana Spicer 5-1201X
Limited Supply: only 9 remaining
Pricing:
$27.95
Description
Dana Spicer 5-7439X
1310 Series NON Greaseable Universal Joint...FORD Rear Universal Joint.
- For use at rear of 1310 series Driveshaft where 1.125 cap diameter is required to fit Ford Rear end pinion yoke.
Dimensions:
- A = 3.219 inches
- B = 3.219 inches
- C = 2 bearing caps are 1.0625 inch diameter to press into driveshaft
- D = 2 bearing caps are 1.125 inch diameter to fit rear end pinion yoke
- Outside snap rings to lock into driveshaft yoke
- Fits 1310 series Ford tab style pinion yokes typically found on Ford 8 inch and Ford 9 inch rear ends.
Notes:
- Same as obsolete Dana Spicer 5-1201X
- Requires u-bolt set part number 2-94-58X ... see bottom of this page
Details
- 5-7439X
- 5-7439X
- Spicer
- Available
- New
Categories
- Driveline Parts - Universal Joints - U-Joints BY SIZE
- U-Joints BY SIZE - 1310 Series U-Joint 3.219 X 3.219 - 1.062 - 1.125 outside snap ring - 1.062 X 1.125 Bearing Cap Diameter
- Universal Joints - U-Joints BY SIZE - 1310 Series U-Joint 3.219 X 3.219 - 1.062 - 1.125 outside snap ring
- Driveline Parts - Universal Joints
Shipping Information
- Item Requires Shipping
- 1.4 lbs.
- W6.0000” x H5.0000” x L2.0000”
