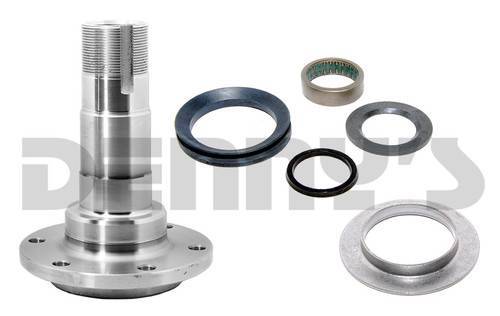

Dana Spicer 707178X SPINDLE fits 1980 to 1992 Ford Bronco, F150 with DANA 44 IFS front axle

DANA SPICER 707178X

• SPINDLE
  • Replaces old number Dana Spicer 41928
  • Comes with Dana Spicer 706527x spindle bearing, spindle seals and 36364 seal retainer
    • Ready to bolt in....Inner spindle needle bearing has been pressed in place at the proper depth
• Fits Ford Bronco with Dana 44 IFS front axle
  • 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
• Fits Ford F150 with Dana 44 IFS front axle
  • 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

DIMENSIONS:

• KEYWAY SLOT = .312 in. wide (5/16 inch)
• BORE ID = 1.300 inches
• A = 1.622 in. OD for Outer Wheel Bearing
• B = 1.778 in. OD for Inner Wheel Bearing
• C = 2-1/2 in. OD for Seal
• D = 3-3/8 in.
• E = 1/2 in.
• F = 3/8 in.
• G = 5-7/16 in.
• H = 6-1/4 in.
• K = 4-3/4 in.
• Bolt Holes = 6
• Bolt Hole Diameter = .400 in.
