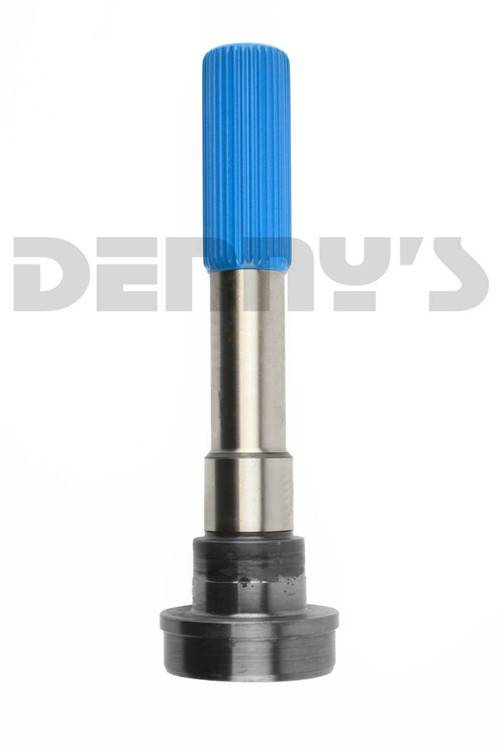

Dana Spicer 3-53-1991 MIDSHIP SPLINE Fits 2.75 inch .065 wall tube 1.375 inch Diameter with 31/32 Splines
Part #:
3-53-1991
Your Cost $195.25
Sorry, sold out

DANA SPICER 3-53-1991

  • MIDSHIP SPLINE
  • Use with Center Support Bearing


Spicer
Dana Spicer 3-53-1991 MIDSHIP SPLINE Fits 2.75 inch .065 wall tube 1.375 inch Diameter with 31/32 Splines
Dana Spicer 3-53-1991 MIDSHIP SPLINE Fits 2.75 inch .065 wall tubing 1.375 inch Diameter with 31/32 Splines
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $195.25

DANA SPICER 3-53-1991

  • MIDSHIP SPLINE
  • Use with Center Support Bearing
  • Fits any series 31 based on 32 Spline SLIP YOKE designed for 1.375 inch diameter spline
    • Fits TUBE DIAMETER = 2.75 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .065 inch Tube wall thickness
    • Major SPLINE Diameter = 1.375
    • SPLINES = 31/32
    • STYLE = 2
    • B = 1.719
    • C = 1.378
    • G = 1.125
    • K = 8.812
    • L = 3.344
    • Y = 7.469
  • SPECIAL NOTES:
    • Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)



CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 3-53-1991 MIDSHIP SPLINE Fits 2.75 inch .065 wall tube 1.375 inch Diameter with 31/32 Splines

Dana Spicer 3-53-1991 MIDSHIP SPLINE Fits 2.75 inch .065 wall tubing 1.375 inch Diameter with 31/32 Splines
