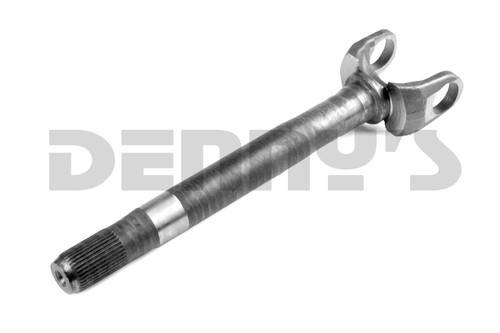

DANA SPICER 76660-1X LEFT INNER AXLE 35 splines 16.17 inches CL to end fits 1989 to 1998 F-350 with DANA 60 FRONT
76660-1X
DANA SPICER 76660-1X
LEFT INNER AXLE SHAFT - DRIVERS SIDE

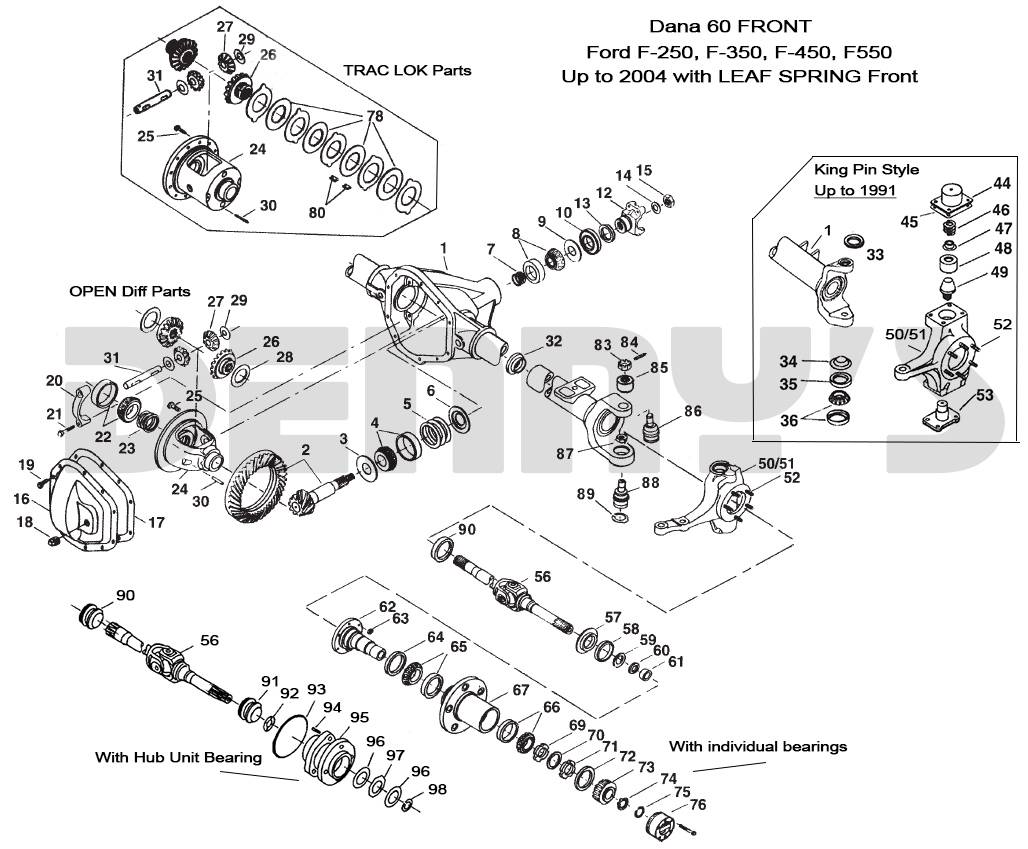

- Fits FORD F-350 with DANA 60 FRONT
- 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
- DOES NOT FIT 1999 and newer
Fits the following universal joints
- 5-806X
- SPL55-3X
- SPL55-4X
DIMENSIONS
- C1 = 1.50 diameter wiith 35 splines
- C =16.17 inches Centerline of u-joint to end of yoke
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Limited Supply: only 1 remaining
Shipping: FREE GROUND Shipping**
**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.
Pricing:
$299.95
Description
DANA SPICER 76660-1X
LEFT INNER AXLE SHAFT - DRIVERS SIDE
- Fits FORD F-350 with DANA 60 FRONT
- 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
- DOES NOT FIT 1999 and newer
Fits the following universal joints
- 5-806X
- SPL55-3X
- SPL55-4X
DIMENSIONS
- C1 = 1.50 diameter wiith 35 splines
- C =16.17 inches Centerline of u-joint to end of yoke
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
Details
- 76660-1X
- 76660-1X
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 13.0 lbs.
- W6.0000” x H5.0000” x L20.0000”
