DANA SPICER 3-70-28X Strap and Bolt Set 1350/1410 Series

3-70-28X

DANA SPICER 3-70-28X

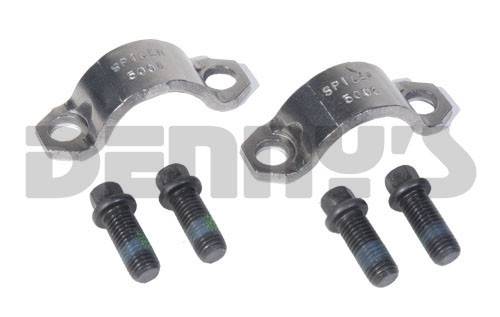

Strap and Bolt Set for Dana 1350 and 1410 Series yokes.

  • Comes with 2 straps and 4 bolts.
  • Use on DANA 1350 and 1410 series end yokes, pinion yokes and transfer case yokes
  • FITS BEARING CAP = 1 3/16 (1.187) inches
  • CL to CL = 1.806 inches
  • THREAD = 5/16 - 24 (.312 - 24)
  • BOLT LENGTH = .750
  • RECOMMENDED TORQUE = 25 - 30 LB. FT

Alternate part number

Pricing: $7.94

Customize Your Item

- -
 * required
Qty:

Description

DANA SPICER 3-70-28X

Strap and Bolt Set for Dana 1350 and 1410 Series pinion yoke.

  • Comes with 2 straps and 4 bolts.
  • Use on DANA 1350 and 1410 series end yokes, pinion yokes and transfer case yokes
  • FITS BEARING CAP = 1 3/16 (1.187) inches
  • CL to CL = 1.806 inches
  • THREAD = 5/16 - 24 (.312 - 24)
  • BOLT LENGTH = .750
  • RECOMMENDED TORQUE = 25 - 30 LB. FT

Alternate part number



Details

  • 3-70-28X
  • 3-70-28X
  • Spicer
  • Available
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 0.4 lbs.
  • W2.0000” x H2.0000” x L1.0000”
