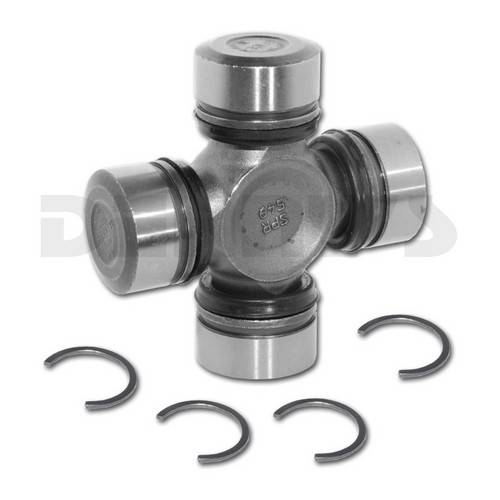

Dana Spicer 5-760X JEEP Front 4x4 Axle Universal Joint Non Greaseable

Dana Spicer 5-760X

4x4 Jeep Front Axle U-joint.  Maintenance Free

This u-joint is used on early Jeep, Bronco, Chevy, Dodge, International and Ford 4X4 trucks.     Easy to spot on open knuckle Dana 30 and 44 front axles and also on GM Corporate 8.5 inch front axles by measuring the bearing cap diameter.  Utilizes inside "C" Clips to lock u-joint in place.

• Dimension A = 2.188 inches ( 2 3/16 inches )
• Dimension B = 2.188 inches ( 2 3/16 inches )
• Dimension C = 1.188 inches ( 1 3/16 inches )
• Dimension D = 1.188 inches ( 1 3/16 inches )

Application Chart

• 1984 - 2001 Jeep Cherokee Compact XJ... all 1 3/16 inch diameter bearing cap
• 1963 - 1988 Jeep 10 Series, 20 Series, 40 Series...all 1 3/16 inch diameter bearing cap
• 1974 - 1983 Jeep Cherokee Fullsize SJ
• 1994 - 1999 Jeep Grand Cherokee all 1 3/16 inch diameter bearing cap
• 1978 - 1983 Jeep Wagoneer
• 1984 - 1990 Jeep Wagoneer Compact XJ... all 1 3/16 inch diameter bearing cap
• 1993 - 1995 Jeep Wrangler YJ...all 1 3/16 inch diameter bearing cap
• 1997 - 2006 Jeep Wrangler TJ...all 1 3/16 inch diameter bearing cap
• 2007 - 2011 Jeep Wrangler JK
  • NOTE: 2007 - 2011 JK Wrangler Rubicon and Unlimited Rubicon use 5-7166X....CLICK HERE
