DANA 44 FRONT - CHEVY > PINION YOKE

Dana 44 Pinion Yoke 1310 series 26 spline

Part Number:
N2-4-8091X

UPC:

083869005300

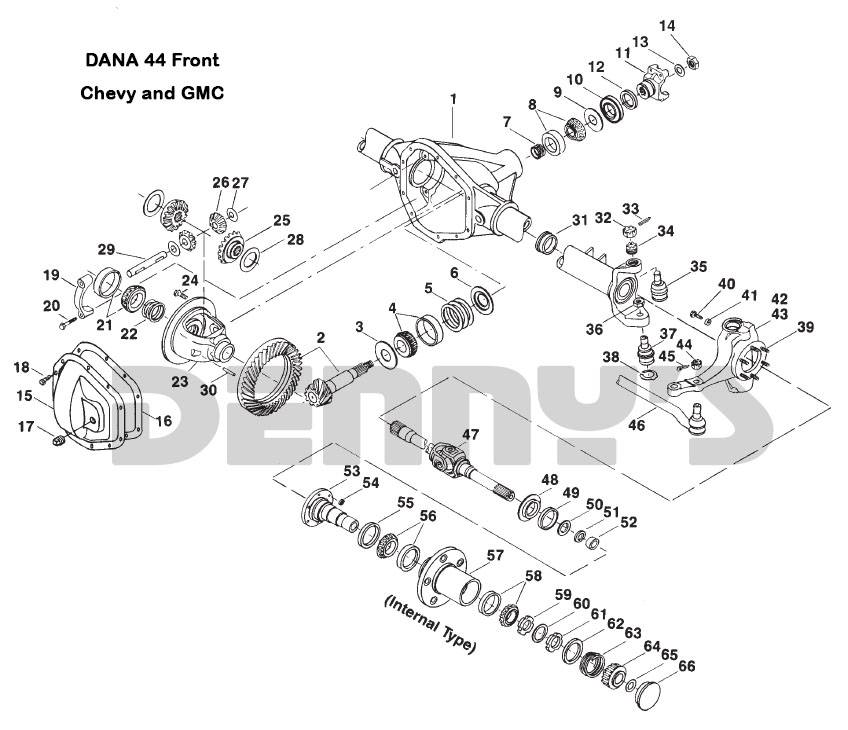

Diagram Number:
11

Your Cost ~~$86.55~~ Sale Price $78.62

You Save $7.93

STATUS: IN STOCK

Dana 44 26 spline 1310 series Neapco Pinion Yoke...U-Bolt style

Neapco

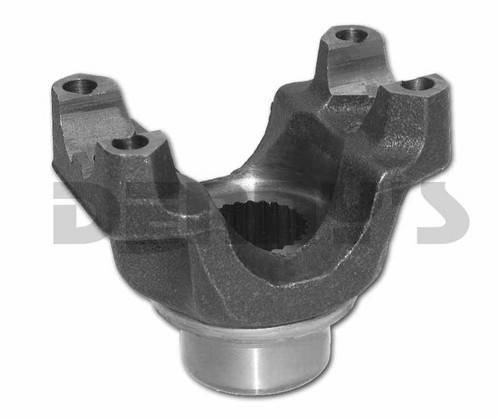

Dana 44 Pinion Yoke 1310 series 26 spline

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$86.55~~ Sale Price $78.62

You Save $7.93

Dana 44 26 spline 1310 series Neapco Pinion Yoke...U-Bolt Style

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
U-Bolt style....U-Bolt Set sold separately...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

image/jpeg

Dana 44 Pinion Yoke 1310 series 26 spline

You May Also Need These Parts to Complete the Job

Dana Spicer 44895 Pinion Seal fits Dana 44 Part#: 44895 $7.10	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.09
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$16.53~~ $15.01
Dana Spicer 2-94-28X U-BOLT SET 1310-1330 Series for 1.062 bearing cap diameter Part#: 2-94-28X $5.98
