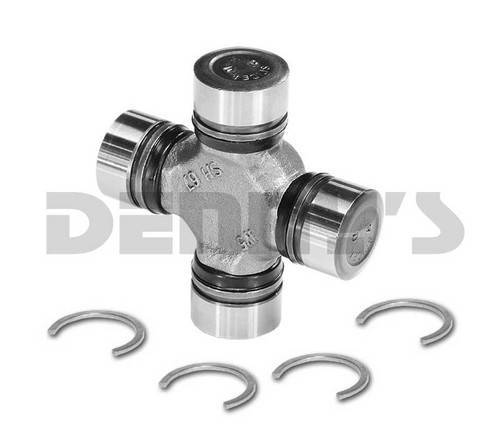

DANA SPICER 5-260X - Dana 30 Front Axle Universal Joint fits Ford Bronco 1966 to 1977 and F-100 from 1970 to 1972 ALL with 1.062 u-joint bearing cap diameter

DANA SPICER 5-260X  4x4 Front Axle U-joint.

Commonly known as the "Small" axle u-joint.

This u-joint was found on early Jeep, Bronco, Chevy, Dodge, International and Ford 4X4 trucks before they realized that it was too small and started to use the larger and stronger 5-760X.

Easy to spot on open knuckle front ends by measuring the bearing cap diameter.

Utilizes inside "C" Clips to lock u-joint in place.

• Dimension A = 2.188 inches ( 2 3/16 inches )
• Dimension B = 2.188 inches ( 2 3/16 inches )
• Dimension C = 1.062 inches ( 1 1/16 inches )
• Dimension D = 1.062 inches ( 1 1/16 inches )
• Non Greaseable

Application Chart

• 1966 - 1977 Ford Bronco
• 1970 - 1972 Ford F100... all 1 1/16 inch diameter bearing cap
