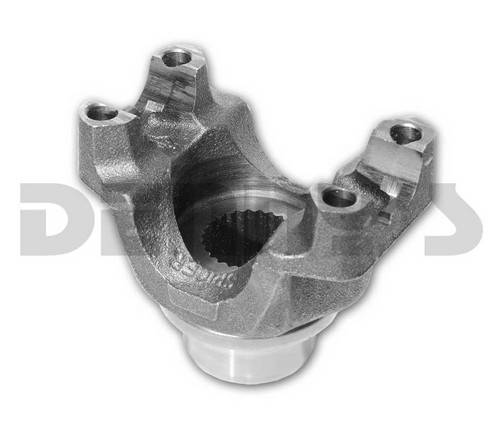

DANA SPICER 2-4-8091X Dana 44 Pinion Yoke 1310 series 26 spline
Diagram Number: 10
2-4-8091X
DANA SPICER 2-4-8091X
Dana 44 26 spline 1310 series ...U-Bolt style
Limited Supply: only 7 remaining
Pricing:
$77.61
Description
DANA SPICER 2-4-8091X
Dana 44 26 spline 1310 series ...U-Bolt Style
- U-Bolt Set Sold Separately
- Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
- 26 splines
- SPLINE OD = 1.146
- D = 1.062
- E = 3.219
- Q = 1.500
- R = 1.552
- S = 3.000
Details
- 2-4-8091X
- 2-4-8091X
- 023913235321
- Spicer
- Available
- New
Categories
- JEEP 4X4 Front and Rear - DANA 44 REAR - JEEP 1967 to 1996 - PINION YOKE
- JEEP REAR ENDS - DANA 44 REAR - JEEP 1967 to 1996 - PINION YOKE
- AXLES and FRONT DIFF Parts 4X4 - JEEP 4X4 Front and Rear - DANA 44 REAR - JEEP 1967 to 1996
- REAR AXLES and DIFFERENTIAL PARTS - DANA 44 REAR - JEEP 1967 to 1996 - PINION YOKE
Shipping Information
- Item Requires Shipping
- 2.1 lbs.
- W6.0000” x H5.0000” x L5.0000”
