Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

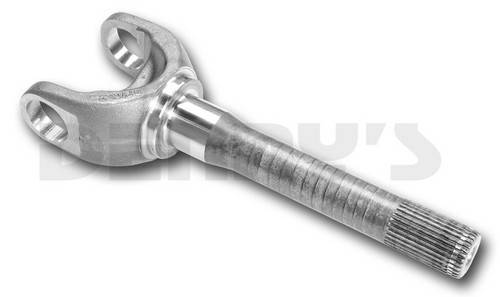

DANA SPICER 620085 OUTER AXLE 30 spline fits 1978, 1979 and 1985 to 1988 F-250 and F-350 with DANA 60 FRONT
Part Number:
620085


UPC:
023913134648
Your Cost $130.54
STATUS:  IN STOCK - FREE SHIPPING

DANA SPICER 620085

OUTER AXLE SHAFT

  • Fits FORD F-250 and F-350 with DANA 60 FRONT
    •  1978, 1979, and 1985, 1986, 1987, 1988
    • NOTE: Ford did not use the Dana 60 in the 1980, 1981, 1982, 1983, 1984 F250 and F350.  See Dana 50 IFS front for those years.
  • FITS the following axle universal joints
    • 5-806X ....old Dana Spicer part number..... see SPL55-3X
    • SPL55-3X Non Greaseable
    • SPL55-4X Greaseable
  • DIMENSIONS
    • B1 = 1.31 diameter wiith 30 splines
    • B =11.4 inches Centerline of u-joint to end of yoke
    • U-Joint Snap Ring Dimension = 3 inches
    • U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
  • SPECIAL NOTES:
    • USE 700014 and 37308 see parts listed below
Spicer
DANA SPICER 620085 OUTER AXLE 30 spline fits 1978, 1979 and 1985 to 1988 F-250 and F-350 with DANA 60 FRONT
DANA SPICER 620085 OUTER AXLE 30 spline fits 1978 to 1988 F-250 and F-350 with DANA 60 FRONT
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $130.54

DANA SPICER 620085

OUTER AXLE SHAFT

  • Fits FORD F-250 and F-350 with DANA 60 FRONT
    •  1978, 1979, and 1985, 1986, 1987, 1988
    • NOTE: Ford did not use the Dana 60 in the 1980, 1981, 1982, 1983, 1984 F250 and F350.  See Dana 50 IFS front for those years.
  • FITS the following axle universal joints
    • 5-806X ....old Dana Spicer part number..... see SPL55-3X
    • SPL55-3X Non Greaseable
    • SPL55-4X Greaseable
  • DIMENSIONS
    • B1 = 1.31 diameter wiith 30 splines
    • B =11.4 inches Centerline of u-joint to end of yoke
    • U-Joint Snap Ring Dimension = 3 inches
    • U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
  • SPECIAL NOTES:
    • USE 700014 and 37308 see parts listed below

Denny's Driveshafts Comparison Dana Spicer 48903 to 620085

image/jpeg
DANA SPICER 620085 OUTER AXLE 30 spline fits 1978, 1979 and 1985 to 1988 F-250 and F-350 with DANA 60 FRONT

DANA SPICER 620085 OUTER AXLE 30 spline fits 1978 to 1988 F-250 and F-350 with DANA 60 FRONT
