SPL170-4X Dana Spicer Universal Joint for SPL170 series driveshafts in heavy trucks and equipment

Dana Spicer SPL170-4X

• Universal Joint - Heavy truck and equipment
• Fits SPL170 series driveshafts
  • Spring Tab Style
• Greaseable

DIMENSIONS

• E = 6.456 in.
• D = 2.165 in.

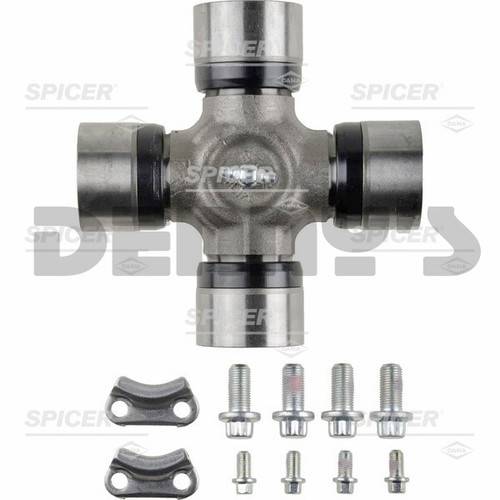

INCLUDED in kit with universal joint ...see photo

• (4) 8-73-114M Bolts
  • M8-1 thread
  • 8mm hex head size
  • Length under head .551 in
  • Overall length .866 in.
  • Grade 10.9
• (4) 5007417 Bolts
  • M12 x 1.25 thread
  • 12mm 12 point head size
  • Length under head 1.0 in
  • Overall length 1.50 in.
  • Grade 10.9
• (2) 232711 Centering Tools
  • plastic installation height tool
• (1) Instruction Sheet

SPL170-3X replaces SPL170X, SPL170-3X
