1920338 CV Slip Yoke 3R series double cardan 1.375 x 31 based on 32 splines fits 2 piece style 5 u-joint driveshaft Chevy GMC S10, S15, Sonoma

Part Number:
1920338

UPC:

Your Cost $91.25

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

1920338

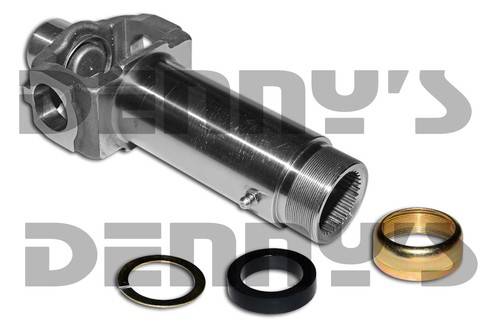

CV Slip Yoke

3R series double cardan

Fits 2 piece style 5 u-joint driveshaft Chevy GMC S10, S15, Sonoma
- This is the slip yoke in the middle of the driveshaft after the center bearing
- Fits Saginaw Style Ball stud yoke with press on ball
Comes with socket liner factory installed
Comes with screw on cap and dust seal
6.625 inches CL to end
1.375 x 32 splines ... has 1 missing spline to index slip yoke correctly
2.556 inches between inside shoulders for c-clip lockup
1.125 inches bore for 3R u-joint
Grease fitting in slip yoke barrel

Requires additional purchase 2-9302 CV Ball socket Kit

Requires additional purchase 3R series inside c-clip style u-joints

1920338 CV Slip Yoke 3R series double cardan 1.375 x 31 based on 32 splines fits 2 piece style 5 u-joint driveshaft Chevy GMC S10, S15, Sonoma

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $91.25

1920338

CV Slip Yoke

3R series double cardan

Fits 2 piece style 5 u-joint driveshaft Chevy GMC S10, S15, Sonoma
- This is the slip yoke in the middle of the driveshaft after the center bearing
- Fits Saginaw Style Ball stud yoke with press on ball
Comes with socket liner factory installed
Comes with screw on cap and dust seal
6.625 inches CL to end
1.375 x 32 splines ... has 1 missing spline to index slip yoke correctly
2.556 inches between inside shoulders for c-clip lockup
1.125 inches bore for 3R u-joint
Grease fitting in slip yoke barrel

Requires additional purchase 2-9302 CV Ball socket Kit

Requires additional purchase 3R series inside c-clip style u-joints

1920338 CV Slip Yoke 3R series double cardan 1.375 x 31 based on 32 splines fits 2 piece style 5 u-joint driveshaft Chevy GMC S10, S15, Sonoma

You May Also Need These Parts to Complete the Job

NEAPCO N3R-28-341 Saginaw CV Ball STUD YOKE Saginaw 3R Series to fit 2.75 inch .065 wall tube Part#: N3R-28-341 $98.54	SPICER 5-3147X 3R Series U-joint Greaseable Part#: 5-3147X $19.25
Dana Spicer 5-795X Universal Joint 3R Series Non greaseable Part#: 5-795X $27.27	NEAPCO N3R-26-057 Chevy S-10 Extreme and GMC Sonoma 1996 to 2003 3R Series OEM Replacement Double Cardan CV center "H" Yoke for inside "C" clip u-joints Part#: N3R-26-057 ~~$68.32~~ $62.35
NEAPCO 2-9302 CV Ball Socket Repair Kit for driveshafts with inside "C" clip u-joints Fits 1973 and newer 3R Series Double Cardan CV driveshafts Part#: 2-9302 $36.95
