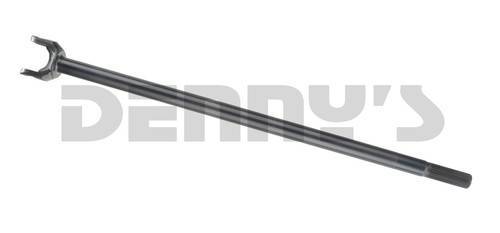

Dana Spicer 10007813 CHROMOLY LEFT INNER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with Dana 44 front axle 30 SPLINES replaces 27902-2X

Part Number:
10007813

UPC:

023913254353

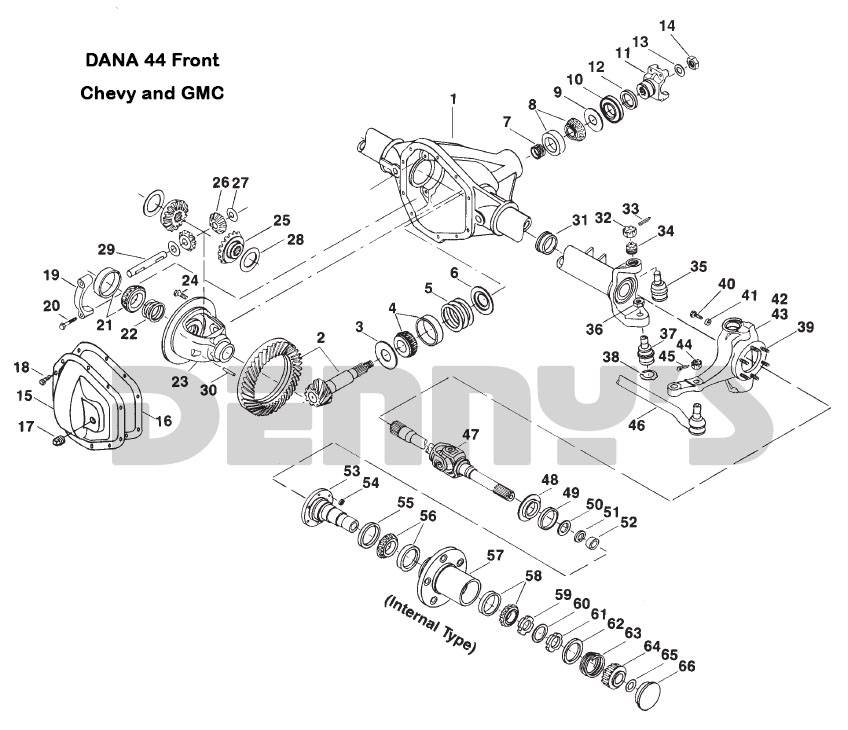

Diagram Number:
47-IN

Your Cost $286.78

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 10007813

CHROMOLY LEFT INNER AXLE SHAFT
- 30 Splines
Fits Dana 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Replacement for Dana Spicer 27902-2X

DIMENSIONS

30 SPLINES
Dimension "C1" = 1.31 inch diameter
Dimension "C" = 36.13 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 10007813 CHROMOLY LEFT INNER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with Dana 44 front axle 30 SPLINES

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $286.78

Dana Spicer 10007813

CHROMOLY LEFT INNER AXLE SHAFT
- 30 Splines
Fits Dana 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Replacement for Dana Spicer 27902-2X

DIMENSIONS

30 SPLINES
Dimension "C1" = 1.31 inch diameter
Dimension "C" = 36.13 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 10007813 CHROMOLY LEFT INNER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with Dana 44 front axle 30 SPLINES

You May Also Need These Parts to Complete the Job

Dana Spicer 36352 Dana 44 TUBE Seal 2.285 OD fits 1972 to 1977 K5, K10 and K20 Part#: 36352 $4.75	Dana Spicer 620216 TUBE Seal 2.280 OD fits Dana 44 front 1978, 1979, 1980 Chevy GMC K5, K10 and K20 Part#: 620216 $5.95

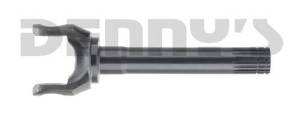

Dana Spicer 10007802 CHROMOLY OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint Part#: 10007802 $163.95	Dana Spicer 5-760X Front Axle Universal Joint for CHEVY and GMC 1973 and newer with DANA 44 Front ALL with 1.188 u-joint bearing cap diameter Part#: 5-760X $28.56
