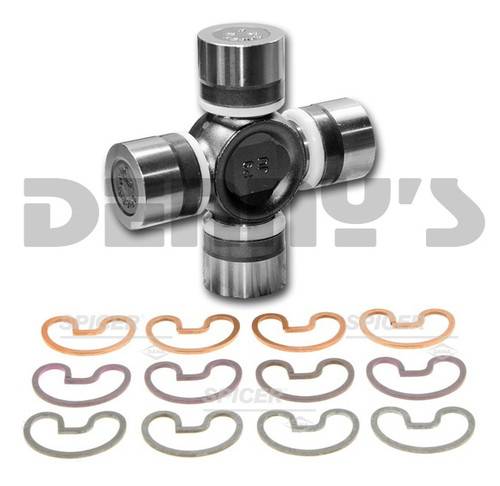

Dana Spicer 5-1350X Front Axle U-Joint fits Dana 50 IFS front in 1980 to 1998 FORD F250, F350
Part #:
5-1350X
Your Cost $17.55

DANA SPICER 5-1350X

1350 SERIES FRONT AXLE UNIVERSAL JOINT

  • Fits Dana 50 IFS front axle in Ford F250 and F350
    • 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

NON GREASEABLE for superior strength

  • Super strong , high mileage with no greasy mess splattered all over your chassis
  • Factory lubed with the correct amount of Dana Spicer synthetic grease for excellent friction reduction
  • Multi lip seals keep the grease in ... water and contaminants out!
  • Cold-forged solid body to ensure better wear and overall strength
  • Heat treated, Case hardened and precision ground bearing caps for durability and the best press fit
  • Thrust washers in the bottom of each bearing cap to eliminate metal on metal contact at the end of the journal to prevent wear and will lower overall operating temperature.
  • Comes with standard thickness copper colored outside style snap rings and also two thicker snap ring versions to allow the experienced installer to control the end play when necessary.

DIMENSIONS

  • Outside Snap Ring Style
  • (A) Cap to Cap installed dimension = 3.625 inches
  • (B) Cap to Cap installed dimension = 3.625 inches
  • (C) Bearing cap diameter = 1.188 inches
  • (D) Bearing cap diameter = 1.188 inches

RECOMMENDATION

It is our opinion here at Denny's Driveshafts that the Dana Spicer 5-1350X universal joint is the absolute best choice when purchasing a 1350 series u-joint.   This is the one to use when building or repairing a high performance street car, 4x4 truck for on or off road use and for all high powered - high rpm drag race, road race and circle track racing applications.

 OPTIONS - see bottom of your screen

  • Greaseable version ...
    • Dana Spicer 5-1350-1X cross drilled body with lube fitting in end of one bearing cap
    • Dana Spicer 5-178X cross drilled body with lube fitting in body
  • Non Greaseable Coated version ....
    • Dana Spicer 5-3615X with coated bearing caps for aluminum drivelines

Spicer
Dana Spicer 5-1350X Front Axle U-Joint fits Dana 50 IFS front in 1980 to 1998 FORD F250, F350
Dana Spicer 5-1350X Front Axle U-Joint fits Dana 50 IFS front in 1980 to 1998 FORD F250, F350
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $17.55

DANA SPICER 5-1350X

1350 SERIES FRONT AXLE UNIVERSAL JOINT

  • Fits Dana 50 IFS front axle in Ford F250 and F350
    • 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

NON GREASEABLE for superior strength

  • Super strong , high mileage with no greasy mess splattered all over your chassis
  • Factory lubed with the correct amount of Dana Spicer synthetic grease for excellent friction reduction
  • Multi lip seals keep the grease in ... water and contaminants out!
  • Cold-forged solid body to ensure better wear and overall strength
  • Heat treated, Case hardened and precision ground bearing caps for durability and the best press fit
  • Thrust washers in the bottom of each bearing cap to eliminate metal on metal contact at the end of the journal to prevent wear and will lower overall operating temperature.
  • Comes with standard thickness copper colored outside style snap rings and also two thicker snap ring versions to allow the experienced installer to control the end play when necessary.

DIMENSIONS

  • Outside Snap Ring Style
  • (A) Cap to Cap installed dimension = 3.625 inches
  • (B) Cap to Cap installed dimension = 3.625 inches
  • (C) Bearing cap diameter = 1.188 inches
  • (D) Bearing cap diameter = 1.188 inches

RECOMMENDATION

It is our opinion here at Denny's Driveshafts that the Dana Spicer 5-1350X universal joint is the absolute best choice when purchasing a 1350 series u-joint.   This is the one to use when building or repairing a high performance street car, 4x4 truck for on or off road use and for all high powered - high rpm drag race, road race and circle track racing applications.

 OPTIONS - see bottom of your screen

  • Greaseable version ...
    • Dana Spicer 5-1350-1X cross drilled body with lube fitting in end of one bearing cap
    • Dana Spicer 5-178X cross drilled body with lube fitting in body
  • Non Greaseable Coated version ....
    • Dana Spicer 5-3615X with coated bearing caps for aluminum drivelines
