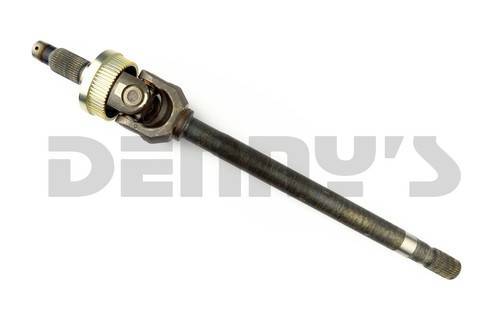

Dana Spicer 74760-1X Left side complete axle fits 1994 to 2001 Dodge Ram 1500, 2500LD with Dana 44 WITH ABS Brakes

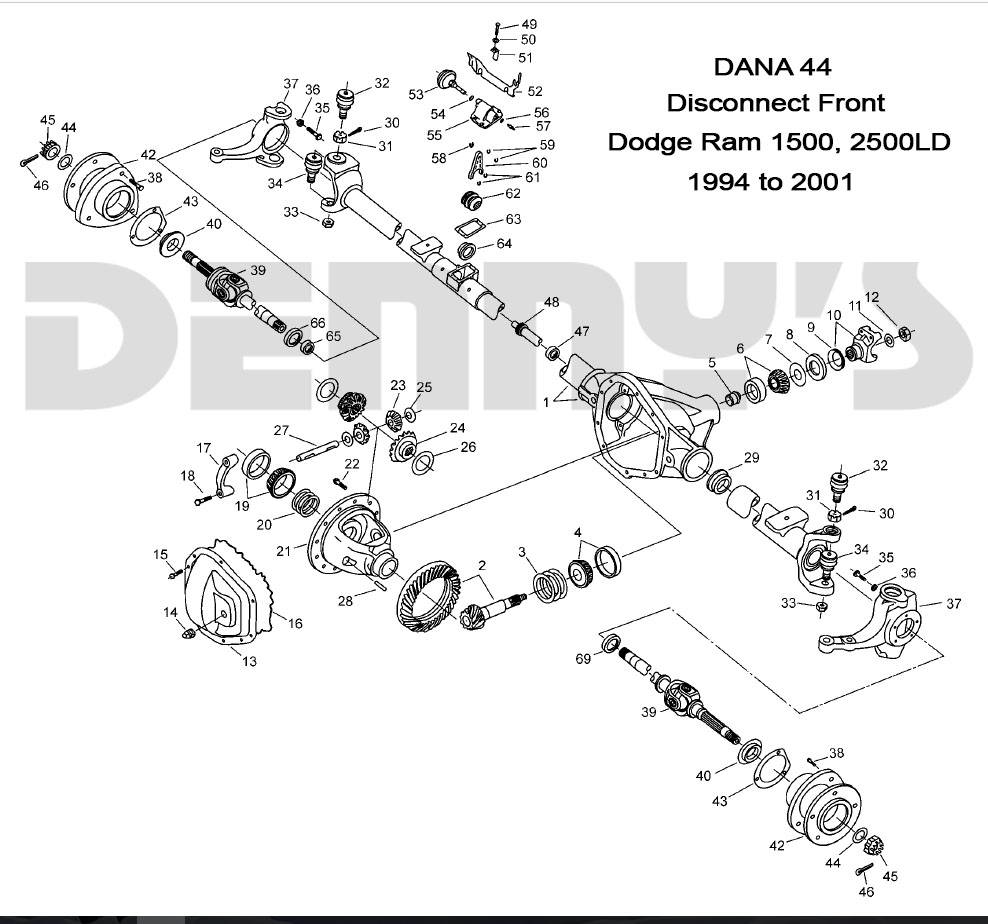

Diagram Number: 39
74760-1X
DANA SPICER 74760-1X
Fits Dana 44 DISCONNECT Front WITH ABS
LEFT SIDE COMPLETE Axle Shaft
- Fits 1994-2001 Dodge 1500 and 2500LD 4x4 trucks... under 8800 Gross Vehicle Weight
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$855.95
Description
DANA SPICER 74760-1X
Fits Dana 44 DISCONNECT Front WITH ABS
LEFT SIDE COMPLETE Axle Shaft
- Fits 1994-2001 Dodge 1500 and 2500LD 4x4 trucks... under 8800 Gross Vehicle Weight
Genuine Dana Spicer Part
- Dimension "A" = 26.89 inches
- Dimension "B" = 6.77
- Dimension "B1" = 1.41 inch diameter with 33 splines
- Dimension "C1" = 1.31 inch diameter with 30 Splines
- Dimension "C" = 20.125 inches
- Comes assembled with Spicer 5-760X Universal Joint
Details
- 74760-1X
- 74760-1X
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 19.0 lbs.
- W6.0000” x H5.0000” x L29.0000”
