Dana Spicer 2-4-8051-1X Pinion Yoke 1330 series fits DANA 60,61,70 with 29 spline pinion, Strap and Bolt style

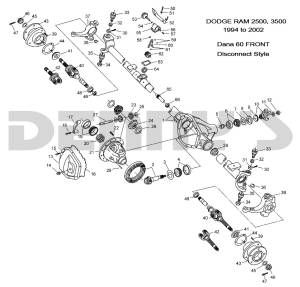

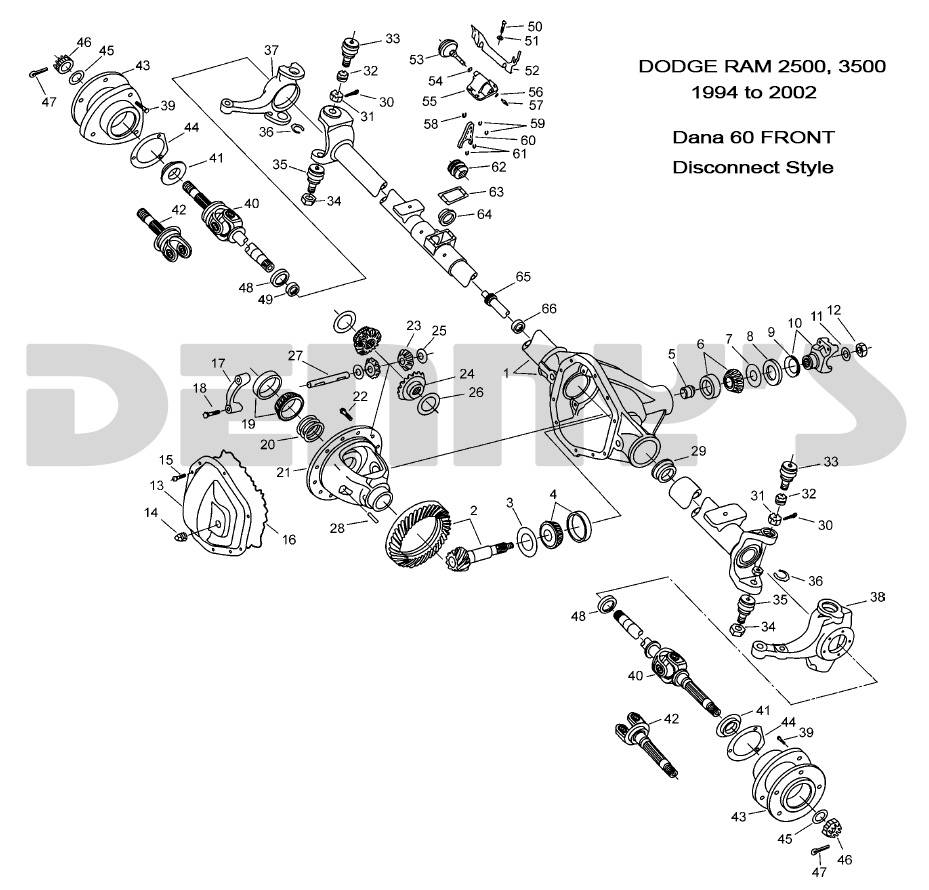

Diagram Number: 10
2-4-8051-1X
Dana Spicer 2-4-8051-1X

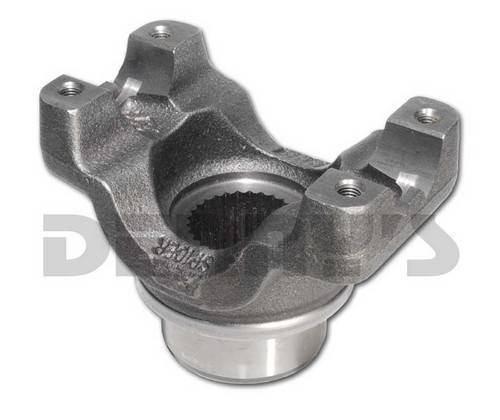

Dana 60 29 spline 1330 series Pinion Yoke. Strap and Bolt Style.
Not Available
Pricing:
$145.95
Description
Dana Spicer 2-4-8051-1X
Dana 60, 61, 70
29 spline 1330 series Pinion Yoke
Strap and Bolt Style.
- Strap & Bolt set can be purchased separately at bottom of this page.
- 1330 SERIES
- 29 SPLINES
- SPLINE OD = 1.276
- D = 1.062
- E = 3.625
- Q = 1.500
- R = 1.875
- S = 2.938
Details
- 2-4-8051-1X
- 2-4-8051-1X
- Spicer
- Temporarily Not Available
- New
Categories
- DODGE 4X4 Front - DANA 60 FRONT 1975 - 1993 DODGE W200, W250, W300, W350 - PINION FLANGE/YOKE
- DODGE 4X4 Front - DANA 60 FRONT - DODGE 1994 - 2002 - PINION YOKE
- FORD 4X4 Front - DANA 60 FRONT - FORD 1975 to 2004 - PINION YOKE
- AXLES and FRONT DIFF Parts 4X4 - DODGE 4X4 Front - DANA 70 FRONT 1967-1978 - DODGE W200HD, W300HD, W600HD
- PINION YOKES - Front and Rear End - Dana - ALL MODELS - Dana 60, 61 and Dana 70
- Dana - ALL MODELS - Dana 60, 61 and Dana 70 - 29 SPLINES
- Dana 60 REAR END - FORD 1978 to 1998 - PINION YOKES - NUTS - WASHER - 1330 series
- PINION YOKE/FLANGE - OUTSIDE SNAP RING Style - Fits 3.625 x 1.062 U-Joint - 1330 Series
- DANA 60 FRONT 1975 - 1993 DODGE W200, W250, W300, W350 - PINION FLANGE/YOKE - 1330 SERIES
- DANA 60 FRONT - DODGE 1994 - 2002 - PINION YOKE - 1330 Series
- DANA 60 FRONT - FORD 1975 to 2004 - PINION YOKE - 1330 SERIES
- Dana 60, 61 and Dana 70 - 29 SPLINES - 29 SPLINES - 1330 Series
