DANA 44 FRONT - CHEVY

Dana 44 front axle and diff parts for Chevy and GMC K5, K10, K20 at Denny's Driveshafts



DANA 44

Front Axle and Diff Parts

Chevy K5 Blazer, K10, K20, GMC Jimmy, K15, K25

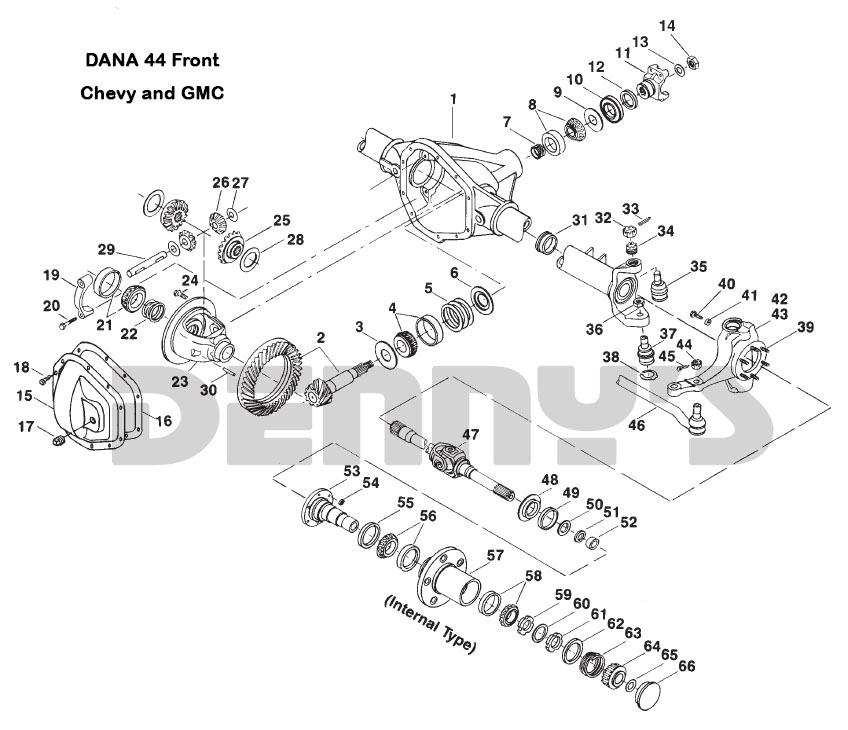

Dana 44 front axle parts for Chevy and GMC K5, K10, K20 at Denny's Driveshafts



Diagram # Part # Description Diagram #
Part #
Description
 1  ****  Housing - for referrence only  39  36326-2  Spindle Stud and nut
 2  Multiple  Ring and Pinion Gear Set  40  ****  Stop Screw
 3  30764  Slinger - Inner Pinion Bearing  41  ****  Jam nut
 4  706031X  Inner Pinion Bearing  42  Multiple  AXLE shaft parts
 5  Multiple  Shims - Diff and Pinion kit  43  ****  Knuckle
 6  30765  Baffle  44  ****  Nut
 7  Multiple  Shims - Diff and Pinion kit  45  ****  Cotter Pin
 7  Multiple  Shims  46  ****  Tie Rod
 8  706030X  Outer Pinion Bearing  47  Multiple  AXLE shaft parts
 9  13575  Slinger - for Outer Bearing  48  36364  Dust shield
 10  44895  Pinion Seal  49  38128  Seal - see 706527X
 11  Multiple  Pinion Yoke  50  38106  Thrustwasher - see 706527X
 12  ****  Dust shield for pinion yoke  51  36361  Seal - see 706527X
 13  30186  Pinion Washer  52  550759  Inner Spindle bearing
 14  30185  Pinion Nut  53  Multiple  Spindle
 15  706112X  Diff Cover  54  CLN375-24  Nut
 16  38615  Cover Gasket - RTV  55  Multiple  Wheel Hub Seal
 17  36472  Plug  56  Multiple  Inner Wheel Bearing
 18  34279  Cover bolts  57  ****  Hub
 19  ****  Diff bearing cap  58  Multiple  Outer Wheel Bearing
 20  48632-1  Cap bolt  59  21588  Inner Nut with Pin
 21  706032X  Diff Bearings  60  36569  Washer with holes
 22  Multiple  Shims  61  31139  Outer Nut
 23  Multiple  Diff Case  62  32589  Cup for spring
 24  41221  Ring Gear Bolt  63  35218  Spring
 25  40194  Diff Large Spider Gear  64  42667  Gear
 26  17717  Diff Small Spider Gear  65  31624  Snap ring
 27  13338-3  Cupped thrustwasher  66  44328  Cap
 28  32121  Flat Thrustwasher
 25, 26, 27, 28, 29, 30  706027X  Spider Gear Kit
 29  39194  Cross pin
 30  13449  Lock pin
 31  Multiple  Axle tube seal
 32 - 38  706116X  Ball Joint Set





DANA 44 FRONT - CHEVY

AXLE PARTS

AXLE U-JOINTS

UP TO 1972

1973 AND NEWER

AXLE - OUTER AXLE SEAL RETAINER

AXLE - OUTER AXLE SNAP RING

Snap Ring for Outer Axle Shafts DANA 44 CLICK HERE for More Details Part Number: 31624
Diagram Number:
65
$0.76
IN STOCK

AXLES - OUTER 1969 to 1972

AXLES - OUTER 1973 to 1980

AXLES - INNER 1973 to 1980

AXLES - COMPLETE ASSY 1973 to 1980

BALL JOINTS

Dana Spicer 35417 Adjusting sleeve for Chevy GMC upper ball joint CLICK HERE for More Details Part Number: 35417
Diagram Number:
34
$22.95
IN STOCK

BEARINGS and SEALS

AXLE - TUBE SEAL

DIFFERENTIAL - MASTER KIT

DIFFERENTIAL BEARINGS

Dana Spicer 706032X BEARING KIT includes (2) 25590 and (2) 25523 CLICK HERE for More Details Part Number: 706032X
Diagram Number:
21
$52.35
$45.95
IN STOCK

PINION BEARINGS

Dana Spicer 30764 pinion oil slinger 4.0 inch OD fits Dana 44 CLICK HERE for More Details Part Number: 30764
Diagram Number:
3
$2.25
IN STOCK
Dana Spicer 706030X BEARING KIT includes 02820 and 02872 CLICK HERE for More Details Part Number: 706030X
Diagram Number:
8
$41.52
$36.25
IN STOCK
Dana Spicer 706031X BEARING KIT includes 31594 and 31520 CLICK HERE for More Details Part Number: 706031X
Diagram Number:
4
$42.88
$36.55
IN STOCK

PINION SEAL

Dana 44 Pinion Seal CLICK HERE for More Details Part Number: 44895
Diagram Number:
10
$7.10

SOLD OUT

INNER WHEEL BEARING - 1/2 TON

INNER WHEEL BEARING - 3/4 TON

OUTER WHEEL BEARING - 1/2 TON

OUTER WHEEL BEARING - 3/4 TON

WHEEL SEAL - 1/2 TON

WHEEL SEAL - 3/4 TON

SPINDLE BEARINGS AND SEALS

Dana Spicer 36361 V-Ring Rubber Seal fits Dana 44 front spindle CLICK HERE for More Details Part Number: 36361
Diagram Number:
49
$5.95
IN STOCK
Dana Spicer 38106 thrust washer for inner bearing on front spindle CLICK HERE for More Details Part Number: 38106
Diagram Number:
50
$2.48
IN STOCK
Dana Spicer 38128 V-Ring Rubber Seal fits Dana 30, 44 front spindle CLICK HERE for More Details Part Number: 38128
Diagram Number:
51
$5.95
IN STOCK

SPINDLE PARTS

SPINDLE

SPINDLE NUTS

DANA SPICER 36569 - Spindle Washer Locking Ring with holes CLICK HERE for More Details Part Number: 36569
Diagram Number:
60
$2.54
IN STOCK

SPINDLE STUDS

.375-24 Cone Lock NUT 3/8 inch fine thread self locking nut zinc plated CLICK HERE for More Details Part Number: CLN375-24
Diagram Number:
54
$0.45
IN STOCK

DIFF PARTS

DIFFERENTIAL CARRIER

Dana Spicer 39194 Diff Cross Shaft PIN fits OPEN DIFF DANA 44 FRONT CLICK HERE for More Details Part Number: 39194
Diagram Number:
29
$12.38
IN STOCK
Dana Spicer 73611X Trac Lok Differential Loaded Carrier fits 3.73 and down ratio gears CLICK HERE for More Details Part Number: 73611X
Diagram Number:
23
$695.95
$535.95
IN STOCK
FREE SHIPPING

GEARS

3.07 RATIO

3.31 RATIO

3.54 RATIO

3.73 RATIO

3.92 RATIO

4.09 RATIO

4.27 RATIO

4.56 RATIO

5.38 RATIO

5.89 RATIO

DIFF SETUP SHIMS

COVER and GASKET

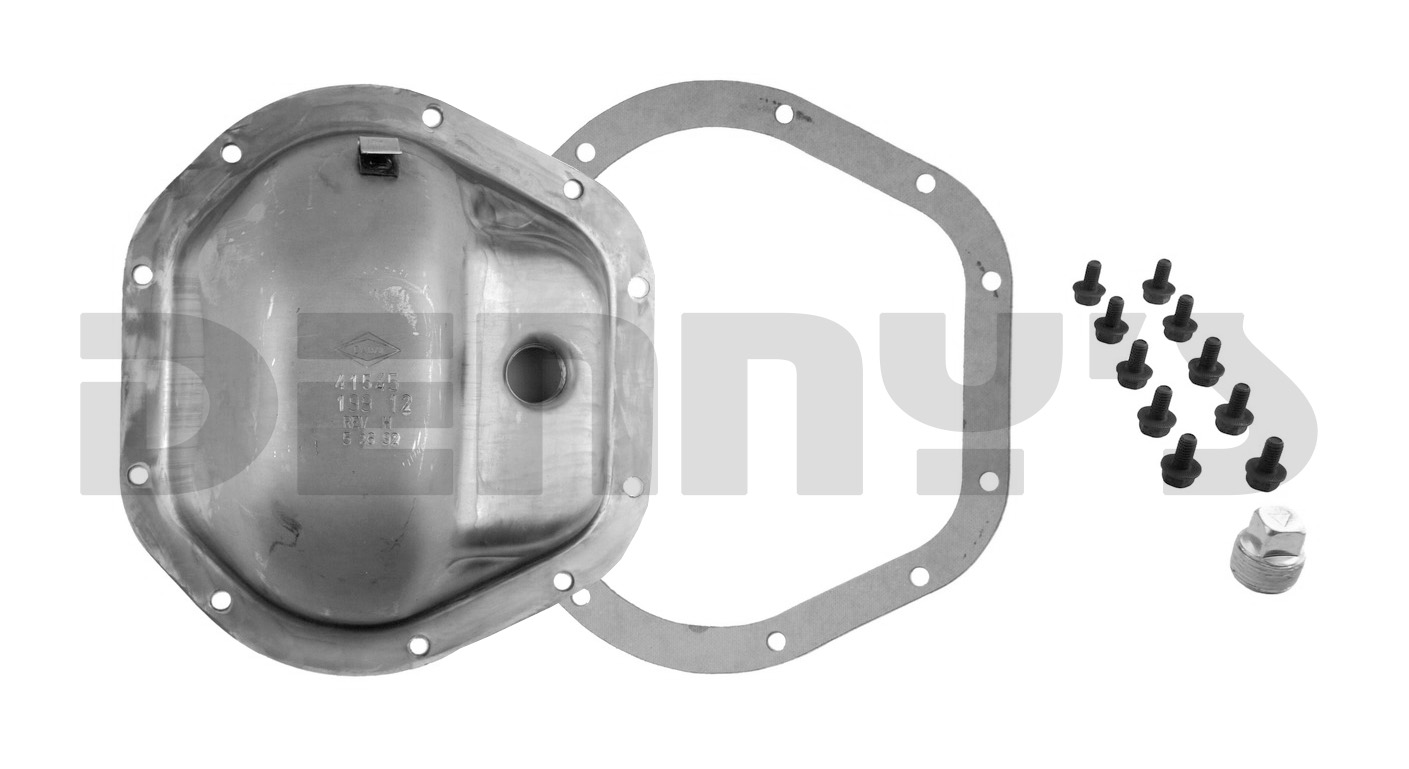

Dana Spicer 706112X Diff Cover Kit fits DANA 44 Front or Rear end CLICK HERE for More Details Part Number: 706112X
Diagram Number:
15
$39.95
IN STOCK
Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10
Diagram Number:
16
$4.94
IN STOCK
Dana Spicer 36472 Plug for Differential Cover CLICK HERE for More Details Part Number: 36472
Diagram Number:
17
$8.83
IN STOCK

PINION YOKE

Dana 44 Pinion Yoke 1310 series 26 spline CLICK HERE for More Details Part Number: N2-4-8091X
Diagram Number:
11
$86.55
$78.62
IN STOCK
Dana Spicer 2-4-3581-1X Pinion Yoke fits CHEVY DANA 44 with 26 splines 1330 Series CLICK HERE for More Details Part Number: 2-4-3581-1X
Diagram Number:
11
$83.95
$69.95
IN STOCK
6011125 Pinion Yoke FORGED 1350 series U-Bolt style 26 splines fits Dana 44 front or rear end CLICK HERE for More Details Part Number: 6011125
Diagram Number:
11
$165.95
IN STOCK
FREE SHIPPING

PINION NUT and WASHER

Dana 44 Pinion WASHER CLICK HERE for More Details Part Number: 30186
Diagram Number:
12
$0.35
IN STOCK
Dana Spicer 30185 Dana 44 Pinion NUT CLICK HERE for More Details Part Number: 30185
Diagram Number:
14
$0.95
IN STOCK

HUB CAP / DRIVE GEAR

Dana Spicer 32589 Spring Retainer Plate CLICK HERE for More Details Part Number: 32589
Diagram Number:
62
$4.95
IN STOCK
Dana Spicer 35218 Spring CLICK HERE for More Details Part Number: 35218
Diagram Number:
63
$26.95
IN STOCK
