Dana 60 Rear end exploded view Dodge at Denny's Driveshafts

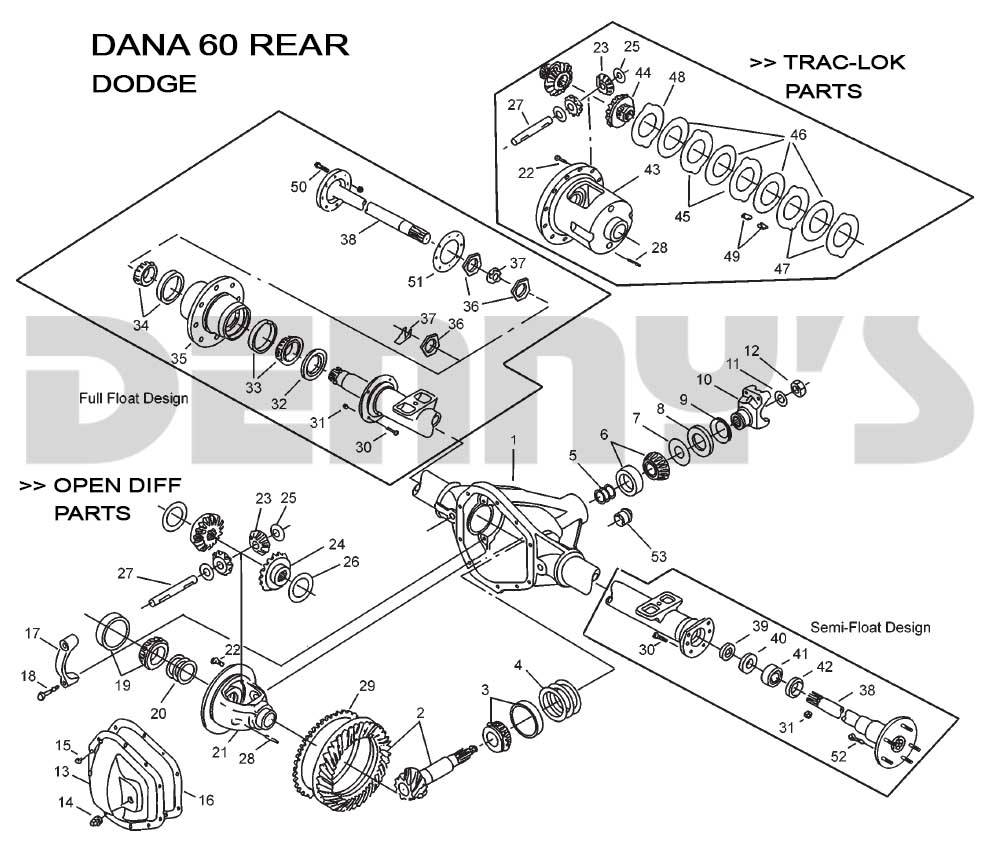

Diagram #	Description	Diagram #	Description
1	Housing - Reference Only	29	ABS Tone Ring
2	Gear Set - See Ring and Pinion Gear	30	Bolt
3	Inner Pinion Bearing	31	Nut
4	Shims	32	Seal - Full Float
5	Shims	33	Inner Hub Bearing - Full Float
6	Outer Pinion Bearing
7	Thrustwasher	34	Outer Hub Bearing - Full Float
8	Pinion Seal
9	Dust shield - comes with pinion yoke	35	Hub - Full Float
10	Pinion Yoke	36	Nut - Full Float
11	Washer	37	Lock - Full Float
12	Pinion Nut	38	Axle Shaft
13	Diff Cover	39	Seal - Semi Float
14	Fill Plug	40	Retainer - Semi Float
15	Cover Bolt	41	Bearing - Semi Float
16	RTV - replaces gasket	42
17	Bearing Cap	43	Diff Case - Trac Lok
18	Bolt for bearing cap	44	Side Gear - Trac Lok
19	Diff side bearings	45-49	Posi Plate parts - Trac Lok
20	Shims	50	Bolt - Full Float
21	Diff Case - Open Diff	51	Gasket - Full Float
22	Ring Gear Bolt	52	Stud - Semi Float
23	Small Spider Gear	53	Crush Collar
24	Side Gear - Open Diff
23-27	Spider Gear Kit - Open Diff
25	Thrust washer - small pinion
26	Thrust washer - side gear
27	Cross pin - Open diff
28	Roll Pin

DANA 60 REAR - DODGE

ABS TONE RING

	Dana Spicer 42928 ABS Tone Ring for Dana 60 rear CLICK HERE for More Details Part Number: 42928 Diagram Number: 29	$41.01	IN STOCK

BEARINGS - SEALS - SHIMS

DIFF BEARINGS

	DT Components DRK-331AMK Master Bearing Kit fits Dana 60 REAR 1994-2008 Dodge CLICK HERE for More Details Part Number: DRK-331AMK	~~$209.95~~ $186.95	IN STOCK FREE SHIPPING

	DT Components DRK-331MK Master Bearing Kit fits various Dana 60 Rear Chevy, GMC, Ford, Dodge, Plymouth and Jeep CLICK HERE for More Details Part Number: DRK-331MK	~~$199.95~~ $179.95	SOLD OUT

	DANA SPICER 706047X Differential carrier bearing kit includes (2) 382S and (2) 387A CLICK HERE for More Details Part Number: 706047X Diagram Number: 19	$82.91	IN STOCK

PINION BEARINGS- SEALS

	DANA SPICER 706045X Outer pinion bearing kit includes HM88510 and HM88542 CLICK HERE for More Details Part Number: 706045X Diagram Number: 6	$29.29	IN STOCK

	DANA SPICER 706046X Inner pinion bearing kit includes HM803110 and HM803146 CLICK HERE for More Details Part Number: 706046X Diagram Number: 3	$40.72	IN STOCK

	Dana Spicer 42449 Pinion Seal fits 1975 to 1999 DODGE DANA 60 CLICK HERE for More Details Part Number: 42449 Diagram Number: 8	$7.77	IN STOCK

	Dana Spicer 47885 Pinion Seal Fits 2000, 2001 DODGE Ram 2500, 3500 DANA 60 Rear CLICK HERE for More Details Part Number: 47885 Diagram Number: 8	$27.36	IN STOCK

	Dana Spicer 2009802 Pinion Seal Fits 2001 DODGE Ram 2500, 3500 DANA 60 Rear CLICK HERE for More Details Part Number: 2009802 Diagram Number: 8	$15.25	IN STOCK

	Dana Spicer 42737 THRUST WASHER 2.250 inch OD for Outer Pinion Bearing for DANA 60, 61, 70 front or rear CLICK HERE for More Details Part Number: 42737 Diagram Number: 7	$2.49	IN STOCK

CRUSH SLEEVE

	Dana Spicer 45658 Dana 60 Crush Sleeve / Collapsable Spacer fits Front or Rear end 1994 to 2002 Dodge RAM 2500, 3500 CLICK HERE for More Details Part Number: 45658 Diagram Number: 53	$3.78	IN STOCK

SHIMS

	Dana Spicer 34643 pinion oil slinger 4.5 inch OD fits Dana 60 - See number 3 CLICK HERE for More Details Part Number: 34643 Diagram Number: 3	$7.53	IN STOCK

	Dana Spicer 701126X Shim kit for inner pinion bearing Dana 60 Dodge 1994 - 2002 fits Front and Rear assorted .003, .005, .010 shims plus spacer and oil deflector CLICK HERE for More Details Part Number: 701126X Diagram Number: 4	$25.95	IN STOCK

	DANA SPICER 708012 Differential Carrier SHIM KIT for Dana 60, 61, 70 CLICK HERE for More Details Part Number: 708012 Diagram Number: 20	$31.50	IN STOCK

	DANA SPICER 708020 DIFF and PINION SHIM KIT for Dodge with Dana 60, 61 CLICK HERE for More Details Part Number: 708020 Diagram Number: 4,5,20	$59.95	IN STOCK

WHEEL HUB BEARINGS - SEALS - NUTS - GASKETS

SEMI FLOAT PARTS

	Dana Spicer 35239 Rear Axle SEAL fits Dodge Dana 60 REAR with semi float axles CLICK HERE for More Details Part Number: 35239 Diagram Number: 39	$7.52	IN STOCK

	Dana Spicer 36797 Rear Axle Bearing LOCK COLLAR RETAINER fits Dana 60 REAR with Semi Float Axles CLICK HERE for More Details Part Number: 36797 Diagram Number: 40	$7.75	IN STOCK

	Dana Spicer 565903 Rear Axle WHEEL BEARING fits Dana 60 REAR with semi float axles CLICK HERE for More Details Part Number: 565903 Diagram Number: 41	$17.92	IN STOCK

FULL FLOAT PARTS

	Dana Spicer 35313 Wheel Hub Seal fits Dana 60 Full Float Rear CLICK HERE for More Details Part Number: 35313 Diagram Number: 32	$8.19	SOLD OUT

	Dana Spicer 41373 Locking Wedge for Rear Axle Spindle Nut fits up to 1993 Dodge Dana 60 rear end with full float axles CLICK HERE for More Details Part Number: 41373 Diagram Number: 37	$3.14	IN STOCK

	Dana Spicer 46545 Locking Wedge for Rear Axle Spindle Nut fits 1994 to 2001 Dodge 2500, 3500 with Dana 60 rear end with full float axles CLICK HERE for More Details Part Number: 46545 Diagram Number: 37	$4.58	IN STOCK

	Dana Spicer 47507 Wheel Hub Seal 3.880 OD 2.875 ID fits Dana 60 Full Float Rear CLICK HERE for More Details Part Number: 47507 Diagram Number: 32	$8.64	IN STOCK

	Dana Spicer 39697 Rear Axle Flange Gasket 4.687 inch OD for Dodge with Dana 60 rear with Full Float axles CLICK HERE for More Details Part Number: 39697 Diagram Number: 51	$1.77	IN STOCK

DIFF COVER

	Dana Spicer 34822 Diff Cover BOLT .375-16 fits Dana 60, Super 60, Dana 70, Super 70 CLICK HERE for More Details Part Number: 34822 Diagram Number: 15	$1.69	IN STOCK

	Dana Spicer 38615 Loctite SI 5699 High Performance RTV Silicone Gasket Maker Sealer CLICK HERE for More Details Part Number: 38615 Diagram Number: 16	$6.95

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10 Diagram Number: 16	~~$6.99~~ $5.30	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40 Diagram Number: 16	$23.89	IN STOCK

	Dana Spicer 2014220 Diff Cover fits Dana 60, 61 fill plug hole .980 below center CLICK HERE for More Details Part Number: 2014220 Diagram Number: 13	$58.64	IN STOCK

	Dana Spicer 2011159 Diff Cover fits Dana 60 with fill plug hole 0.480 in. below center CLICK HERE for More Details Part Number: 2011159 Diagram Number: 13	$52.20	IN STOCK

	Dana Spicer 707335X Steel Differential COVER Kit fits Dana 60 with fill plug hole 0.168 in. above center CLICK HERE for More Details Part Number: 707335X Diagram Number: 13	$25.00

	Dana Spicer 10024090 Nodular Iron Gray powdercoat Diff Cover Kit fits Front/Rear Dana 60 fits 1954 to 2018 CLICK HERE for More Details Part Number: 10024090 Diagram Number: 13	$182.87	IN STOCK FREE SHIPPING

	Dana Spicer 43180 Plug for Differential Cover CLICK HERE for More Details Part Number: 43180 Diagram Number: 14	$4.15	IN STOCK

DIFF PARTS - OPEN

	Dana Spicer 30263 Cross Shaft fits Dana 60 Open diff and Track Lok diff case CLICK HERE for More Details Part Number: 30263 Diagram Number: 27	$16.81	IN STOCK

	Dana Spicer 34729 Thrust Washer for side spider gear Open Standard Diff fits Dana 60 CLICK HERE for More Details Part Number: 34729 Diagram Number: 26	$2.07	SOLD OUT

	Dana Spicer 34730 Cupped Thrust Washer for small spider gear on Dana 60 open diff CLICK HERE for More Details Part Number: 34730 Diagram Number: 25	$0.87	IN STOCK

	Dana Spicer 40638 RING GEAR BOLT 1/2-20 RH Grade 8 hex head fits Dana 60, 61, 70, 70U, 70HD front and rear ends CLICK HERE for More Details Part Number: 40638 Diagram Number: 22	$0.69	IN STOCK

	Dana Spicer 44810 ROLL PIN for Diff Spider Cross shaft fits open and trac lok cases Dana 60 Rear with Full Floating axle shafts CLICK HERE for More Details Part Number: 44810 Diagram Number: 28	$2.82	IN STOCK

	706043YK Yukon Open DIFF SPIDER GEAR KIT for Dodge Dana 60 REAR with 1.31 - 30 spline axles CLICK HERE for More Details Part Number: 706043YK Diagram Number: 23-28	$115.95	SOLD OUT

	Dana Spicer 706043X Open DIFF SPIDER GEAR KIT for Dodge Dana 60 REAR with 1.31 - 30 spline axles CLICK HERE for More Details Part Number: 706043X Diagram Number: 22-28	$302.77	SOLD OUT

	Dana Spicer 708010 Standard Open Differential LOADED CASE fits 4.10 ratio and DOWN fits 1.31 - 30 spline axles for Dana 60 Full Float REAR CLICK HERE for More Details Part Number: 708010 Diagram Number: 21	$545.95	IN STOCK FREE SHIPPING

	Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case CLICK HERE for More Details Part Number: 706702X Diagram Number: 22-28	$308.64	IN STOCK FREE SHIPPING

	Yukon 706702YK Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Rear differential case CLICK HERE for More Details Part Number: 706702YK Diagram Number: 23-28	$142.95	IN STOCK FREE SHIPPING

DIFF PARTS - TRAC-LOK

	Dana Spicer 40638 RING GEAR BOLT 1/2-20 RH Grade 8 hex head fits Dana 60, 61, 70, 70U, 70HD front and rear ends CLICK HERE for More Details Part Number: 40638 Diagram Number: 22	$0.69	IN STOCK

	Dana Spicer 40835 Retainer Clip for Trac Lok Positraction Clutch Pack fits DANA 60 Trac Lok CLICK HERE for More Details Part Number: 40835 Diagram Number: 49	$2.72	IN STOCK

	Dana Spicer 707083X TRAC LOK DANA 60 Positraction clutch plate kit FIBER CLUTCHES CLICK HERE for More Details Part Number: 707083X Diagram Number: 45-49	$130.65	IN STOCK FREE SHIPPING

	Dana Spicer 708013 Trac Lok Posi Dana 60 DIFF CARRIER LOADED CASE fits 4.10 ratio and DOWN fits 1.31 - 30 spline axles for Dana 60 Full Float REAR CLICK HERE for More Details Part Number: 708013 Diagram Number: 43	$570.95	IN STOCK FREE SHIPPING

GEARS - CRUSH COLLAR STYLE PINION 1994-2002

	Dana Spicer 708009-1 Ring and Pinion Gear Set Kit 3.55 Ratio (39-11) for Dana 60 Rear 1999 to 2002 Dodge Ram 2500, 3500 - FREE SHIPPING CLICK HERE for More Details Part Number: 708009-1	$550.95	FACTORY DIRECT

	Dana Spicer 708009-2 Ring and Pinion Gear Set Kit 4.10 Ratio (41-10) for Dana 60 Rear 1999 to 2002 Dodge Ram 2500, 3500 - FREE SHIPPING CLICK HERE for More Details Part Number: 708009-2	$540.95

GEARS - SHIM STYLE PINION up to 1998

3.54 RATIO

	Dana Spicer 706033-1X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-1X	$505.95	FACTORY DIRECT

	Dana Spicer 706033-15X Ring and Pinion Gear Set Kit 3.55 Ratio (39-11) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-15X	$750.95

3.73 RATIO

	D60-373 DANA SPICER 76089X DANA 60 GEARS 3.73 (41-11) Ratio Ring and Pinion Gear Set Standard Rotation - FREE SHIPPING CLICK HERE for More Details Part Number: 76089X	$294.44	SOLD OUT

	Dana Spicer 25538-5X Ring and Pinion Gear Set 3.73 Ratio (41-11) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 25538-5X	$322.95

4.10 RATIO

	Dana Spicer 706033-3X Ring and Pinion Gear Set Kit 4.10 Ratio (41-10) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-3X	$530.95	FACTORY DIRECT

	D60-410 DANA SPICER 76047-5X DANA 60 GEARS 4.10 Ratio (41-10) Ring and Pinion Gear Set Standard Rotation - FREE SHIPPING CLICK HERE for More Details Part Number: 76047-5X	$340.95	IN STOCK FREE SHIPPING

	Dana Spicer 706033-16X Ring and Pinion Gear Set Kit 4.10 Ratio (41-10) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-16X	$645.95

4.56 RATIO

	Dana Spicer 706033-4X Ring and Pinion Gear Set Kit 4.56 Ratio (41-09) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-4X	$545.95	FACTORY DIRECT

4.88 RATIO

	D60-488T DANA SPICER 2019214 DANA 60 GEARS 4.88 Ratio (39-08) THICK Ring and Pinion Gear Set Standard Rotation - FREE SHIPPING CLICK HERE for More Details Part Number: 2019214	$332.83	SOLD OUT

	Dana Spicer 25334X Ring and Pinion GEAR SET 4.88 ratio fits 1954 to 2014 Dana 60 standard rotation FRONT/REAR end CLICK HERE for More Details Part Number: 25334X	$305.95	SOLD OUT

5.13 RATIO

	D60-513T DANA SPICER 2019217 DANA 60 GEARS 5.13 Ratio (46-09) THICK Ring and Pinion Gear Set Standard Rotation - FREE SHIPPING CLICK HERE for More Details Part Number: 2019217	$332.83	SOLD OUT

5.38 RATIO

	Dana Spicer 27518X Ring and Pinion GEAR SET 5.38 ratio fits 1954 to 2014 Dana 60 standard rotation FRONT/REAR end CLICK HERE for More Details Part Number: 27518X	$305.95	SOLD OUT

5.86 RATIO

	Dana Spicer 706033-6X Ring and Pinion Gear Set Kit 5.86 Ratio (41-07) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-6X	$420.95

	Dana Spicer 25784X Ring and Pinion GEAR SET 5.86 ratio (41-07) fits 1954 to 2014 Dana 60 standard rotation FRONT/REAR end CLICK HERE for More Details Part Number: 25784X	$280.98	SOLD OUT

6.17 RATIO

	Dana Spicer 706033-7X Ring and Pinion Gear Set Kit 6.17 Ratio (37-06) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-7X	$610.95	FACTORY DIRECT

	Dana Spicer 26628X Ring and Pinion GEAR SET 6.17 ratio (37-06) fits 1954 to 2014 Dana 60 standard rotation FRONT/REAR end CLICK HERE for More Details Part Number: 26628X	$439.95	IN STOCK FREE SHIPPING

7.17 RATIO

	Dana Spicer 706033-8X Ring and Pinion Gear Set Kit 7.17 Ratio (43-06) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING CLICK HERE for More Details Part Number: 706033-8X	$439.95	FACTORY DIRECT

	Dana Spicer 26756X Ring and Pinion GEAR SET 7.17 ratio (43-06) fits 1954 to 2014 Dana 60 standard rotation FRONT/REAR end CLICK HERE for More Details Part Number: 26756X	$310.95	IN STOCK FREE SHIPPING

PINION YOKE/FLANGE

ALL

	Dana 60 Pinion NUT CLICK HERE for More Details Part Number: 30271 Diagram Number: 12	$0.79	IN STOCK

	Dana Spicer 30275 Pinion Washer for DANA 60 CLICK HERE for More Details Part Number: 30275 Diagram Number: 11	$0.39	IN STOCK

	Dana Spicer 2010948 Companion Flange 29 Spline fits Dana 60, 61, 70 Front or Rear ends can be used with 1310, 1330, 1350 and 1410 series flange yokes CLICK HERE for More Details Part Number: 2010948 Diagram Number: 10	$59.32	IN STOCK

INSIDE C-CLIP Style

7290 series - INSIDE CLIPS

	9299944 Chromoly Pinion Yoke u-Bolt style 7290 series fits DANA 60 with 29 spline pinion gear CLICK HERE for More Details Part Number: 9299944 Diagram Number: 10	$139.95	SOLD OUT

	Dana 60 Pinion Yoke 7290 series OE Replacement 29 spline CLICK HERE for More Details Part Number: 9200011 Diagram Number: 10	$105.95

OUTSIDE SNAP RING Style

Fits 3.219 x 1.062 U-Joint - 1310 Series

	Dana Spicer 2-4-3801X Pinion Yoke U-Bolt style 1310 series 29 splines fits Dana 60 front Chevy K30, GMC K35 CLICK HERE for More Details Part Number: 2-4-3801X Diagram Number: 10	$42.53	SOLD OUT

Fits 3.625 x 1.062 U-Joint - 1330 Series

	7274661 Pinion Yoke kit with U-Bolt set for Dodge Dana 60 and 70 fits 1330 series u-joint 3.625 x 1.062 CLICK HERE for More Details Part Number: 7274661 Diagram Number: 10	$167.95

	DANA SPICER 2-4-4291-1X - Pinion Yoke for Dana 60 1330 series 29 spline Strap and Bolt style CLICK HERE for More Details Part Number: 2-4-4291-1X Diagram Number: 10	$68.11	IN STOCK

Fits 3.625 x 1.188 U-Joint - 1350 Series

	9566266 Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion U-BOLT Style CLICK HERE for More Details Part Number: 9566266 Diagram Number: 10	$125.95	IN STOCK FREE SHIPPING

	Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion OEM Strap & Bolt Style CLICK HERE for More Details Part Number: 3-4-5731-1X Diagram Number: 10	$59.66	IN STOCK

Fits 4.188 x 1.188 U-Joint - 1410 Series

	9606112 FORGED Pinion Yoke 1410 series U-Bolt style fits all Dana 60, 61, 70 with 29 spline pinion CLICK HERE for More Details Part Number: 9606112 Diagram Number: 10	$145.95	IN STOCK FREE SHIPPING

	Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series fits Dana 60 and 70 with 29 spline pinion Strap & Bolt Style CLICK HERE for More Details Part Number: 3-4-5711-1X Diagram Number: 10	$90.17	IN STOCK

Fits 4.188 x 1.375 U-Joint - 1480 Series

	Dana Spicer 3-4-13391-1X Pinion Yoke 1480 series fits Dana 60 and 70 with 29 spline pinion Strap & Bolt Style CLICK HERE for More Details Part Number: 3-4-13391-1X Diagram Number: 10	$196.67	IN STOCK FREE SHIPPING
