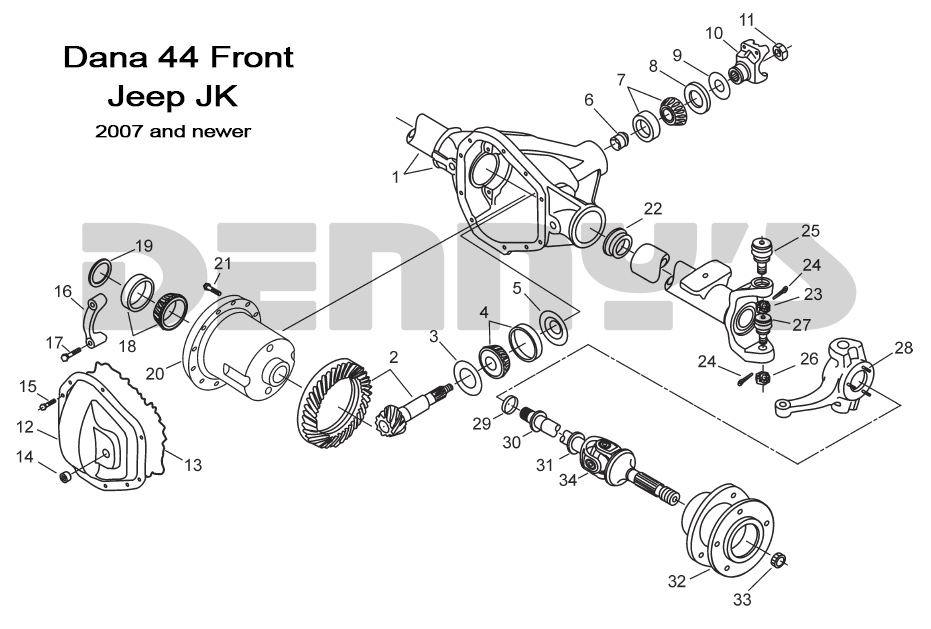

Diagram # | Part # | Description | Diagram # | Part # | Description |
---|---|---|---|---|---|
1 | ***** | Housing - For reference only | 21 | 49242-2 | Ring Gear Bolts (Qty 10) |
2 | Multiple | Gear Set - See Ring and Pinion Gear | 22 | Multiple | Tube Seal |
3 | 701140X | Shim | 23 - 27 | 2007354 | Ball Joint Set |
4 | 707064X | Inner Pinion Bearing Cup and Cone | 28 | 2016794 | Bolt (Qty 3 per side) |
5 | 48741-3 | Baffle | 29 | 41586 | Plug for dead front |
6 | 50614 | Collapsible Spacer | 30 | Multiple | Guide |
7 | 706015X | Outer Pinion Bearing | 31 | 51707 | Slinger |
8 | 2005565 | Slinger | 32 | 10021363 | Hub assembly |
9 | 2004670 | Pinion Seal | 33 | 2008564 | Nut |
10 | 2005008 | Pinion Flange/Yoke | 34 | Multiple | Axle Shafts and U-Joint |
11 | 44189 | Pinion Nut | |||

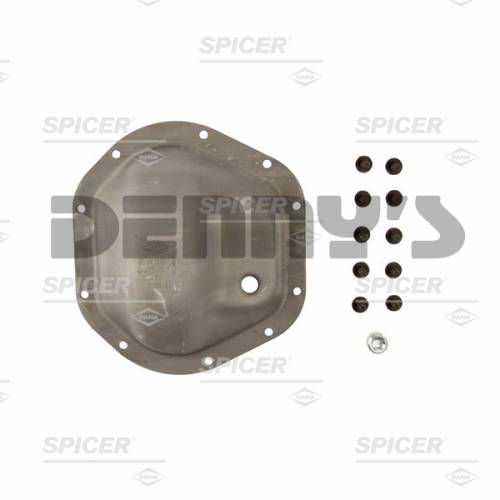

12 | 708175 | Diff Cover | |||
13 | 34685 | Gasket | |||
13 | 38615 | RTV Sealer |
|||
14 | Multiple | Plug for Diff Cover | |||
15 | 34279 | Bolts for Diff Cover Quantity 10 | |||
16 | ***** | Diff Brg Cap - not sold separately | |||
17 | 48632-1 | Bolt for Diff Brg Cap | |||
18 | 2007293 | Diff Bearing Kit Cup and Cone | |||
19 | 2007294 | Diff Bearing Shim Kit | |||
20 | Multiple | Diff Case |
|
