Jeep TJ Wrangler with DANA 44 REAR
1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

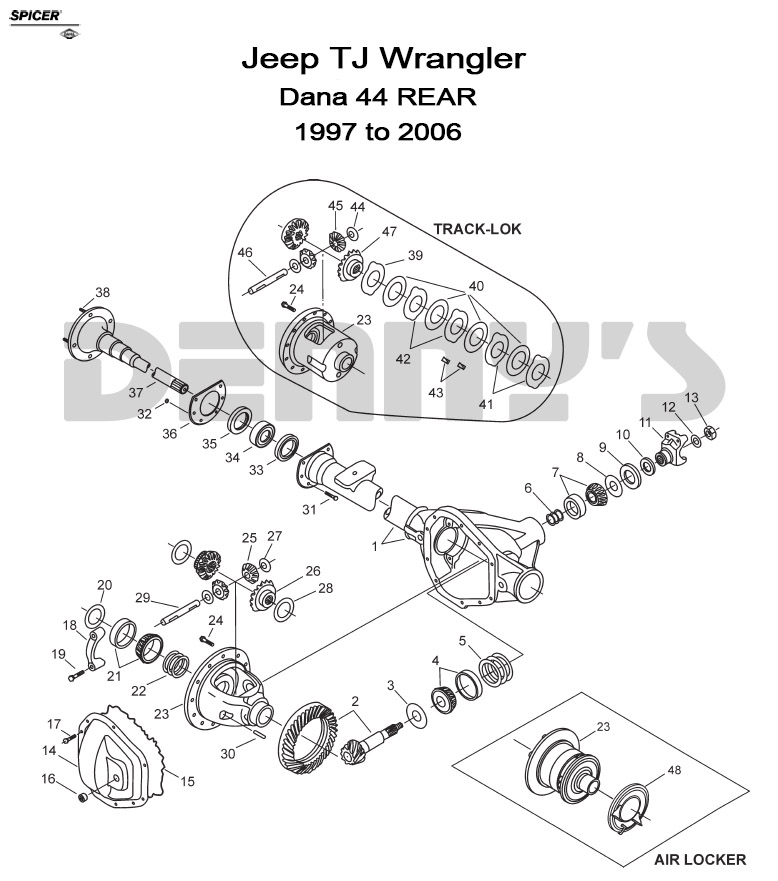

Exploded view of Dana 44 Rear axle and differential for 1997 to 2006 Jeep TJ Wrangler showing axle, seals, retainers, lock collars, bearings, ring gear bolts, shims, cross shaft pins and locks, positraction plate clutch kits for Track Lok, spider gears, thrust washers, ring and pinion gear sets, diff covers and bolts, gaskets, pinion yokes, pinion nuts, washers and more are all available for the Dana 44 Rear end at Denny's Driveshafts and Driveline Parts.
Diagram #
|
Part #
|
Description |
|
Diagram # |
Part # |
Description |
| 1 |
***** |
Housing - For reference only |
|
26 |
45870 |
Diff Large Side Gear - See Spider Gear Section |
| 2 |
Multiple |
Gear Set - See Ring and Pinion Gear |
|
27 |
13338-3 |
Thrust washer for Diff Small Spider Gear - Open Diff |
| 3 |
|
Inner Pinion Shim |
|
28 |
32121 |
Thrust washer for Diff Large Spider Gear - Open Diff |
| 4 |
706031X |
Inner Pinion Bearing Cup and Cone |
|
29 |
39194 |
Diff Cross Shaft - Open Diff |
| 5 |
706358X |
Inner Pinion Brg Shims - See Shim kits |
|
30 |
13449 |
Diff Cross Shaft Lock |
| 6 |
706358X |
Outer Pinion Brg Shims - See Shim kits |
|
31 |
|
Bolt - Brake mounting |
| 7 |
706030X |
Outer Pinion Bearing Cup and Cone |
|
32 |
|
Brake Mounting Nut |
| |
|
|
|
33 - 36 Kit |
Multiple |
Bearing/Seal Kit #33, 34, 35 and 36 |
| 8 |
13575 |
Slinger for Outer Pinion Bearing |
|
33 |
36797 |
Retainer Ring - Wheel Bearing |
| 9 |
Multiple |
Pinion Seal |
|
34 |
565903 |
Wheel Bearing |
| 10 |
47762 |
Inner Oil Seal with Air Locker |
|
35 |
35239 |
Seal outboard |
| 11 |
Multiple |
Pinion Yoke - End Yoke |
|
36 |
Multiple |
Wheel Bearing Oil Seal Retainer |
| 12 |
30186 |
Washer for pinion nut |
|
37 |
Multiple |
Axle Shaft |
| 13 |
Multiple |
Pinion Nut |
|
38 |
Multiple |
Wheel Stud |
| 14 |
42960-1 |

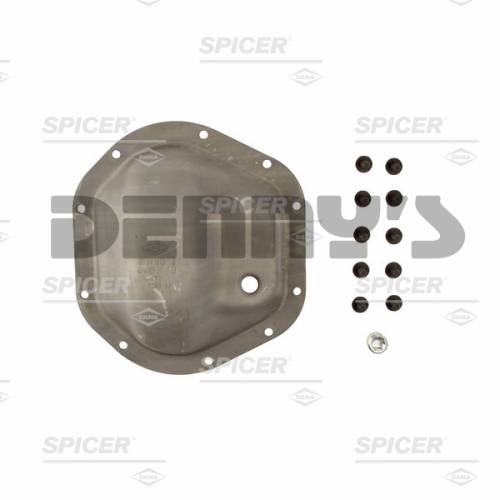

Diff Cover |
|
39 - 43 Kit |
708203 |
Track Lok Diff posi plate and disc kit |
| 14 |
707014X |
Diff Cover Kit |
|
|
|
|
| 15 |
RTV |
RTV Sealer |
|
40 |
***** |
Not sold separately...See 708203 |
| 16 |
43180 |
Plug for Diff Cover |
|
41 |
***** |
Not sold separately...See 708203 |
| 17 |
34279 |
Bolts for Diff Cover Quantity 10 |
|
42 |
***** |
Not sold separately...See 708203 |
| 18 |
***** |
Diff Brg Cap - not sold separately |
|
43 |
40835 |
Clip - Diff Clutch Retainer |
| 19 |
48632-1 |
Bolt for Diff Brg Cap |
|
44 |
13338-3 |
Thrust washer for Diff Small Spider Gear - Track Lok |
| 20 |
701149X |
Diff Bearing SPACER |
|
45 |
32808 |
Diff Small Spider Gear - Track Lok |
| |
|
|
|
45 |
2001899 |
Diff Sm Spider Gear Net Formed - Track Lok |
| 21 |
706032X |
Diff Bearing Kit Cup and Cone |
|
46 |
39194 |
Diff Cross Shaft - Track Lok |
| 22 |
701005X or 706086X
|
Diff Bearing Shim Kit |
|
47 |
35657 |
Diff Large Side Gear - Track Lok |
| |
|
|
|
47 |
2001901 |
Diff Lg Spider Gear Net Formed - Track Lok |
| 23 |
Multiple |
Diff Carrier Case |
|
48 |
84307 |
Actuator - Air Locker |
| 24 |
Multiple |
Ring Gear Bolts Qty 10 |
|
|
|
|
| 25 |
45872 |
Diff Small Spider Gear - Open Diff |
|
|
|
|
