DANA 60 FRONT - DODGE W200, W250, W300, W350

image/jpeg

DANA 60 SOLID FRONT AXLE

  • DODGE W200, W250, W300, W350
  • 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

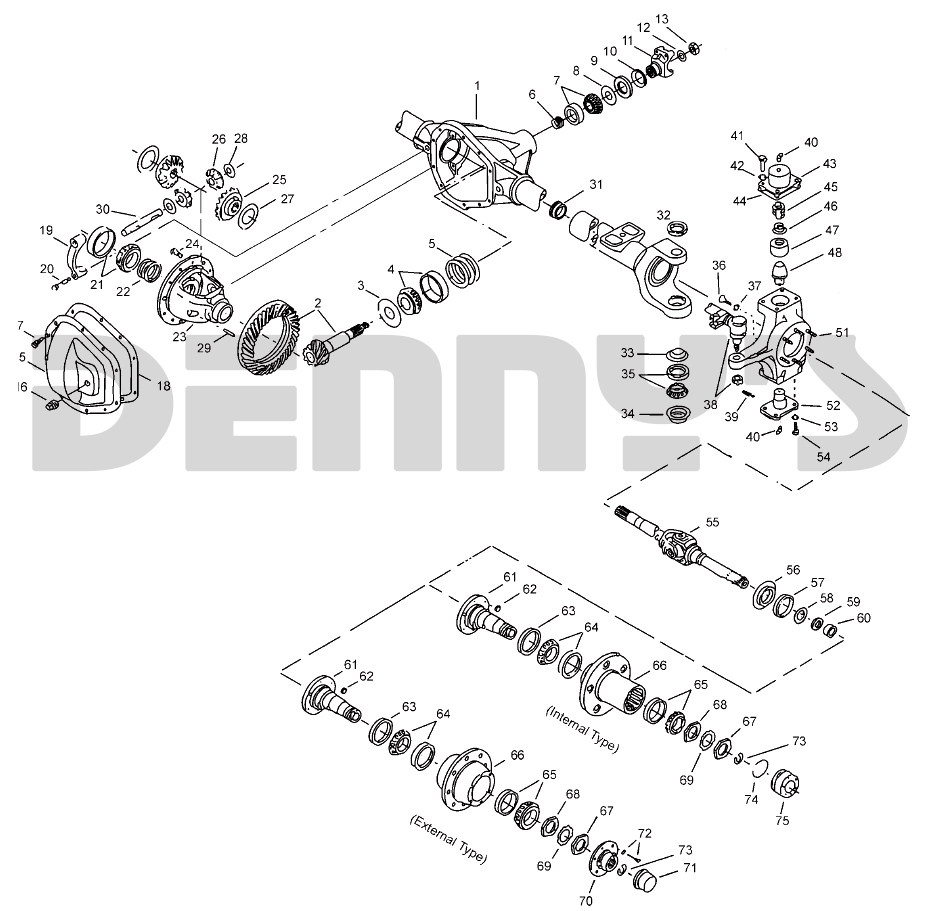

Doadge Dana 60 parts exploded view 1973 to 1993 at Denny's Driveshafts


DANA 60 FRONT - DODGE W200, W250, W300, W350

AXLE - OUTER

OUTER AXLE SNAP RING

522135 SNAP RING for 35 spline Outer Axle Shaft 3-82-871 - See number 73 CLICK HERE for More Details Part Number: 522135
Diagram Number:
73
$3.47
IN STOCK

AXLE - INNER

AXLE U-JOINTS

AXLE TUBE SEAL

BEARINGS and SHIMS

DIFF MASTER BEARING KIT

DT Components DRK-331MK Master Bearing Kit fits Dana 60 Front Dodge CLICK HERE for More Details Part Number: DRK-331MK
$199.95
$185.95
IN STOCK
FREE SHIPPING

DIFFERENTIAL BEARINGS

PINION BEARINGS

DANA SPICER 706045X DANA 60 OUTER PINION Bearing HM88510 and HM88542 - see number 7 CLICK HERE for More Details Part Number: 706045X
Diagram Number:
7
$32.30
$29.47
IN STOCK
DANA SPICER 706046X DANA 60 INNER PINION Bearing HM803110 and HM803146 - see number 4 CLICK HERE for More Details Part Number: 706046X
Diagram Number:
4
$41.95
$38.95
IN STOCK

DIFF SETUP SHIMS

DANA SPICER 708012 Differential Carrier SHIM KIT for Dana 60, 61 CLICK HERE for More Details Part Number: 708012
Diagram Number:
22
$54.53
$45.67
IN STOCK
DANA SPICER 708020 DIFF and PINION SHIM KIT for Dodge with Dana 60, 61 CLICK HERE for More Details Part Number: 708020
Diagram Number:
5,6,22
$68.25
$63.60
IN STOCK

WHEEL BEARINGS and SEALS

DANA SPICER 706411X INNER Wheel Bearing Kit includes 387A and 382A CLICK HERE for More Details Part Number: 706411X
Diagram Number:
64
$38.11
$31.92

SOLD OUT
Dana Spicer 48816 Front Wheel SEAL CLICK HERE for More Details Part Number: 48816
Diagram Number:
63
$8.95
IN STOCK

DIFF COVER

Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10
Diagram Number:
18
$4.94
IN STOCK
Dana Spicer 43180 Plug for Differential Cover CLICK HERE for More Details Part Number: 43180
Diagram Number:
16
$4.95
IN STOCK

DIFF PARTS

Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits Dodge Dana 60 Front differential case CLICK HERE for More Details Part Number: 706702X
Diagram Number:
25-30
$320.95
$299.95
IN STOCK
FREE SHIPPING

RING / PINION

GEAR KITS - 4.10 down Case

GEARS ONLY - 4.10 down Case

GEAR KITS - 4.56 up Case

GEARS ONLY - 4.56 up Case

RING GEAR BOLTS

PINION NUT and WASHER

PINION NUT - SPICER 30271 Fits DANA 60, 61 and 70 CLICK HERE for More Details Part Number: 30271
Diagram Number:
13
$0.95
IN STOCK
PINION WASHER - SPICER 30275 Fits DANA 60, 61 and 70 CLICK HERE for More Details Part Number: 30275
Diagram Number:
12
$0.45
IN STOCK

PINION SEAL

STEERING KNUCKLE PARTS

Dana 60 UPPER KING PIN

Dana 60 LOWER KING PIN

SPINDLE BEARINGS AND SEALS

Dana Spicer 37312 Thrust Washer for Dana 60 front spindle - see number 58 CLICK HERE for More Details Part Number: 37312
Diagram Number:
58
$1.44
IN STOCK
Dana Spicer 620062 Seal for Dana 60 front spindle - see number 59 CLICK HERE for More Details Part Number: 620062
Diagram Number:
59
$4.50
IN STOCK
Dana Spicer 620063 Spindle Bearing for Dana 60 front spindle - see number 60 CLICK HERE for More Details Part Number: 620063
Diagram Number:
60
$18.95
IN STOCK
Dana Spicer 37311 Rubber Seal for Dana 60 spindle - see number 57 CLICK HERE for More Details Part Number: 37311
Diagram Number:
57
$4.95
IN STOCK

SPINDLE NUT

HEX NUT STYLE

ROUND NUT STYLE
