DANA 50 FRONT - FORD F250, F350 1999 to 2002

DANA 50 FRONT AXLE PARTS

1999 to 2002 FORD 4x4 Super Duty F250, F350 DANA 50 Solid Front with Leaf Springs

2000 to 2005 Excursion 4x4 Trucks with DANA 50 Solid Front

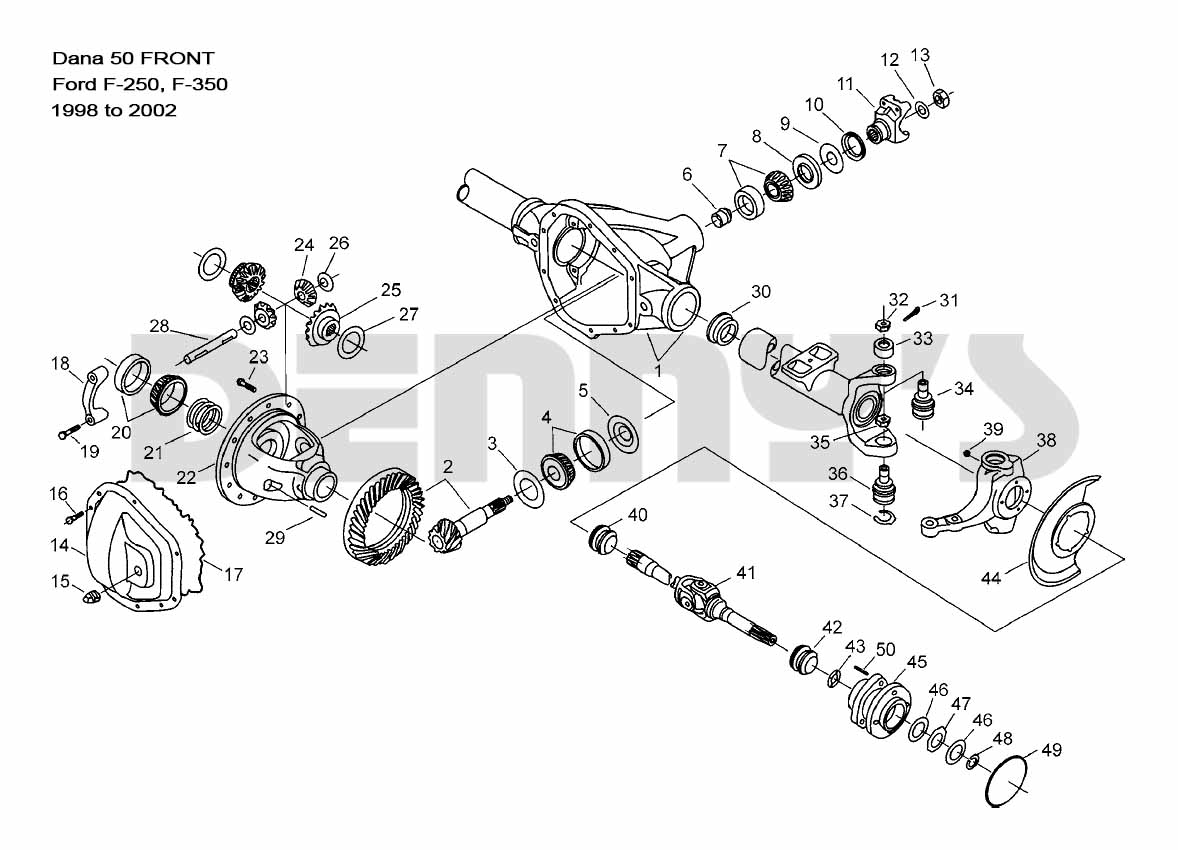

Diagram # Part # Description Diagram # Part # Description
 1  *****  Housing  26  620439  Thrustwasher
 2  MULTIPLE  Ring and Pinion  27  50718  Thrustwasher
 3  MULTIPLE  Shims  28  620414  Crosshaft Pin
 4  706015X  Inner Pinion Bearing  29  44810  Roll Pin
 5  47742  Baffle  30  MULTIPLE  Inner Tube Seal
 6  44896  Crush Collar  31,32, 34-37  700238-2X  Ball Joint Kit
 7  706030X  Outer Pinion Bearing  32  700238-2X  See Kit
 8  13575  Slinger  33  44507  Caster Camber Bushing
 9  MULTIPLE  Pinion Seal  34  700238-2X  See Kit
 10  47762  Seal  35  700238-2X  See Kit
 11  MULTIPLE  Pinion yoke  36  700238-2X  See Kit
 12  30186  Washer for pinion nut  37  700238-2X  See Kit
 13  30185  Pinion Nut  38  *****  Knuckle
 14  47707-1  Cover  39  48660  Nut
 15  43180  Cover Plug  40  50381  Seal on inner axle shaft
 16  47508-2  Cover Bolt  41  MULTIPLE  Shaft and Joint Assy
 17  38615  RTV  42  50491  Seal on outer stub axle
 18  *****  Cap  43  47766  Thrustwasher
 19  *****  Bolt  44  47758  Dust Shield
 20  700097  Diff Bearing kit  45  *****  Hub
 21  MULTIPLE  Shims  46  701166X  Thrustwasher KIT
 22  *****  Diff Case  47  701166X  Thrustwasher KIT
 23  45784  Ring Gear Bolts  48  620142  Snap Ring
 24  *****  Spider Gear  49  41784-2  O Ring
 25  *****  Spider Gear  50  47816  Stud




DANA 50 FRONT - FORD F250, F350 1999 to 2002

AXLE PARTS

AXLE - OUTER

AXLE - SNAP RING

AXLE U-JOINTS

O RING

THRUSTWASHER

BALL JOINTS

DIFF PARTS

GEAR SET

DIFFERENTIAL BEARINGS

PINION BEARINGS

DIFF COVER

PLUG

RING GEAR BOLTS

SHIM KIT

CROSS SHAFT, ROLL PIN

CRUSH COLLAR

SEALS

SEAL - OUTER AXLE

SEAL - INNER AXLE

TUBE SEAL

PINION SEAL

PINION YOKE

1350 series

PINION NUT and WASHER

Dana 50 Pinion WASHER CLICK HERE for More Details Part#: 30186
$0.22
IN STOCK
DANA SPICER 30185 Dana 50 Pinion NUT CLICK HERE for More Details Part#: 30185
$0.47
IN STOCK

DUST SHIELD for BRAKE ROTOR
