Neapco N3R-83-482 GM 3R Series Double Cardan CV Flange Yoke fits 1973 to 1979 GM CAR DRIVESHAFT CV with inside "C" clip u-joints

Part Number:
N3R-83-482

UPC:

083869000039

Your Cost $95.94

STATUS: IN STOCK

NEAPCO N3R-83-482

1973 to 1979 GM Car DRIVESHAFT CV with inside "C" clip u-joints

Double Cardan Assembly 3R Series to replace original equipment 1973 to 1979 Buick Olds Pontiac Chevrolet and Cadillac CV Flange Yoke. Use this to replace your worn out CV flange yoke.

Comes with ball socket centering parts already installed for easy installation.

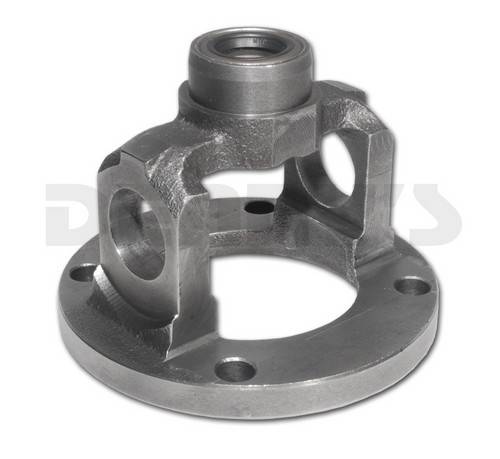

Neapco N3R-83-482 double cardan CV flange yoke for 1973 to 1979 GM Car driveshaft

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $95.94

NEAPCO N3R-83-482

3R Series Double Cardan CV Flange Yoke

Fits 1973 to 1979 GM Car Double Cardan CV DRIVESHAFT CV with inside "C" clip u-joints
- Buick, Olds, Pontiac, Chevrolet, and Cadillac
- 3R series original equipment universal joint would have been held in place by injected plastic

Bolt Circle.... 4.25 inches measured diagonally
Pilot Diameter... 3.125 inches
Requires Inside "C" Clip style 3R Series u-joints listed below
Centering ball socket parts are fully assembled and ready to install this flange yoke onto driveshaft

NOTE: If new centering ball is required see part number 9302CVB listed below

NOTE: DOES NOT FIT driveshafts earlier than 1973 where lockup surface was not machined to accept "C" clip

Prior to 1973 many GM double cardan driveshafts were non serviceable because the inside surface of the yokes where the new "C" clip would lock in the new u-joint was never machined flat. Easily identified by looking carefully to see if the inner lockup surfaces of the stud yoke, H-Yoke and flange yoke are rough and not machined flat.
You cannot connect new parts to an OEM stud yoke that was never machined to accept a "C" clip. If you have this then it would require a new stud yoke to be welded to the tube and a new cv head.

Neapco N3R-83-482 double cardan CV flange yoke for 1973 to 1979 GM Car driveshaft

You May Also Need These Parts to Complete the Job

4289-716 Set of 4 grade 8 CV Flange Bolts 7/16 - 14 coarse thread and 4 lock washers Part#: 4289-716 $5.45	Neapco 2-3011 Universal Joint 3R series Greaseable Part#: 2-3011 ~~$20.80~~ $18.89
Neapco 2-3011G Universal Joint 3R series non greaseable Part#: 2-3011G ~~$27.49~~ $24.68	SPICER 5-3147X 3R Series U-joint Greaseable Part#: 5-3147X $19.25
Dana Spicer 5-795X Universal Joint 3R Series Non greaseable Part#: 5-795X $27.27	NEAPCO N3R-26-057 Chevy and GMC 4X4 1978 to 1991 3R Series OEM Replacement Double Cardan CV center "H" Yoke for inside "C" clip u-joints Part#: N3R-26-057 ~~$68.32~~ $62.35

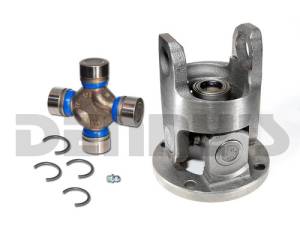

NEAPCO 2-9302 CV Ball Socket Repair Kit for driveshafts with inside "C" clip u-joints Fits 1973 and newer 3R Series Double Cardan CV driveshafts Part#: 2-9302 $36.95	6252906CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series with GREASABLE U-Joints Part#: 6252906CV $216.25

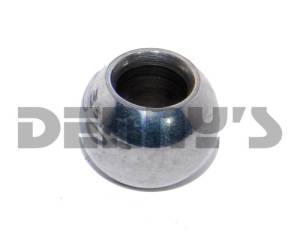

6653305CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series with NON GREASEABLE U-Joints Part#: 6653305CV $232.00	9302CVB Ball for Saginaw Double Cardan CV dimensions OD 0.906 and ID 0.457 Part#: 9302CVB $5.45
